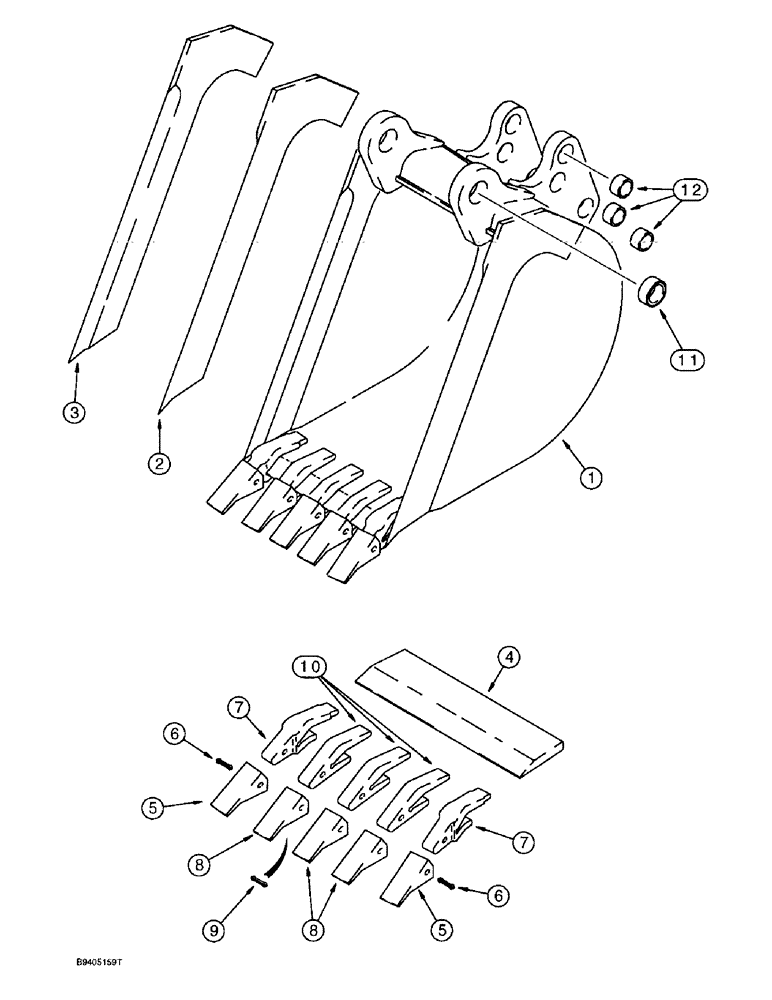

Запчасти Case 580SL (9-058) - UNIVERSAL BACKHOE BUCKET, 610 MM (24 INCH) AND 762 MM (30 INCH) WIDE HIGH CAPACITY TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

141232A1

BUCKET

ASSEMBLY - high capacity trenching, with 5 teeth, order from Machinery Price List, 610 mm (24 inch) wide, Includes: Ref. 1 - 12

1шт.

2

141234A1

EDGE, CUTTING

EDGE - cutting, right-hand side, bucket, 610 mm (24 inch) wide

1шт.

3

141233A1

EDGE, CUTTING

EDGE - cutting, left-hand side, bucket, 610 mm (24 inch) wide

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

EDGE - cutting, center, 610 mm (24 inch) wide bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, 610 mm (24 inch) wide bucket, Includes Ref 5 - 7

2шт.

5

D39093

TOOTH

POINT - tooth, outer corners, 610 mm (24 inch) wide bucket

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, Replaces D134686 pin, 610 mm (24") wide bucket

1шт.

7

D138157

SHANK

- tooth, outer corners, 610 mm (24 inch) wide bucket

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center (order Ref 8-10), 610 mm (24 inch) wide bucket

3шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center, 610 mm (24 inch) wide bucket

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, Replaces D134686 pin, 610 mm (24") wide bucket

1шт.

10

D48212

SHANK

- tooth, center, 610 mm (24 inch) wide bucket

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch, 610 mm (24 inch) wide bucket

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch, 610 mm (24 inch) wide bucket

6шт.

1

190267A1

BUCKET

ASSEMBLY - high capacity trenching, with 5 teeth, order from Machinery Price List, 762 mm (30 inch) wide, Includes: Ref. 1 - 12

1шт.

2

141234A1

EDGE, CUTTING

EDGE - cutting, right-hand side, bucket, 762 mm (30 inch) wide

1шт.

3

141233A1

EDGE, CUTTING

EDGE - cutting, left-hand side, bucket, 762 mm (30 inch) wide

1шт.

4

D145061

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) wide bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, 762 mm (30 inch) wide bucket, Includes Ref 5 - 7

2шт.

5

D39093

TOOTH

POINT - tooth, outer corners, 762 mm (30 inch) wide bucket

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, Replaces D134686 pin, 762 mm (30") wide bucket

1шт.

7

D138157

SHANK

- tooth, outer corners, 762 mm (30 inch) wide bucket

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center (order Ref 8-10), 762 mm (30 inch) wide bucket

3шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center, 762 mm (30 inch) wide bucket

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, Replaces D134686 pin, 762 mm (30") wide bucket

1шт.

10

D48212

SHANK

- tooth, center, 762 mm (30 inch) wide bucket

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch, 762 mm (30 inch) wide bucket

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch, 762 mm (30 inch) wide bucket

6шт.
