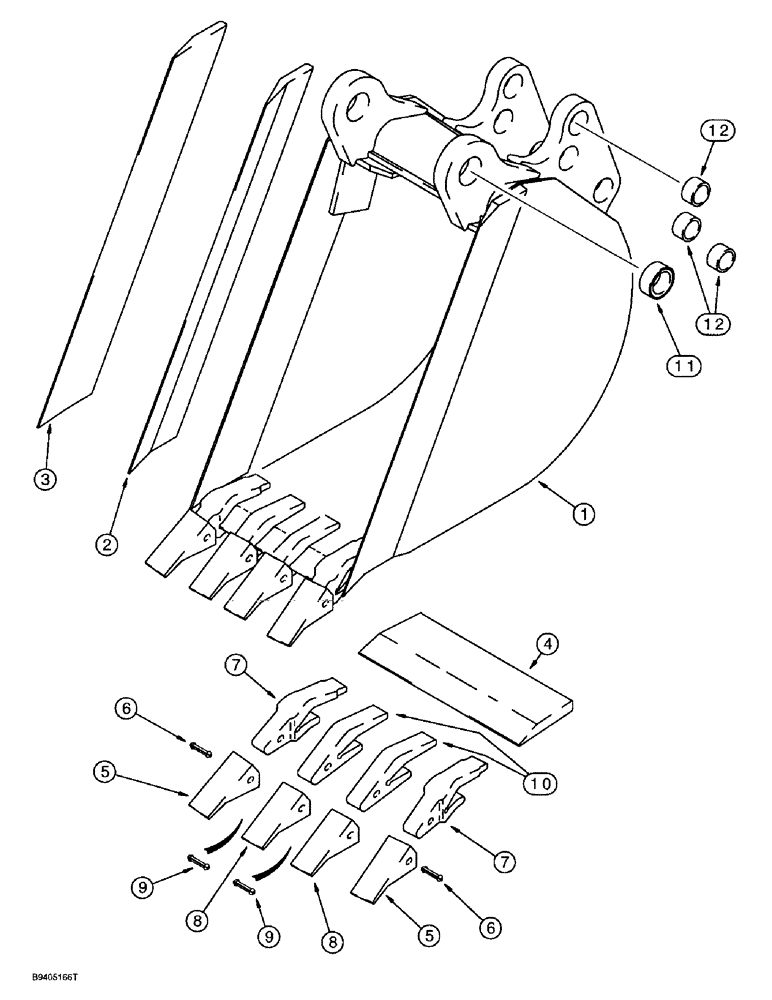

Запчасти Case 580SL (9-052) - UNIVERSAL BACKHOE BUCKETS, 406 MM (16 INCH) AND 457 MM (18 INCH) WIDE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D147247
BUCKET
ASSEMBLY - heavy duty trenching, with 3 teeth, order from Machinery Price List, 406 mm (16 inch) wide, not shown, Includes: Ref. 1 - 12
1шт.
2
D146421
EDGE, CUTTING
EDGE - cutting, right-hand side, bucket, 406 MM (16 inch) wide trenching bucket and teeth - heavy duty
1шт.
3
D146420
EDGE, CUTTING
EDGE - cutting, left-hand side, bucket, 406 MM (16 inch) wide trenching bucket and teeth - heavy duty
1шт.
4
D147249
EDGE
- cutting, center, 406 mm (16 inch) wide trenching bucket and teeth - heavy duty
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy - outer corners, 406 MM (16 inch) wide trenching bucket - heavy duty, Includes Ref 5 - 7
2шт.
5
D39093
TOOTH
POINT - tooth, outer corners, 406 MM (16 inch) wide trenching bucket and teeth - heavy duty
1шт.
6
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin flex, Outer point and shank, Replaces D134686 pin, 406 mm (16") wide trenching bucket and teeth - heavy duty
1шт.
7
D138157
SHANK
- tooth, outer corners, 406 MM (16 inch) wide trenching bucket and teeth - heavy duty
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center (order Ref 8-10), 406 MM (16 inch) wide trenching bucket - heavy duty
1шт.
8
D51750
BUCKET TOOTH POINT
POINT - tooth, center, 406 MM (16 inch) wide trenching bucket and teeth - heavy duty
1шт.
9
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin flex, Center point and shank, Replaces D134686 pin, 406 mm (16") wide trenching bucket and teeth - heavy duty
1шт.
10
D48212
SHANK
- tooth, center, 406 MM (16 inch) wide trenching bucket and teeth - heavy duty
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
- 1-3/4 x 2-1/4 x 1-1/4 inch, 406 MM (16 inch) wide trenching bucket and teeth - heavy duty
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- 1-1/2 x 1-7/8 x 1-1/4 inch, 406 MM (16 inch) wide trenching bucket and teeth - heavy duty
6шт.
1
D146588
BUCKET
ASSEMBLY - heavy duty trenching, with 4 teeth, order from Machinery Price List, 457 mm (18 inch) wide, Includes: Ref. 1 - 12
1шт.
2
D146421
EDGE, CUTTING
EDGE - cutting, right-hand side, bucket, 457 MM (18 inch) wide trenching bucket and teeth - heavy duty
1шт.
3
D146420
EDGE, CUTTING
EDGE - cutting, left-hand side, bucket, 457 MM (18 inch) wide trenching bucket and teeth - heavy duty
1шт.
4
D145060
EDGE, CUTTING,444.6mm W x 165.1mm L
EDGE - cutting, center, 457 mm (18 inch) wide trenching bucket and teeth - heavy duty
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy - outer corners, 457 MM (18 inch) wide trenching bucket - heavy duty, Includes Ref 5 - 7
2шт.
5
D39093
TOOTH
POINT - tooth, outer corners, 457 MM (18 inch) wide trenching bucket and teeth - heavy duty
1шт.
6
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin flex, Outer point and shank, Replaces D134686 pin, 457 mm (18") wide trenching bucket and teeth - heavy duty
1шт.
7
D138157
SHANK
- tooth, outer corners, 457 MM (18 inch) wide trenching bucket and teeth - heavy duty
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center (order Ref 8-10), 457 MM (18 inch) wide trenching bucket - heavy duty
2шт.
8
D51750
BUCKET TOOTH POINT
POINT - tooth, center, 457 MM (18 inch) wide trenching bucket and teeth - heavy duty
1шт.
9
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin flex, Center point and shank, Replaces D134686 pin, 457 mm (18") wide trenching bucket and teeth - heavy duty
1шт.
10
D48212
SHANK
- tooth, center, 457 MM (18 inch) wide trenching bucket and teeth - heavy duty
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
- 1-3/4 x 2-1/4 x 1-1/4 inch, 457 MM (18 inch) wide trenching bucket and teeth - heavy duty
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- 1-1/2 x 1-7/8 x 1-1/4 inch, 457 MM (18 inch) wide trenching bucket and teeth - heavy duty
6шт.
Выбрано товаров: 28
