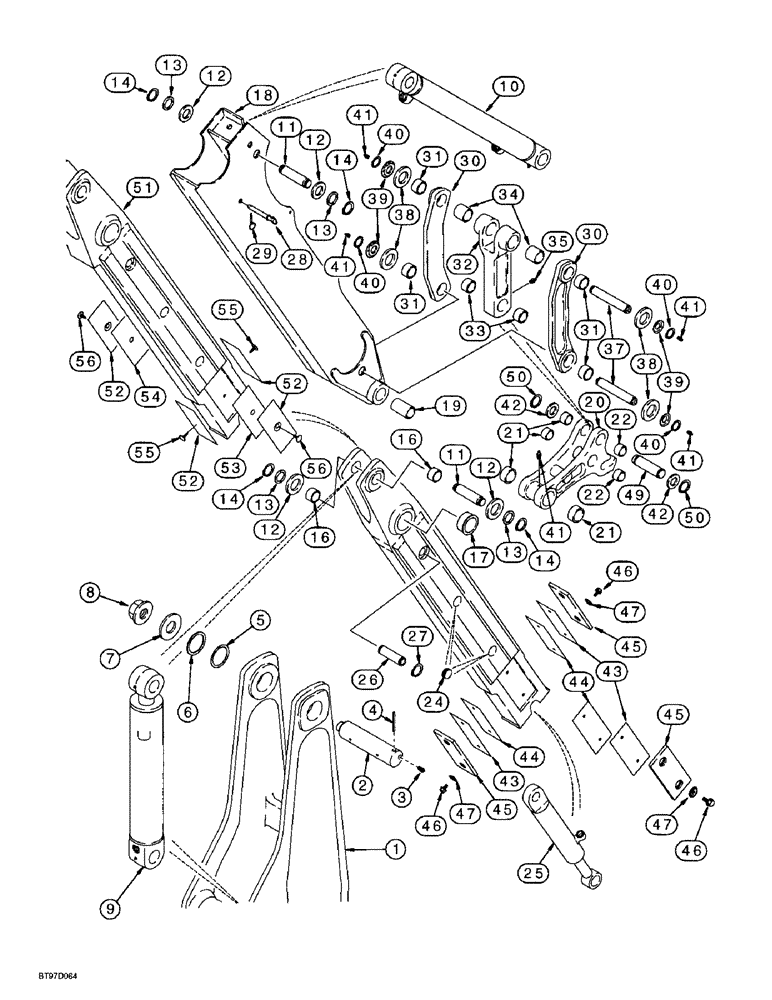

Запчасти Case 580SL (9-046) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM - backhoe, see Figure 9-036 for boom and bushings

1шт.

2

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

4

435-51652

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

Pin, Grooved, , center groove 1/2" x 3 1/4", Type E, Hardened

1шт.

5

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), Boom to dipper 1.57mm Thk

2шт.

6

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD) 3.05mm Thk

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

- flat, hardened, special

1шт.

8

181042A1

FLANGE NUT

- hex flange, special, 1-3/4 inch NF

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - 5 (127) ID x 23 inch (583 mm) stroke, dipper, for correct assembly and components, see Figure 8-162 or 8-164

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - 80 (3-1/2) ID x 872 mm (34-5/16 inch) stroke, bucket, parts list Figure 8-166 or 8-168

1шт.

11

D141666

PIN,50mm OD x 199mm L

- dipper and bucket, Serial Range: cylinder-dippers

2шт.

12

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

1шт.

13

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

14

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

D149018

DIPPER

ASSEMBLY - extension, inner, without grease seals at dipper pivot, uses wear plates (Ref. 43-45) with two mounting holes, no longer available, order Ref. 51-56, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

DIPPER - inner

1шт.

16

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

- 50 x 34 mm long, dipper cylinder rod end pivot

2шт.

17

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

- 70 ID x 36 mm long, to dipper pivot

2шт.

18

102649A1

BOOM

HOUSING - dipper, outer

1шт.

19

307186A1

BUSHING,44.6mm ID x 57.15mm OD x 104mm L

- 45 ID x 194 mm long, bucket coupler pivot, old P/N D127168 is 94 mm long

2шт.

The new longer bushing won't let the bushing work out of the hole.

1шт.

134437A1

COUPLING

COUPLER ASSEMBLY - bucket, used with Ref 30 and 32 links, if used, see Figure 9-042, Ref. 37-44 for optional coupler and bucket links, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

COUPLER - backhoe bucket

1шт.

21

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

- 30 mm long, special, at dipper

2шт.

22

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long, at bucket link

4шт.

24

D133865

PLUG

- plastic

4шт.

25

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

Assy, 76 (3) ID x 1068 mm (42 inch) stroke, Dipper extension, Parts list Figure 8-170

1шт.

25

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

25

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

26

175815A1

PIN

- dipper extension cylinder closed end, replaces D129892 pin

1шт.

27

800-44040

SNAP RING,M40, Ext

RING - external retaining, No. 40, pin retaining

2шт.

28

D140247

LOCK PIN,25.4mm OD x 232.6mm L

PIN, LOCK, Used at dipper extension cylinder closed end when transporting only, Used with item 29 lock pin

1шт.

29

A33509

PIN,11.18mm OD

- lock, 7/16 inch diameter

1шт.

30

D150608

PITMAN

LINK - 33 mm wide bushing, bucket guide, used with 134437A1 coupler, if used, Includes: Ref. 31, see Figure 9-042, Ref. 37-44 for optional coupler and bucket links

2шт.

31

D150122

BUSHING

- 50 x 60 x 33 mm

2шт.

32

D150080

PITMAN

LINK - bucket dump, with two bushings at forked end, used with 134437A1 coupler, if used, Includes: Ref. 33 and 34, see Figure 9-042, Ref. 37-44 for optional coupler and bucket links

1шт.

33

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long

2шт.

34

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

- 54 mm (2-1/8 inch) long

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

37

D141142

PIN,50mm OD x 306mm L

306 mm long, Bucket cylinder rod end to links and, Serial Range: links-dipper

2шт.

38

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 3/32 inch

4шт.

39

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

- 1-13/16 x 3 x 1/8 inch

4шт.

40

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

5шт.

42

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

43

D140886

SHIM,116mm OD x 1.6mm Thk

SHIM - 1.6 mm thick, wear plate, if used

1шт.

44

D140885

BLOCK

SHIM - 0.8 mm thick, wear plate, if used

1шт.

45

D141998

LARGE PLATE

PLATE - wear, plastic, outer, if used

4шт.

46

409-7612

BOLT,3/8"-16 x 1.09" OAL

If used Hex Flg, 3/8"-16 x 3/4", Serr

4шт.

47

D143167

WASHER

- special, if used

8шт.

48

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

- hex serrated flange, 3/8 NC x 1/2 inch, replaces D143961 hex flange self-locking bolt

4шт.

49

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler

1шт.

50

103-16175

SNAP RING,#175, Ext

Ring, Snap, , If used #175, Ext

2шт.

244536A1

DIPPER

ASSEMBLY - extension, inner, uses wear plates (Ref 52-54) with one mounting hole, if used, Includes: Ref. 51

1шт.

51

NSS

NOT SOLD SEPARAT

DIPPER - inner, includes bushings listed below

1шт.

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

- 50 x 34 mm long, dipper cylinder rod end pivot, not shown, see Ref. 16 bushing for location

2шт.

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

- 70 ID x 36 mm long, to dipper pivot, not shown, see Ref. 17 bushing for location

2шт.

52

132716A1

BLOCK

PLATE - wear, outer

4шт.

53

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

- 0.8 mm thick, wear plate

1шт.

54

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

- 1.6 mm thick, wear plate

1шт.

55

183443A1

PIN,6.6mm OD x 38.5mm L

Pine tree, long

2шт.

56

183509A1

PIN,8.3mm OD x 22mm L

Pine tree, short

2шт.

495-81230

WASHER,2.31" ID x 3.5" OD x 0.13" Thk

S welded to the inside of Refs. 18 and 18A at the coupler end

2шт.
