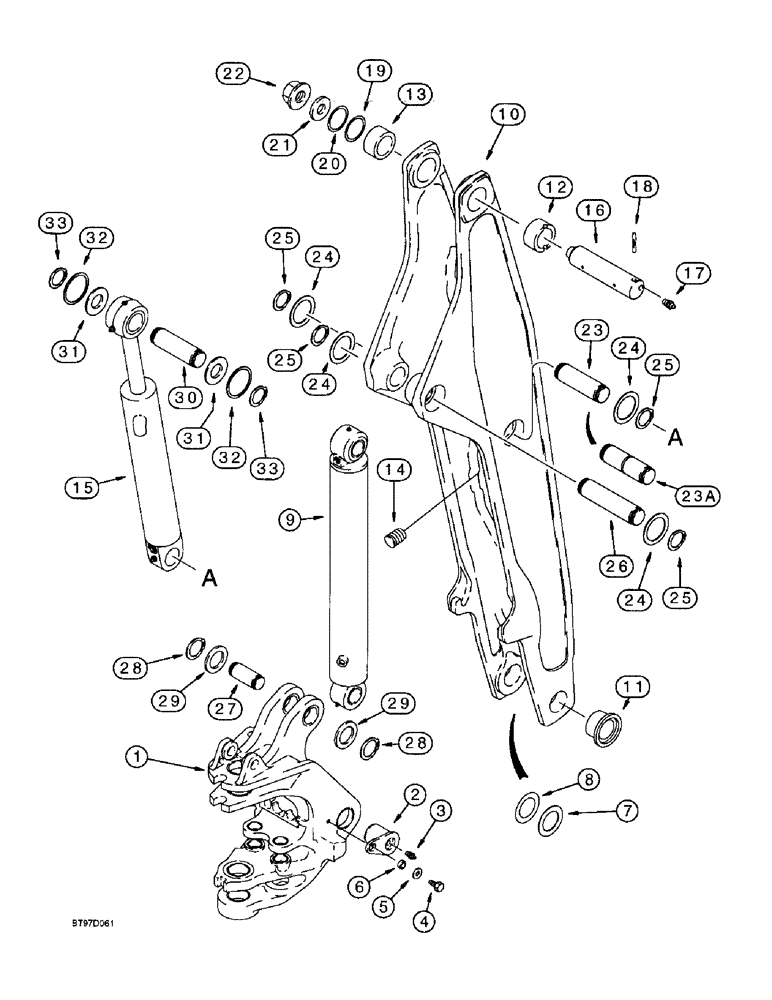

Запчасти Case 580SL (9-036) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWING TOWER - backhoe, with inner ears, see Figure 9-034 for swing tower and bushings

1шт.

2

121779A1

PIN,70mm OD x 98mm L

- swing, Serial Range: tower-boom

2шт.

Ref. Item 2 - If looking for a 2 piece pin and bracket the part nos are: pin is 250663a1 and the bracket is 303646a1

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

4

604-20040

BOLT,Hex, M20 x 40mm, Cl 8.8

- hex, self-locking, 20-2.5 x 40 mm, replaces 614-20040 used on some models

2шт.

5

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

- flat, 13/16 x 1-3/4 x 7/32 inch, hardened

2шт.

6

122897A1

SPACER,21mm ID x 31.75mm OD x 12mm L

- 21 x 32 x 12 mm

2шт.

7

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

- special, boom to swing tower

1шт.

8

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

SHIM - 71 (2-13/16) ID x 114 mm (4-1/2 inch)

1шт.

9

144200A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 842 mm (33-5/32 inch) stroke, boom, parts list Figure 8-160

1шт.

10

122284A1

BOOM

- backhoe, service replacement, Includes: Ref. 11 - 14

1шт.

11

D151071

BUSHING,70.19mm ID x 94mm OD x 38mm L

- 70 (2-3/4) ID x 34 mm (1-5/16 inch) long

2шт.

12

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

- 70 (2-3/4) ID x 44 mm (1-3/4 inch) long, with slot for groove pin, right-hand side of boom at boom to dipper pivot

1шт.

13

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

- 70 (2-3/4) ID x 44 mm (1-3/4 inch) long, without slot for groove pin, left-hand side of boom at boom to dipper pivot

1шт.

14

D120450

PLUG

- plastic

7шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - 5 (127) ID x 23 inch (583 mm) stroke, dipper, for correct assembly and components, see Figure 8-162 or 8-164

1шт.

16

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

18

435-51652

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

Pin, Grooved, , center groove 1/2" x 3 1/4", Type E, Hardened

1шт.

19

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), Boom to dipper 1.57mm Thk

1шт.

20

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Boom to dipper 3.05mm Thk

1шт.

21

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

- flat, hardened, special

1шт.

22

181042A1

FLANGE NUT

- hex flange, special, 1-3/4 inch NF

1шт.

23

123167A1

PIN

- dipper cylinder to boom, without center lubrication groove, used with 126151A1 or 183795A1 dipper cylinder, if used

1шт.

23a

123167A2

PIN,60mm OD x 240mm L

- dipper cylinder to boom, with center lubrication groove, used with 183795A2 dipper cylinder, if used

1шт.

24

H433285

SPACER

SHIM - 57 x 76 x 1.5 mm

4шт.

25

800-4155

SNAP RING,55mm ID

RING - external retaining, No. 55, pin retaining

4шт.

26

123168A1

PIN

- boom cylinder closed, Serial Range: end-boom

1шт.

27

190313A1

PIN,60mm OD x 159.6mm L

Boom cylinder rod end to swing tower

1шт.

28

103-11237

SNAP RING,#237, Ext

Ring, Snap, , Pin #237, Ext

2шт.

29

123318A1

WASHER,62mm ID x 86mm OD x 1.7mm Thk

- special, 62 mm ID

1шт.

30

D138022

PIN,50mm OD x 240mm L

- Dipper cylinder rod, Serial Range: end-dipper

1шт.

31

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

1шт.

32

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

33

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

2шт.
