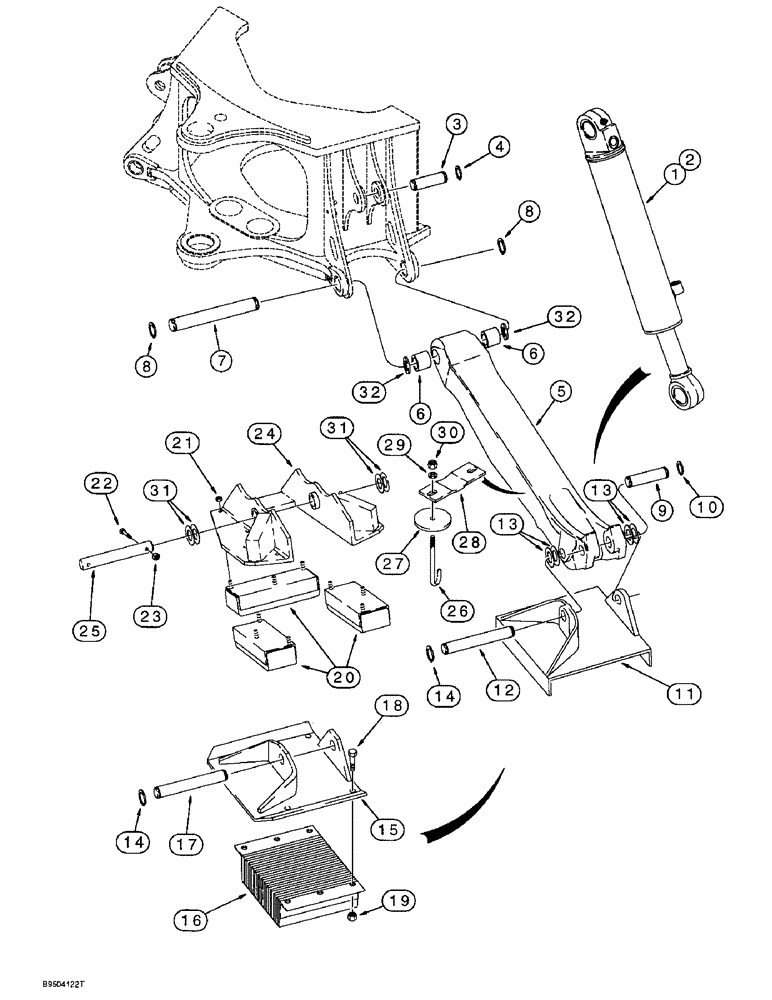

Запчасти Case 580SL (9-032) - BACKHOE STABILIZERS, PLATES AND PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - 108 (4-1/4) ID x 553 mm (21-3/4 inch) stroke, stabilizer, right-hand, parts list Figure 8-152 or 8-154

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - 108 (4-1/4) ID x 553 mm (21-3/4 inch) stroke, stabilizer, left-hand, parts list Figure 8-152 or 8-154

1шт.

3

D38907

PIN,1.75" OD x 5 5/16 L

- stabilizer cylinder frame

2шт.

4

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

5

D133428

STABILIZER

LEG - stabilizer, Includes: Ref. 6

2шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- leg to frame

2шт.

7

121665A1

PIN,44.4mm OD x 308mm L

Stabilizer leg frame

2шт.

8

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

9

D26002

PIN,38.1mm OD x 187.32mm L

- stabilizer cylinder leg

2шт.

10

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

11

D88427

PLATE

- stabilizer, cleated, if used

2шт.

12

D28648

PIN,1.5" OD x 10 7/16" L

- D88427 stabilizer plate leg

2шт.

13

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- flat, special, 1-17/32 x 2-23/64 x 1/8 inch, used as a spacer

1шт.

14

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

15

D142519

SHOE (ASSY)

PLATE - stabilizer, street or cemetery, if used

2шт.

16

D61368

PAD

Rubber, if used

2шт.

17

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN - 9-3/8 inch (238 mm) long, D142519 plate leg

2шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

19

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

8шт.

186405A1

SKID/SHOE

PLATE ASSEMBLY - stabilizer flip over, if used, Includes: Ref. 20 - 32

2шт.

20

D142314

SKID/SHOE

PAD rubber - Use with 189955A1

3шт.

20

395753A2

PAD, RUBBER

PAD rubber - Use with 386000A2

2шт.

21

231-4247

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

9шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

23

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

24

189955A1

SOLE

PLATE stabilizer, flip over (Uses 3 Rubber Pads)

1шт.

24

386000A2

PAD

PLATE stabilizer, flip over (Uses 2 Rubber Pads)

1шт.

25

D149033

PIN,38.1mm OD x 323.5mm L

323.5 mm (12-3/4 inch) long, Plate to stabilizer leg

1шт.

26

190035A1

BOLT,J, 3/8" - 16 x 6", Gr 2

BOLT - J-type

2шт.

27

190967A1

LARGE PLATE

PAD - rubber, round

2шт.

28

190036A1

LARGE PLATE

PLATE - steel

1шт.

29

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

30

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

31

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- flat, special, 1-17/32 x 2-23/64 x 1/8 inch, used as a spacer

1шт.

32

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 3/32 inch

1шт.
