(9-028) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS , USED WITH 180378A1 CONTROL TOWER SUPPORT

Запчасти Case 580SL (9-028) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS , USED WITH 180378A1 CONTROL TOWER SUPPORT (09) - CHASSIS/ATTACHMENTS

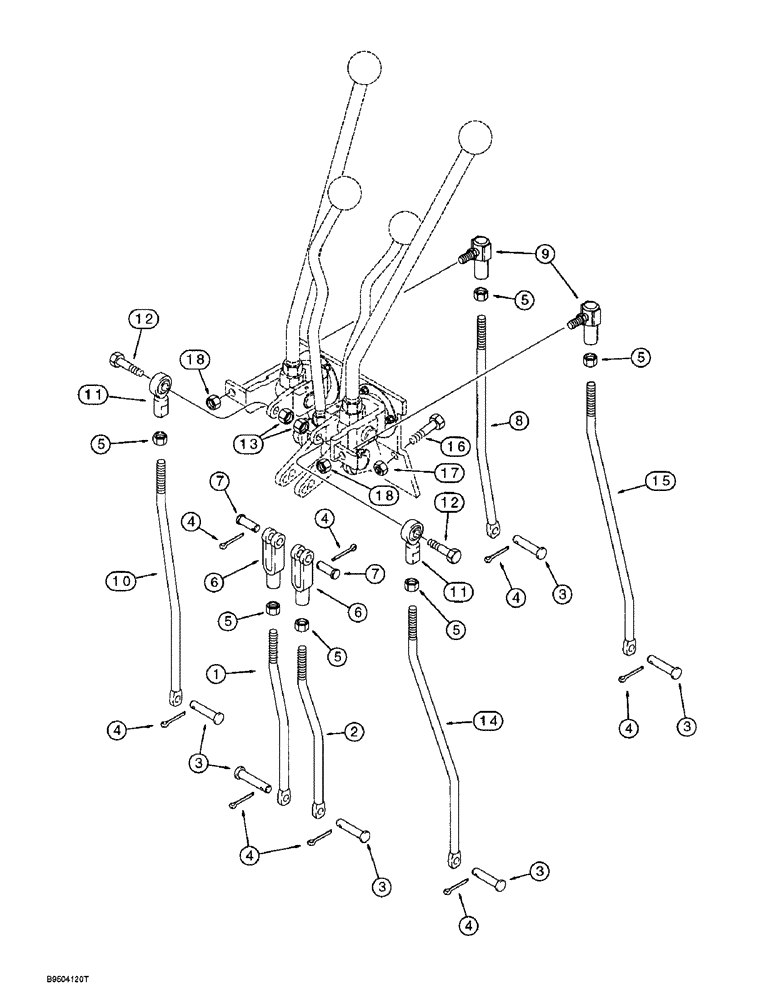

Схема запчастей Case 580SL - (9-028) - BACKHOE CONTROLS WITH HAND SWING, LOWER CONTROL LEVERS , USED WITH 180378A1 CONTROL TOWER SUPPORT (09) - CHASSIS/ATTACHMENTS
5
1
11
9
12
12
3
17
5
18
4
6
3
2
14
5
6
4
3
8
5
5
7
7
11
4
3
15
4
4
10
16
18
3
5
13
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

115744A1

ROD

- stabilizer, right-hand stabilizer

1шт.

2

115743A1

ROD

- stabilizer, left-hand stabilizer

1шт.

3

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened, Serial Range: rods-valve

6шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

8шт.

5

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

6шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

2шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special

2шт.

8

125779A1

ROD

- bucket control

1шт.

9

D149295

BALL JOINT,3/8"

JOINT - ball, control rod

2шт.

10

182636A1

ROD

- dipper control

1шт.

11

D136773

BALL JOINT

JOINT - ball, 3/8 inch NF, control rods

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

182635A1

ROD

- boom control

1шт.

15

125776A1

ROD

- swing control

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

18

231-2446

NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8 inch NF

2шт.
