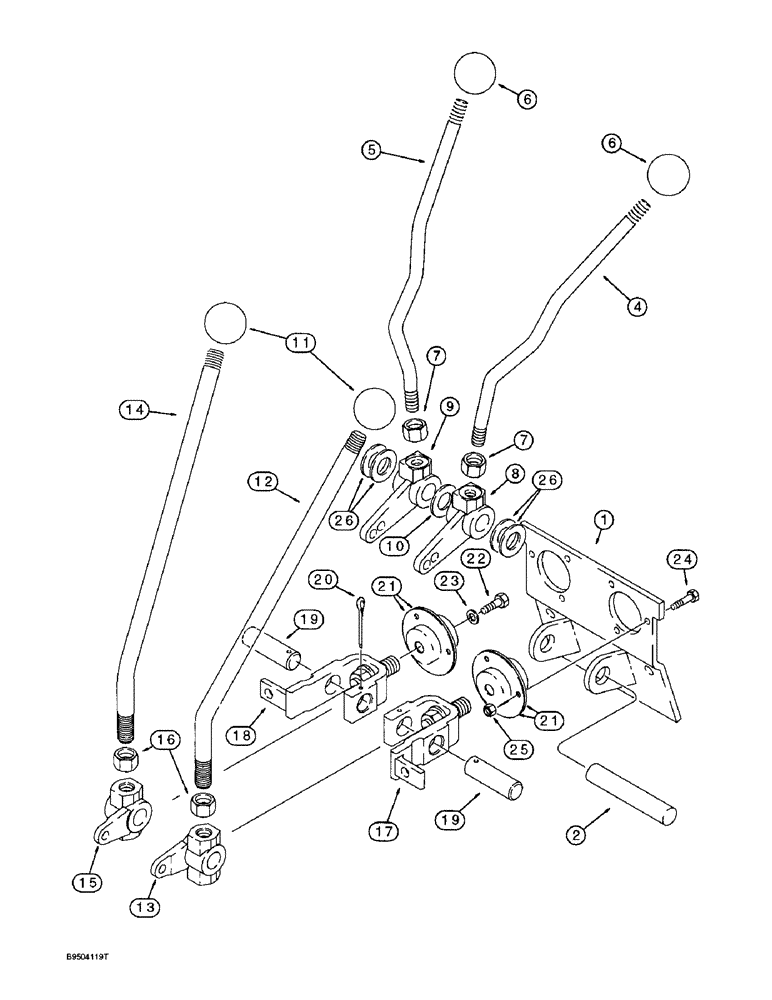

Запчасти Case 580SL (9-026) - BACKHOE CONTROLS WITH HAND SWING, UPPER CONTROL LEVERS WITH NON-EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

108864A1

SUPPORT

PLATE - mounting, bearing and bellcrank

1шт.

2

D148947

PIN,19.09mm OD x 179mm L

SHAFT - pivot, stabilizer lever

1шт.

4

109131A1

LEVER

- stabilizer, left-hand

1шт.

5

109132A1

LEVER

- stabilizer, right-hand

1шт.

6

D59912

KNOB

- lever, stabilizer levers

2шт.

7

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

8

108924A1

LEVER

BELLCRANK - left-hand stabilizer lever

1шт.

9

108923A1

LEVER

BELLCRANK - right-hand stabilizer lever

1шт.

10

495-11081

WASHER,3/4", SAE

1шт.

11

D39118

KNOB

- control lever

2шт.

12

125113A1

LEVER

- control, boom and swing

1шт.

13

106989A1

LEVER

BELLCRANK - left-hand boom and swing lever

1шт.

14

125113A1

LEVER

- control, bucket and dipper

1шт.

15

106990A1

LEVER

BELLCRANK - right-hand bucket and dipper lever

1шт.

16

425-1110

NUT,5/8"-18, G5

2шт.

17

178006A1

LEVER

BELLCRANK - boom and swing control lever

1шт.

18

178004A1

LEVER

BELLCRANK - bucket and dipper control lever

1шт.

19

102765A1

PIN,19.5mm OD x 63mm L

Bellcrank

2шт.

20

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

21

112380A1

BEARING ASSY

Retainer

4шт.

22

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

23

396-41028

WASHER,.281" x 7/8" x .098", HDN

- flat, 9/32 x 7/8 x 3/32 inch, hardened

2шт.

24

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

6шт.

25

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

26

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - special, hardened

1шт.
