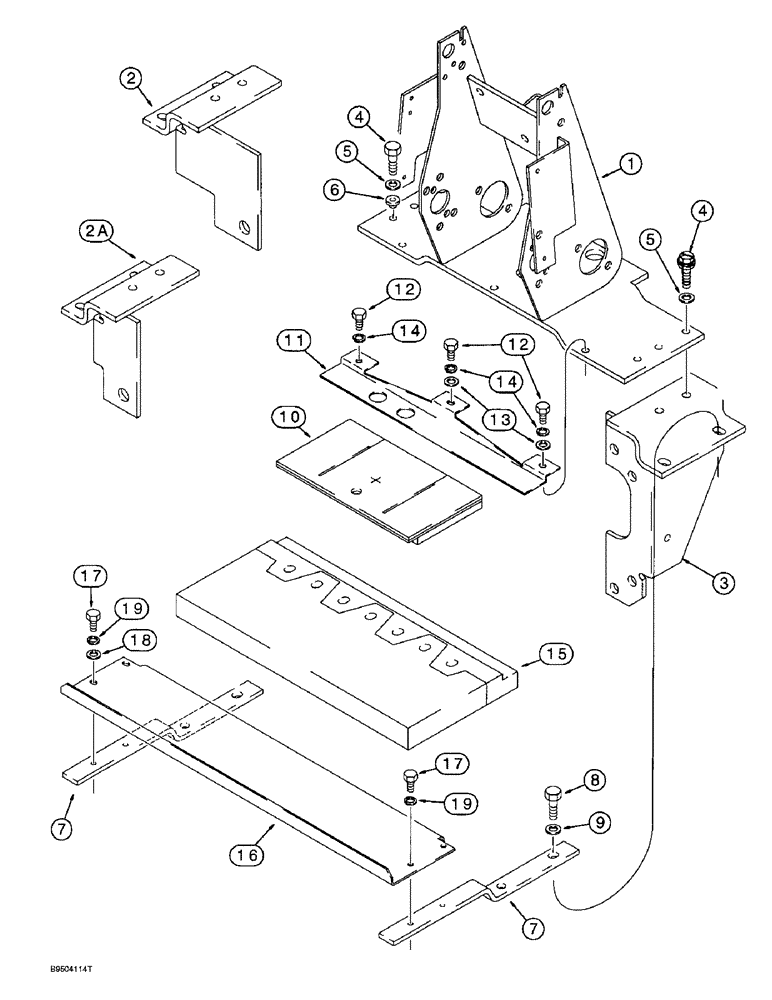

Запчасти Case 580SL (9-019A) - BACKHOE CONTROL TOWER SUPPORT AND SEALS (09) - CHASSIS/ATTACHMENTS

1

185975A1

SUPPORT

- backhoe control mounting, with 3 mounting holes in base for Ref. 11 seal support bracket, also see Ref. 1 support on Figure 9-018

1шт.

Used with control rods on Figures 9-023A, 9-024, 9-026, 9-029A and 9-030. See Figure 9-018, Ref. 5 through 18 for console covers and control lever boots.

1шт.

2

180376A1

SUPPORT

BRACKET - mounting, left-hand, 6 spool valve

1шт.

2a

180402A1

SUPPORT

BRACKET - mounting, left-hand, 7 spool valve

1шт.

3

121519A1

SUPPORT

BRACKET - mounting, right-hand, valve mounting

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10-1.5 x 35 mm

4шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

6

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

Mount - Console

2шт.

7

184696A1

SUPPORT

BRACKET - seal support, front

2шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

10

182295A1

SUPPORT

SEAL - foam, control tower

1шт.

11

184695A1

SUPPORT

BRACKET - seal support, front

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8-1.25 x 20 mm

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

15

190721A1

BAFFLE

SEAL - noise reduction, backhoe valve rods

1шт.

16

184694A1

CHANNEL

BRACKET - seal support, rear

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.
