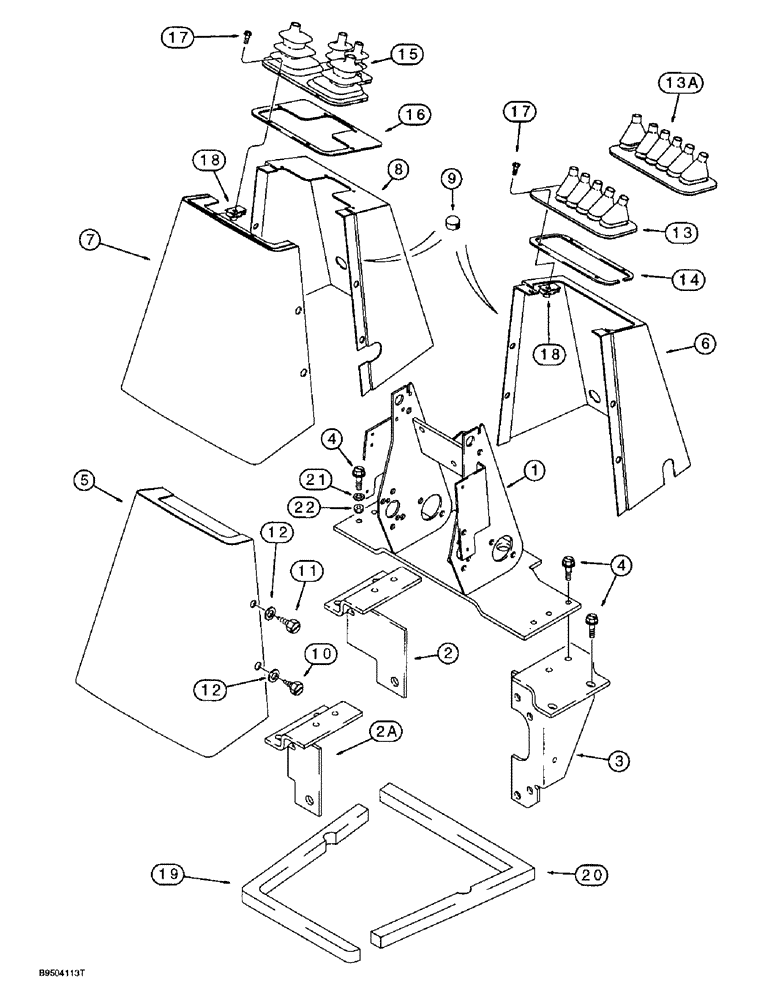

Запчасти Case 580SL (9-018) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

180378A1

BRACKET

SUPPORT - backhoe control mounting, without 3 mounting holes in base for a seal support bracket, see Ref.1 support and Ref. 11 seal support bracket on Figure 9-019A

1шт.

Used with control rods on Figures 9-020, 9-024, 9-026, 9-028 and 9-030.

1шт.

2

180376A1

SUPPORT

BRACKET - mounting, left-hand, 6 spool valve

1шт.

2a

180402A1

SUPPORT

BRACKET - mounting, left-hand, 7 spool valve

1шт.

3

121519A1

SUPPORT

BRACKET - mounting, right-hand, valve mounting

1шт.

4

183586A1

BOLT

BOLT - special, includes washer, 10 x 35 mm

8шт.

5

128403A1

REAR COVER

COVER - rear, console, used on all models with foot swing

1шт.

6

130480A1

COVER

- console, front, used on all models with foot swing

1шт.

7

128401A1

COVER

- console, rear, used on all models with hand swing

1шт.

8

130479A1

COVER

- front, console, used on all models with hand swing

1шт.

9

353-411

PLUG,Dome, 1.000" hole, Nylon

1 used with 130479A1 console - 2 used with 130480A1 console cover Dome, 1.000" hole, Nylon

1-2шт.

10

281-1878

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch, lower

2шт.

11

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, upper

3шт.

12

195-140

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

5шт.

13

D149866

BOOT

- used with 130480A1 console cover with 5 control levers

1шт.

13a

D149867

BOOT

- used with 130480A1 console cover with 6 control levers

1шт.

14

136822A1

RETAINER

- boot, used with items 13 and 13A

1шт.

15

D149868

BOOT

Used with 130479A1 console cover with 4 control levers

1шт.

16

136824A1

LARGE PLATE

RETAINER - boot, used with item 15 only

1шт.

17

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

(Replaces 140-107 3/4" long screw), (4) used with 136822A1 retainer, (6) used with 136824A1 retainer Cross Pan Hd, #10-24 x 1/2"

4-6шт.

18

131-861

SPRING NUT,Tinn, U, #10-24

(4) used with 136822A1 retainer, (6) used with 136824A1 retainer Tinn, U, #10-24

4-6шт.

19

104540A1

SEALING STRIP,25mm W x 641mm L x 25.4mm Thk

- foam, adhesive-backed, control mounting support, if used

1шт.

20

104541A1

SEALING RING

- foam, adhesive-backed, control mounting support, if used

1шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

2шт.

22

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

Mount - Console

2шт.
