Запчасти Case 580SL (2-03A) - RADIATOR, FAN AND MOUNTING PARTS, USED WITH 235811A1 HEAVY DUTY OIL COOLER (02) - ENGINE

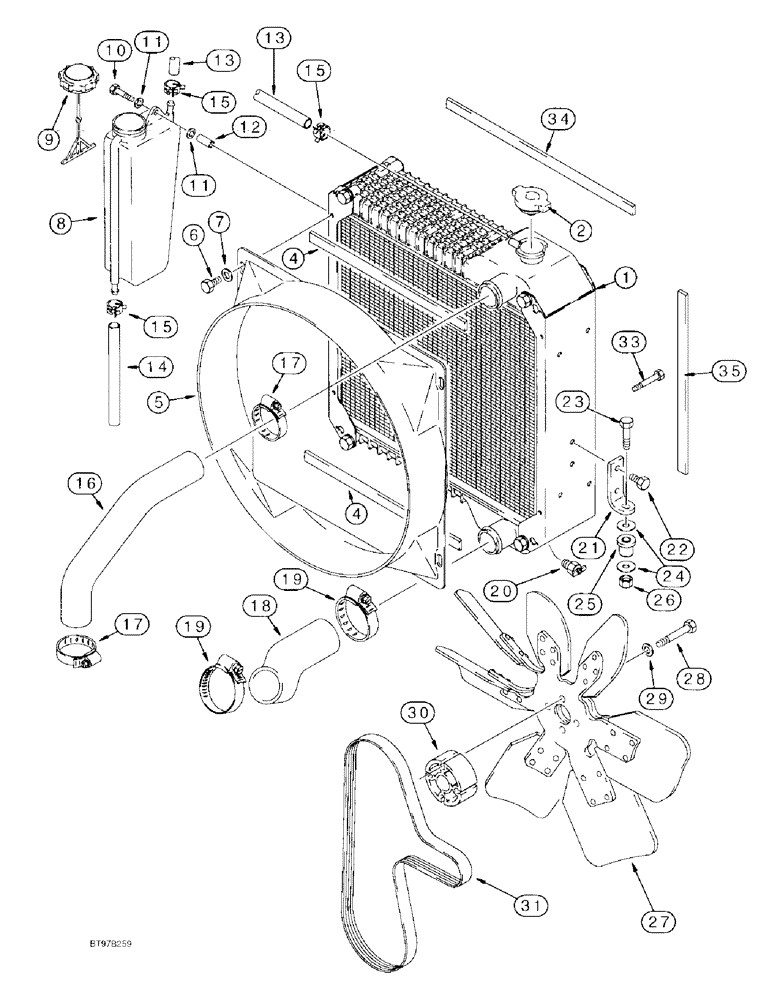

Схема запчастей Case 580SL - (2-03A) - RADIATOR, FAN AND MOUNTING PARTS, USED WITH 235811A1 HEAVY DUTY OIL COOLER (02) - ENGINE
27
22
13
17
21
16
6
17
33
29
31
25
18
34
5
8
4
19
1
15
7
2
28
9
19
15
10
11
14
24
11
4
15
35
23
26
12
13
30
20

Артикул

Название

Примечание

Количество

1

239739A1

RADIATOR

ASSEMBLY - engine coolant, heavy duty, parts list Figure 2-04, used with 235811A1 heavy duty oil cooler, see Figure 6-21A for cooler and baffles, Includes: Ref. 2

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

4

233272A1

SEALING STRIP,20mm W x 404mm L x 6mm Thk

- adhesive-backed, 6 (1/4) x 20 (25/32) x 404 mm (15-29/32 inch) long, radiator to shroud, upper and lower, replaces 140825A1 seal

2шт.

5

186433A1

SHROUD

- fan

1шт.

6

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

- hex, self-locking, 8-1.25 x 16 mm, class 10.9

4шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

131084A1

RESERVOIR

- coolant recovery bottle, Includes: Ref. 9

1шт.

9

1547924C1

CAP

- screw-on

1шт.

10

806-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

- hex, self-locking, 8-1.25 x 50 mm, class 10.9

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

12

132215A1

SPACER

- bottle

2шт.

13

132218A1

HOSE

- 591 mm (23-1/4 inch) long, coolant recovery, cut from L126767 hose

1шт.

14

132217A1

HOSE

- 125 mm (4-15/16 inch) long, coolant overflow

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type, hose, retaining

3шт.

16

141512A1

RADIATOR HOSE,45.00 mm ID x 270.00 mm, SAE 20 R4

Upper 45.00 mm ID x 270.00 mm, SAE 20 R4

1шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

2шт.

18

141513A1

RADIATOR HOSE,58.00 mm ID x 212.00, SAE 20 R4

Lower 58.00 mm ID x 212.00, SAE 20 R4

1шт.

19

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

2шт.

20

217-92

COCK

VALVE - drain, 1/4 inch PT, drain

1шт.

21

121501A1

SUPPORT

BRACKET - radiator mounting, lower, see Figure 9-068 for upper bracket that attaches to the radiator shroud

2шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8-1.25 x 16 mm

4шт.

23

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

24

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

- flat, special

4шт.

25

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber, mount, radiator

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

27

185377A1

FAN,7 blade, 499mm, CW rotation

- engine cooling, all models without air conditioning and prior to tractor P.I.N. JJG0193488 on models with air conditioning

1шт.

Part number is stamped on fan blade.

1шт.

27a

228133A1

FAN

- engine cooling, models with air conditioning on tractor P.I.N. JJG0193488 and after, not shown

1шт.

Part number is stamped on fan blade.

1шт.

28

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10-1.5 x 70 mm

4шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

30

A184545

SPACER

fan

1шт.

31

J921603

V-BELT,3.56 mm W x 1485.90 mm L, 8 Ribs

Fan, Alternator and Fan, See Figure 9-128 for Belt Used on Air Conditioning Compressor 3.56 mm W x 1485.90 mm L, 8 Ribs

1шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8-1.25 x 16 mm, if used

2шт.

34

235040A1

SEAL

- foam, adhesive-backed, 20 (25/32) x 542 (21-11/32) x 6 mm (1/4 inch), horizontal, Serial Range: radiator-cooler

2шт.

35

235038A1

SEAL

- foam, adhesive-backed, 20 (25/32) x 480 (18-29/32) x 10 mm (3/8 inch), vertical, Serial Range: radiator-cooler

2шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
