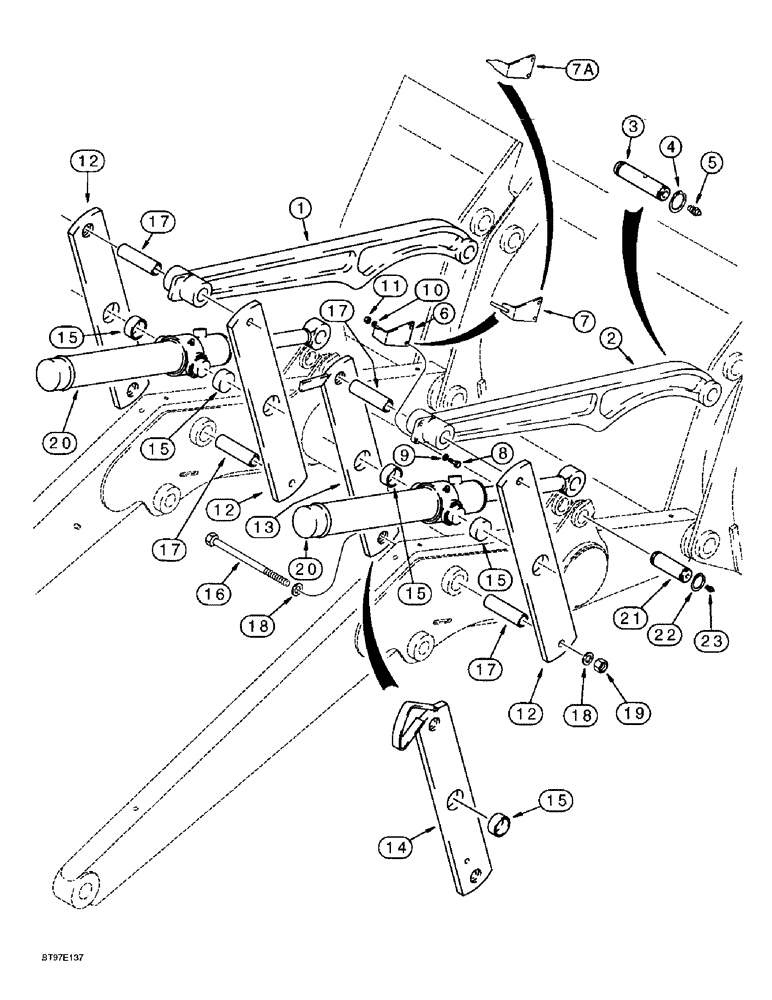

Запчасти Case 580SL (9-012) - LOADER FRAME BUCKET LINKS AND BUCKET CYLINDER LINKS (09) - CHASSIS/ATTACHMENTS

1

141471A1

PITMAN

LINK - bucket, left-hand, without mounting holes for bucket position pointer, used in production, for service order 141472A1 link, item 2

1шт.

2

141472A1

PITMAN

LINK - bucket, left-hand or right-hand, with mounting holes for bucket position pointer

1-2шт.

3

118901A1

PIN,40mm OD x 180mm L

Bucket links to loader bucket

2шт.

4

800-44040

SNAP RING,M40, Ext

RING - external retaining, No. 40, pin retaining

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

6

D121194

POINTER

- bucket position, models without clam bucket

1шт.

7

D123157

SUPPORT

POINTER - bucket position, models with clam bucket, no longer available, order 250851A1 pointer, Ref 7A

1шт.

7a

250851A1

POINTER

- bucket position, models with clam bucket

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- HH, CL 8.8, M8 x 1.25 x 30, Full Thd

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

12

139180A1

LINK ASSY.

LINK - bucket cylinder, outer right-hand and inner and outer left-hand, Includes: Ref. 15 bushing

3шт.

13

139235A1

PITMAN

LINK - bucket cylinder, inner right-hand, with extra hole for antirollback rod, Includes: Ref. 15 bushing, models without clam bucket, see Ref. 14 link for models with clam bucket

1шт.

14

139195A1

PITMAN

LINK - bucket cylinder, inner right-hand, with extra hole for antirollback rod, Includes: Ref. 15 bushing, models with clam bucket, see Ref. 13 for models without clam bucket

1шт.

15

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

- one per each link, Ref 12-14

1шт.

16

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

- hex, 20-2.5 x 190 mm, class 10.9

4шт.

17

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

BUSHING - spacer, cylinder links

4шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

8шт.

19

829-1420

NUT,M20, Cl 10

4шт.

20

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

CYLINDER ASSEMBLY - 76 (3) ID x 522 mm (20-9/16 inch) stroke, loader bucket, parts list Figure 8-148

2шт.

20

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

20

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

21

116339A1

PIN,40mm OD x 125mm L

- bucket cylinder rod end

2шт.

22

800-44040

SNAP RING,M40, Ext

RING - external retaining, No. 40, pin retaining

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.
