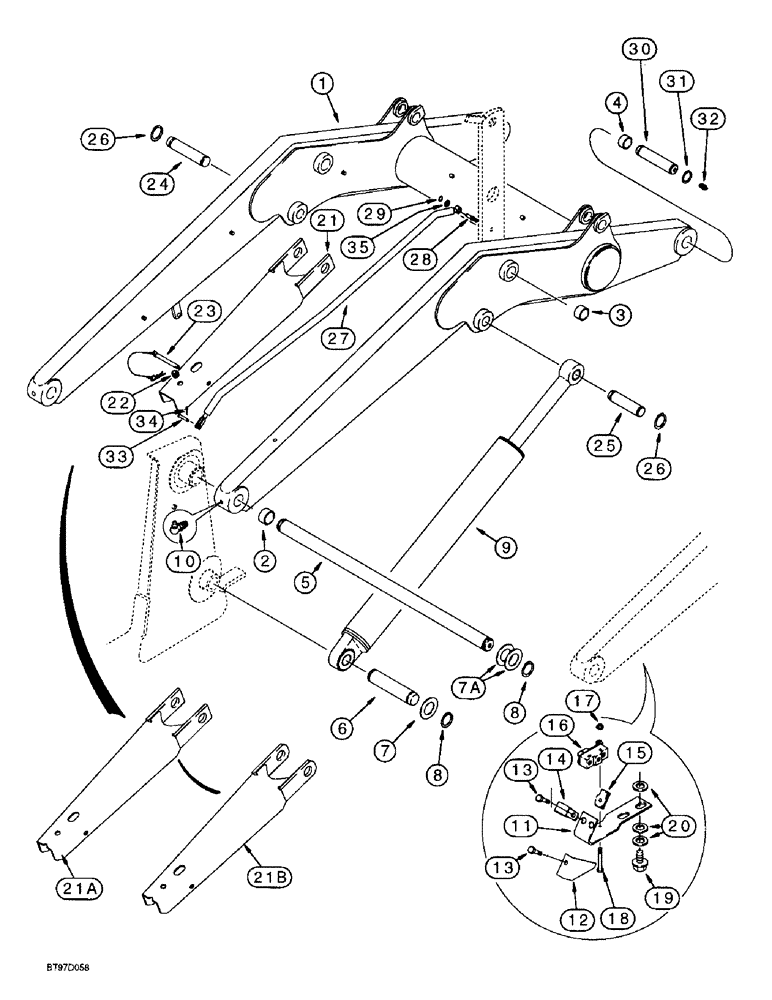

Запчасти Case 580SL (9-010) - LOADER LIFT FRAME AND MOUNTING PARTS, LIFT CYLINDER, SUPPORT STRUT, RETURN-TO-DIG AND ANTIROLLBACK (09) - CHASSIS/ATTACHMENTS

1

141324A1

ARM

FRAME - loader lift, Includes: Ref. 2 - 4

1шт.

2

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

- loader frame pivot

4шт.

3

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

Bucket cylinder link pivot, No longer included with frame, Purchase separately

4шт.

4

109268A1

BUSHING,40.3mm ID x 50mm OD x 35mm L

- bucket mounting

4шт.

5

111522A1

PIN,50mm OD x 1113.4mm L

SHAFT - loader lift frame pivot

1шт.

6

119129A1

PIVOT PIN

lift cylinder, closed end

2шт.

7

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 3/32 inch

4шт.

7a

181842A1

WASHER,50.4mm ID x 76mm OD x 3.6mm Thk

- special, hardened, install a minimum of one washer per side

1шт.

8

800-44050

SNAP RING,M50, Ext

RING - external retaining, No. 50, 50 mm

6шт.

9

112366A2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 766 mm (30-1/8 inch) stroke, loader lift, parts list Figure 8-146

2шт.

9

384240A1R

REMAN-HYD CYLINDER

Reman for New PN 112366A2

2шт.

9

384240A1C

CORE-HYD CYLINDER

Return Number

2шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

11

128818A1

SUPPORT

BRACKET - mounting, return-to-dig switch

1шт.

12

142524A1

PROTECTOR

COVER - return-to-dig switch

1шт.

13

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

14

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- P-type

1шт.

15

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

2шт.

16

D137363

SWITCH

- return-to-dig

1шт.

17

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

2шт.

18

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

19

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

- hex flange, special, 10 x 15 mm

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

6шт.

21

113584A1

SUPPORT

STRUT - support, loader frame, left-hand lift arm only, no longer available, order 242369A1 strut

1шт.

21a

199783A1

SUPPORT

STRUT - support, loader frame, left-hand lift arm only, no longer available, order 242369A1 strut

1шт.

21b

242369A1

STRUT

- support, loader frame, left-hand lift arm only

1шт.

22

D121047

GROMMET

- support strut

1шт.

23

104824A1

PIN,12.7mm OD

lock, Incl lanyard and hair pin

1шт.

24

118900A1

PIN,40mm OD x 179mm L

LH lift cylinder rod end and support strut, Mounts in the loader lift frame with the tapered end towards the outside of the frame

1шт.

25

113629A1

PIN,40mm OD x 155mm L

- 155 mm, 6-1/8 inch long, RH lift cylinder rod end

1шт.

26

800-44040

SNAP RING,M40, Ext

RING - external retaining, No. 40, pin retaining

4шт.

27

182895A1

THREADED ROD

ROD - antirollback, attaches to bucket cylinder link

1шт.

28

192815A1

PIN,1/2" - 13, 1.85" L

- antirollback rod to bucket cylinder link, replaces 116138A1 pin

1шт.

29

103-3350

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

30

118901A1

PIN,40mm OD x 180mm L

Loader lift frame to loader bucket

2шт.

31

800-44040

SNAP RING,M40, Ext

RING - external retaining, No. 40, pin retaining

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

33

427-6088

CLEVIS PIN,3/8" x 3/4"

PIN - clevis, 3/8 x 7/8 inch, hardened

1шт.

34

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.
