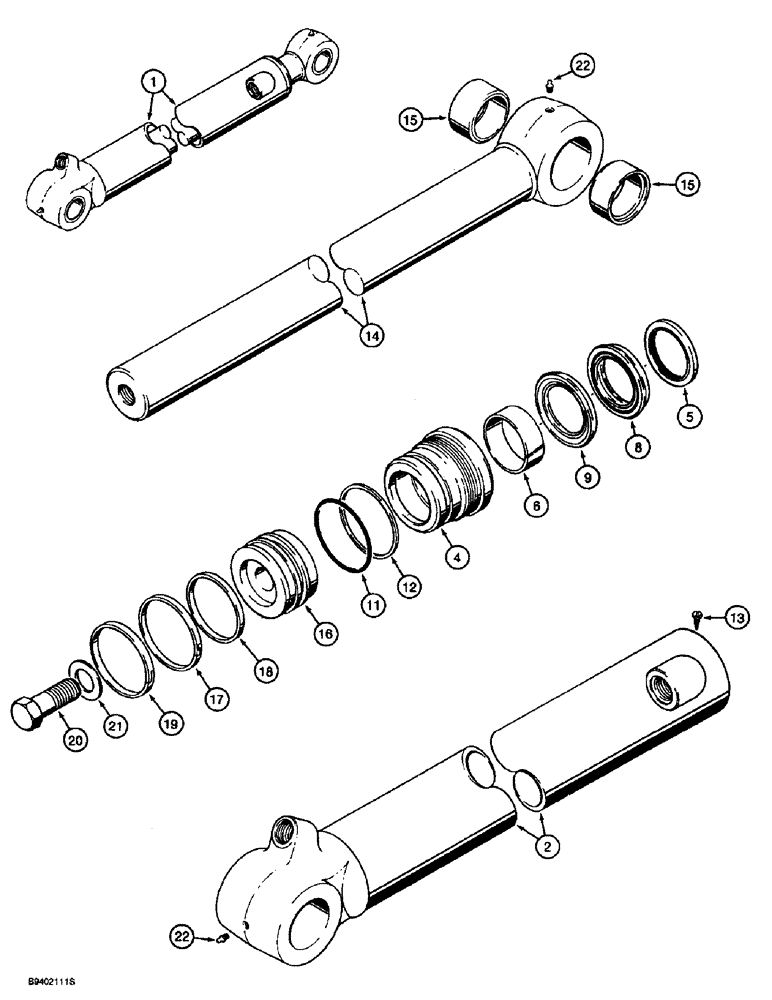

Запчасти Case 580SL (8-166) - BACKHOE BUCKET CYLINDER, (TUBE GREASE FITTING AT CENTER) (08) - HYDRAULICS

1

110290A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 80 (3-1/2) ID x 872 mm (34-5/16 inch) stroke, bucket, no longer available, order 235916A1 cylinder on Figure 8-168, Includes: Ref. 2 - 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 110290A1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

110292A1

TUBE,50 mm ID, 1086.9 mm Length

ASSEMBLY - cylinder, when stock is exhausted, order 235917A1 tube and 235921A1 gland on Figure 8-168

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

1542922C1

GLAND

- cylinder, if replacing old 110292A1 tube with 235917A1 tube, also replace this gland with 235921A1 gland on Figure 8-168

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1542923C2

1шт.

6

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

- center

1шт.

Part of Seal Kit, P/N 1542923C2

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT - seal, NSS, Includes: Ref. 8 and 9

1шт.

Part of Seal Kit, P/N 1542923C2

1шт.

8

1542931C1

SEAL

- rod, NSS

1шт.

9

1542930C1

SEAL

- buffer, NSS

1шт.

11

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

Gland -235, 70 Duro, 3.109" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1542923C2

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup

1шт.

Part of Seal Kit, P/N 1542923C2

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

14

196164A1

PISTON ROD

ROD ASSEMBLY - piston, 2-1/2 inch (64 mm) diameter, cylinder, replaces 1542658C1 rod, Includes: Ref. 15

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

- 50 x 60 x 25.5 mm long, piston rod

2шт.

16

1986906C1

PISTON

- cylinder

1шт.

17

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1542923C2

1шт.

18

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1542923C2

1шт.

19

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

Part of Seal Kit, P/N 1542923C2

1шт.

20

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

21

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special, 1-1/4 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1542923C2

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT - seal, Includes: Ref. 5, 6, 11, 12, 17, 18, 19, and P/N 1542879C1, and an instruction sheet

1шт.
