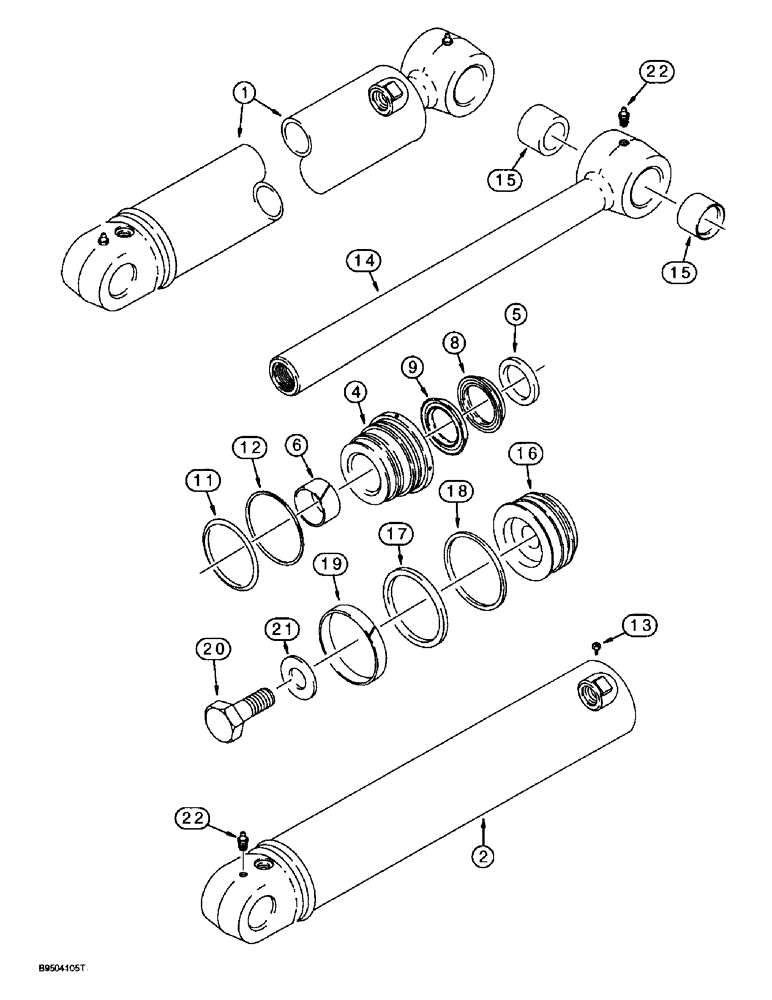

Запчасти Case 580SL (8-164) - BACKHOE DIPPER CYLINDER 183795A1 AND 183795A2 (08) - HYDRAULICS

1

183795A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 583 mm (23 inch) stroke, dipper, used with 123167A1 pin (Ref. 23, Figure 9-036) without center lubrication groove, no longer available, order 183795A2 cylinder and 123167A2 pin, Includes: Ref. 2 - 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

183795A4R

REMAN-HYD CYLINDER

Reman for New PN 183795A1

1шт.

1

183795A4C

CORE-HYD CYLINDER

Return Number

1шт.

1

183795A2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 583 mm (23 inch) stroke, dipper, used with 123167A2 pin (Ref. 23A, Figure 9-036) with center lubrication groove, Includes: Ref. 2 - 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

183795A4R

REMAN-HYD CYLINDER

Reman for New PN 183795A2

1шт.

1

183795A4C

CORE-HYD CYLINDER

Return Number

1шт.

2

183796A1

TUBE

- cylinder, 183795A1

1шт.

2

183796A2

TUBE,126.87 mm OD

- cylinder, 183795A2, see pin note on cylinder assembly

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

1542914C1

GLAND,127mm Bore, 63.5mm Rod, 91.8mm W

- cylinder

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT - seal, NSS, Includes: Ref. 8 and 9

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

8

1542931C1

SEAL

- rod, NSS

1шт.

9

1542930C1

SEAL

- buffer, NSS

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

12

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

14

178850A1

PISTON ROD

ROD ASSEMBLY - piston, 2-1/2 inch (64 mm) diameter, cylinder, Includes: Ref. 15

1шт.

15

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

Rod

2шт.

16

G110569

PISTON,126.29mm Bore, 63.58mm Rod, 57.2mm W

- cylinder

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

19

G102090

RING,127mm OD, Ext

- wear, piston

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

20

25987R1

BOLT,Hex, 1 1/2" - 12 x 3 1/2", Gr 8

- hex, 1-1/2 NF x 3-1/2 inch, grade 8

1шт.

21

G104990

WASHER

- flat, hardened, special, 1-1/2 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1542915C2

SEAL KIT

KIT - seal, Includes: Ref. 5, 6, 11, 12, 17, 18, 19, and P/N 1542879C1, also a seal and wiper not used in this application, and an instruction sheet

1шт.
