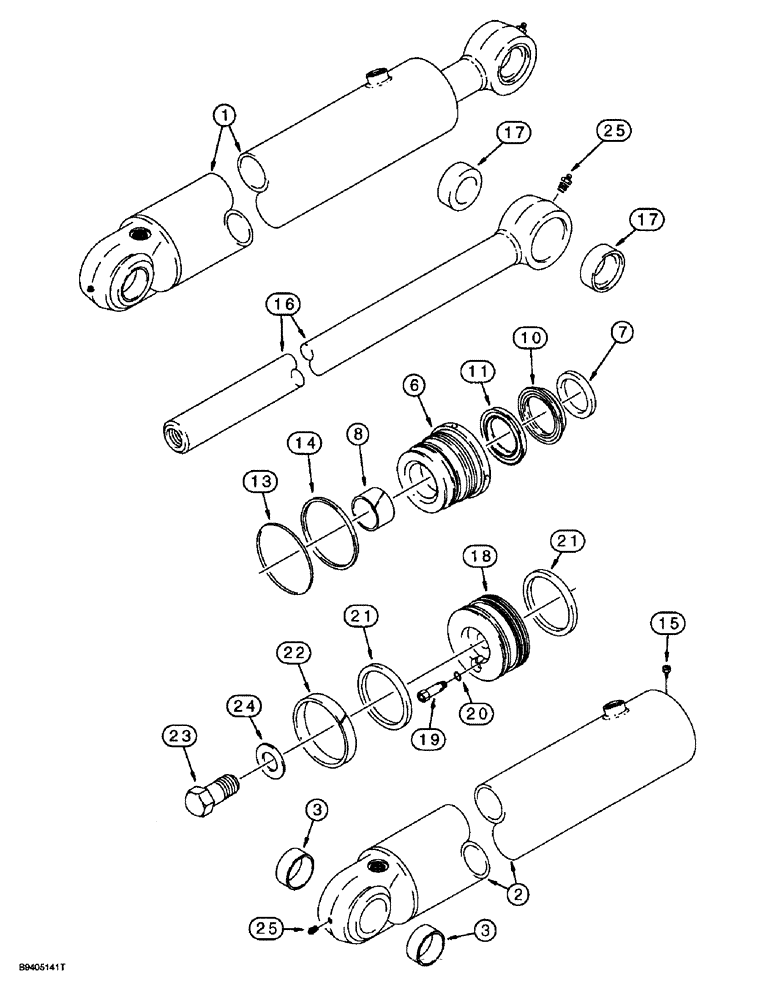

Запчасти Case 580SL (8-160) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

144200A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 842 mm (33-5/32 inch) stroke, boom, without grease seals at rod and tube eyes, Includes: Ref. 2 - 25

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

144201A1

TUBE,126.87 mm ID, 1069.8 mm Length

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

1346101C1

RING,60.19mm ID x 70mm OD x 39mm L

BUSHING - tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 6 - 14

1шт.

6

1542918C1

CYLINDER END CAP

GLAND - cylinder, has identification groove on outer lip

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1542919C2

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N 1542919C2

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT - seal, NSS, Includes: Ref. 10 and 11

1шт.

Part of Seal Kit, P/N 1542919C2

1шт.

10

1542929C1

SEAL,2.778mm OD

- rod, NSS

1шт.

11

1542928C1

SEAL,2.275" ID

- buffer, NSS

1шт.

13

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1542919C2

1шт.

14

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 1542919C2

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

16

123405A6

PISTON ROD

ROD ASSEMBLY - piston, 57 mm (2-1/4 inch) diameter, replaces 123405A4 and 123405A5 rod, Includes: Ref. 17

1шт.

17

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

Rod

2шт.

18

1346018C2

JACK PISTON

PISTON - cylinder, used with 1958028C1 relief valve cartridge, replaces 1346018C1 piston

1шт.

19

1958028C1

VALVE

ASSEMBLY - relief, cartridge, internal component parts not serviced separately, Includes: Ref. 20

1шт.

21

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

- piston

2шт.

Part of Seal Kit, P/N 1542919C2

1шт.

22

G102090

RING,127mm OD, Ext

- wear, piston

1шт.

Part of Seal Kit, P/N 1542919C2

1шт.

23

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

24

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special, 1-1/4 inch

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1542919C2

SEAL KIT

KIT - seal, Includes: Ref. 7, 8, 13, 14, 21, 22, and P/N 1542877C1, also includes G108712 piston rod wiper not used in this application, and an instruction sheet

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Relief valve cartridge, external

1шт.
