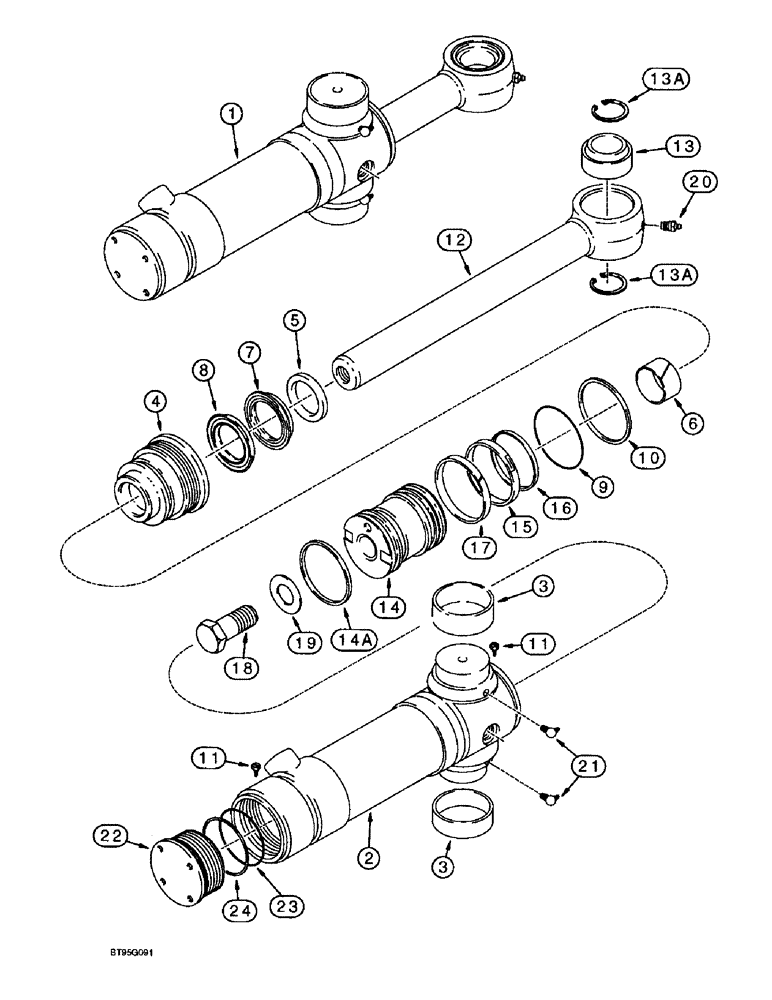

Запчасти Case 580SL (8-158) - BACKHOE SWING CYLINDERS, MODELS WITH NON-PRIORITY SWING (08) - HYDRAULICS

1

139808A2

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 292mm Stroke

Assy, 102 (4) ID x 292 mm (11-1/2 inch) stroke, Swing, Used on models with non-priority swing, if used, Incl Ref. 2 - 24

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

199953A2

BARREL

Assy (Tube) - Cylinder, 139808A2 cylinder, Incl 139810A2 tube - cylinder, 139808A2 cylinder, Models with non-priority swing, Incl 139810A2 tube, 124462A1 end cap assy (Ref 22-24), (1) 276-2446 screw (Ref 11) and Ref 3, if used, Not available as a

1шт.

2

139810A2

TUBE,101.37mm Bore Dia

ASSEMBLY - cylinder, 139808A2 cylinder, does not include 124462A1 end cap assembly or (1) 276-2446 screw, Includes: Ref. 3

1шт.

3

124568A2

RING,69.92mm ID x 77mm OD x 28mm L

BUSHING - tube, external

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

G109899

GLAND

- cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Incl Ref 7 and 8

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

7

1543001C1

SEAL

- rod, NSS

1шт.

8

1543000C1

SEAL

- buffer, NSS

1шт.

9

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- 3-5/8 x 1/8 inch wide, gland

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

10

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

2шт.

12

177518A1

PISTON ROD

ROD ASSEMBLY - piston, 2 inch (51 mm) diameter, Includes: Ref. 13 and 13A

1шт.

13

137248A1

RING,50.79mm ID x 80.96mm OD x 44.45mm W

BUSHING - piston rod, self-aligning

1шт.

13a

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

14

112370A3

PISTON

Cylinder, Replaces 112370A2 piston

1шт.

14a

121478A1

RING,96.72mm ID, Ext

- cast iron, 4 inch OD

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear, piston

1шт.

Part of Seal Kit, P/N 122535A1

1шт.

18

28-1664

BOLT,Hex, 1" - 14 x 4", Gr 8

- hex, 1-14 x 4 inch, grade 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special, 1 inch, hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

124462A1

CYLINDER END CAP

CAP ASSEMBLY - end, order Ref. 22-24

1шт.

22

124463A1

CYLINDER END CAP

CAP - end

1шт.

23

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

24

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

122535A1

SEAL KIT

KIT, SEALS, Incl Ref 5, 6, 9, 10, 14A 15, 16, 17 and 1542876C1 and an instruction sheet

1шт.
