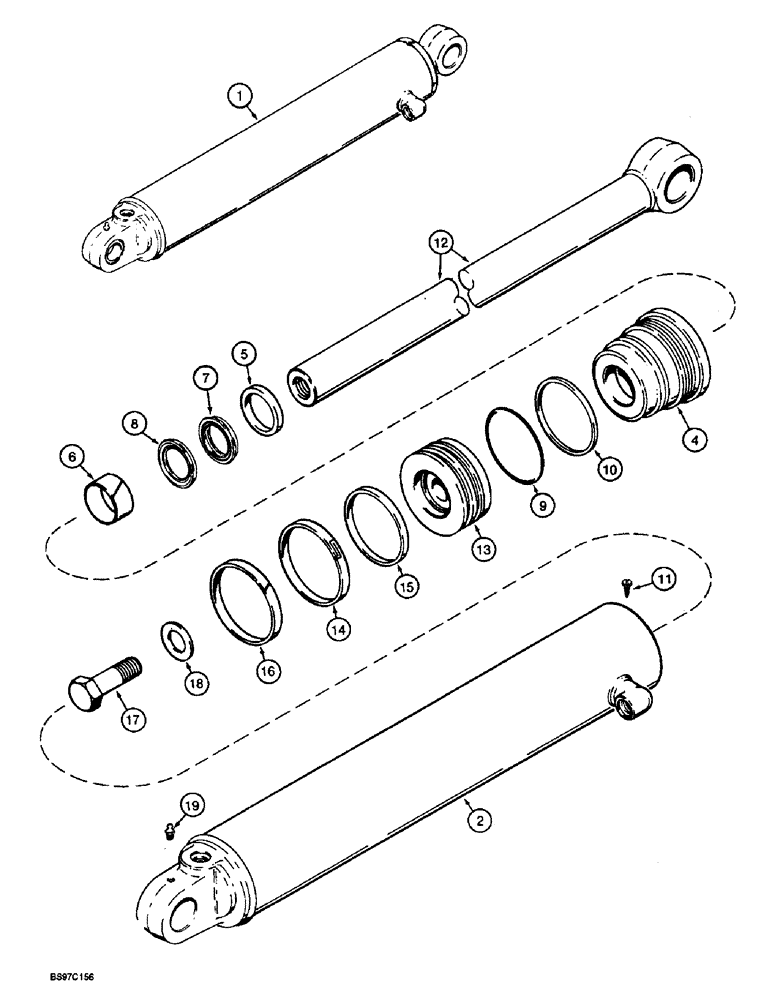

Запчасти Case 580SL (8-154) - BACKHOE STABILIZER CYLINDERS, (9/16 INCH THREADED SPUD ON CYLINDER TUBE) (08) - HYDRAULICS

1

199720A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

Assy, 108 (4-1/4) ID x 553 mm (21-3/4") stroke, Stabilizer, RH, without tube or rod bushings, Incl Ref 2 - 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

199720A1R

REMAN-HYD CYLINDER

Reman For New PN 199720A1

1шт.

1

199720A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

199721A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

CYLINDER ASSEMBLY - 108 (4-1/4) ID x 553 mm (21-3/4 inch) stroke, stabilizer, left-hand, without tube or rod bushings, Includes: Ref. 2 - 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

199721A1R

REMAN-HYD CYLINDER

Reman for New PN 199721A1

1шт.

1

199721A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

199722A1

BARREL,107.82 mm OD

TUBE - cylinder, right-hand

1шт.

2

199723A1

BARREL,107.82 mm OD

(Tube) - Cylinder, LH

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

G110519

CYLINDER END CAP

GLAND - cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N 1543275C1, 84155085

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N 1543275C1, 84155085

1шт.

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Incl Ref 7 and 8

1шт.

Part of Seal Kit, P/N 1543275C1

1шт.

7

1543001C1

SEAL

- rod, NSS

1шт.

8

1543000C1

SEAL

- buffer, NSS

1шт.

9

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

Gland -241, 70 Duro, 3.859" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1543275C1

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 1543275C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

123726A1

PISTON ROD

ROD - piston, 51 mm (2 inch) diameter

1шт.

13

123732A1

PISTON

- cylinder

1шт.

14

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N 1543275C1, 84155085

1шт.

15

G110529

RING

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1543275C1, 84155085

1шт.

16

G110530

RING,108mm OD, Ext

- wear, piston

1шт.

Part of Seal Kit, P/N 1543275C1, 84155085

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special, 1-1/32 x 2-3/8 x 3/16 inch

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

1543275C1

SEAL KIT

KIT, SEALS, Incl Ref 5, 6, 9, 10, 14, 15, 16 and P/N 1542876C1 and an instruction sheet

1шт.

84155085

SEAL KIT,Reapir, 108.0 x 50.8

KIT, SEALS, Incl Ref 5, 6, 14, 15, 16 and P/N 1542876C1 and an instruction sheet

1шт.
