Запчасти Case 580SL (8-150) - LOADER CLAM CYLINDERS (08) - HYDRAULICS

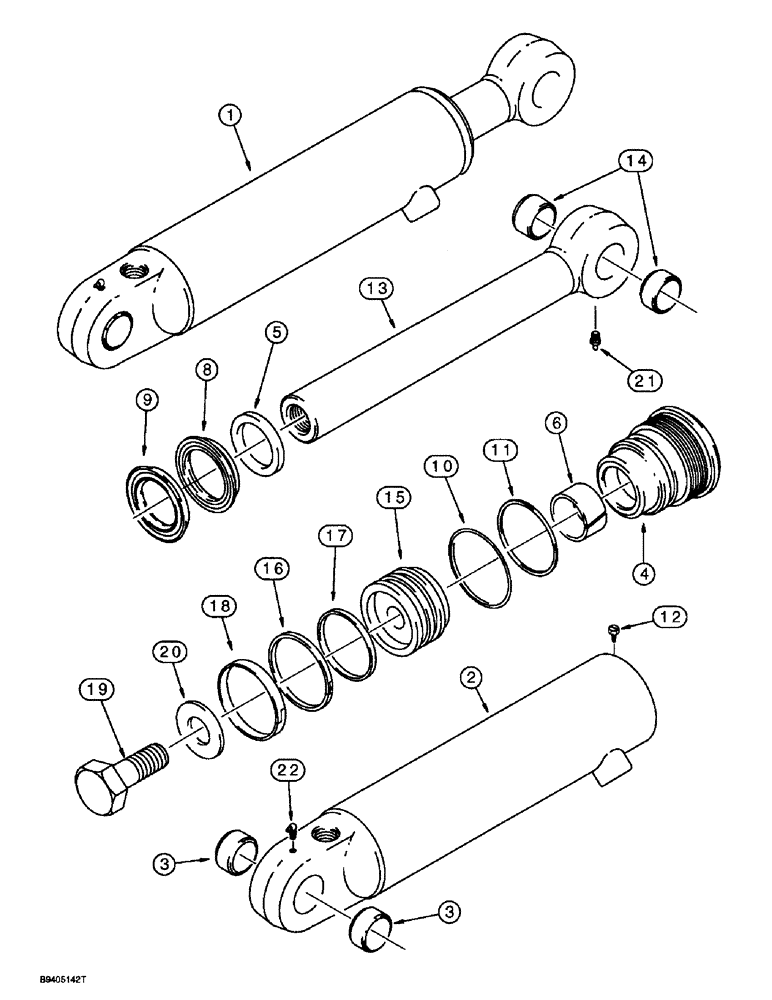

Схема запчастей Case 580SL - (8-150) - LOADER CLAM CYLINDERS (08) - HYDRAULICS
10
16
9
2
17
15
21
5
19
18
12
3
13
4
20
14
8
1
11
22
6
3

Артикул

Название

Примечание

Количество

1

1346189C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 231 mm (9 inch) stroke, clam, right-hand, Includes: Ref. 2 - 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

87454017R

REMAN-HYD CYLINDER

580SL LOADER BACKHOE, CYLINDER ASSEMBLY, 76 (3) ID x 231 mm (9 inch) stroke, clam, right-hand, Reman for New PN 1346189C1

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

1346190C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 231 mm (9 inch) stroke, clam, left-hand, Includes: Ref. 2 - 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1346191C1

TUBE

ASSEMBLY - cylinder, right-hand, Includes: Ref. 3

1шт.

2

1346192C1

TUBE

ASSEMBLY - cylinder, left-hand, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- 1346191C1 or 1346192C1 tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

G109884

CYLINDER END CAP

GLAND - cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Incl Ref 8 and 9

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

8

1542999C1

SEAL

- rod, NSS

1шт.

9

1542998C1

SEALING RING

- buffer, NSS

1шт.

10

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

11

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

13

1346195C1

PISTON ROD

ROD ASSEMBLY - piston, 44 mm diameter, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

15

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of Seal Kit, P/N 1543267C1

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x 2-1/2 inch, grade 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special, 1 inch, hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

1543267C1

SEAL KIT

KIT, SEALS, Incl Ref 5, 6, 10, 11, 16, 17, 18 and P/N 1542875C1 and an instruction sheet

1шт.

Выбрано товаров: 38
