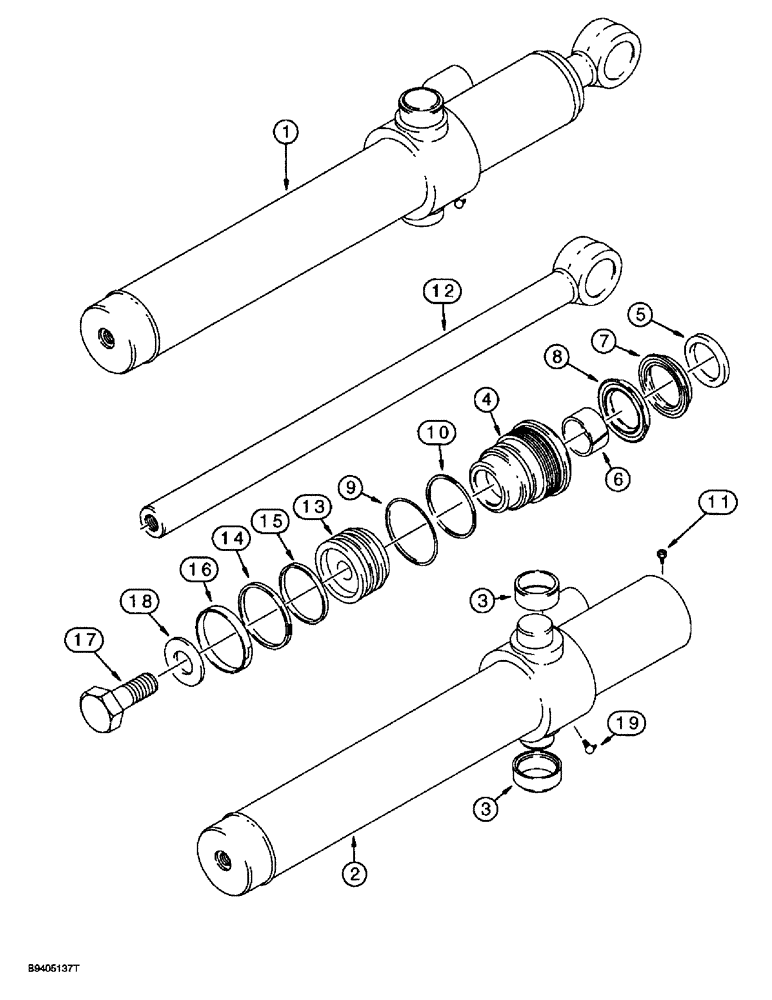

Запчасти Case 580SL (8-148) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

CYLINDER ASSEMBLY - 76 (3) ID x 522 mm (20-9/16 inch) stroke, bucket, left-hand and right-hand, includes bushings in cylinder tube and without bushings at rod eye, Includes: Ref. 2 - 19

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

1

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

2

113135A2

BARREL

Assy, Cylinder, Incl Ref 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

- tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

G109881

GLAND

- cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Incl Ref 7 and 8

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

7

1542997C1

SEALING RING

- rod, NSS

1шт.

8

1542996C1

SEAL

- buffer, NSS

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

110307A1

PISTON ROD

ROD - piston, 38 mm (1-1/2 inch) diameter, without bushings in eye

1шт.

13

G108518

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of Seal Kit, P/N 1543256C1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special, hardened

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch, if used

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Replaces 219-36 fitting used on some models 90º, 1/8" NPT x .84" lg

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

KIT, SEALS, Incl Ref 5, 6, 9, 10, 14, 15, 16 and 1542874C1 and an instruction sheet

1шт.
