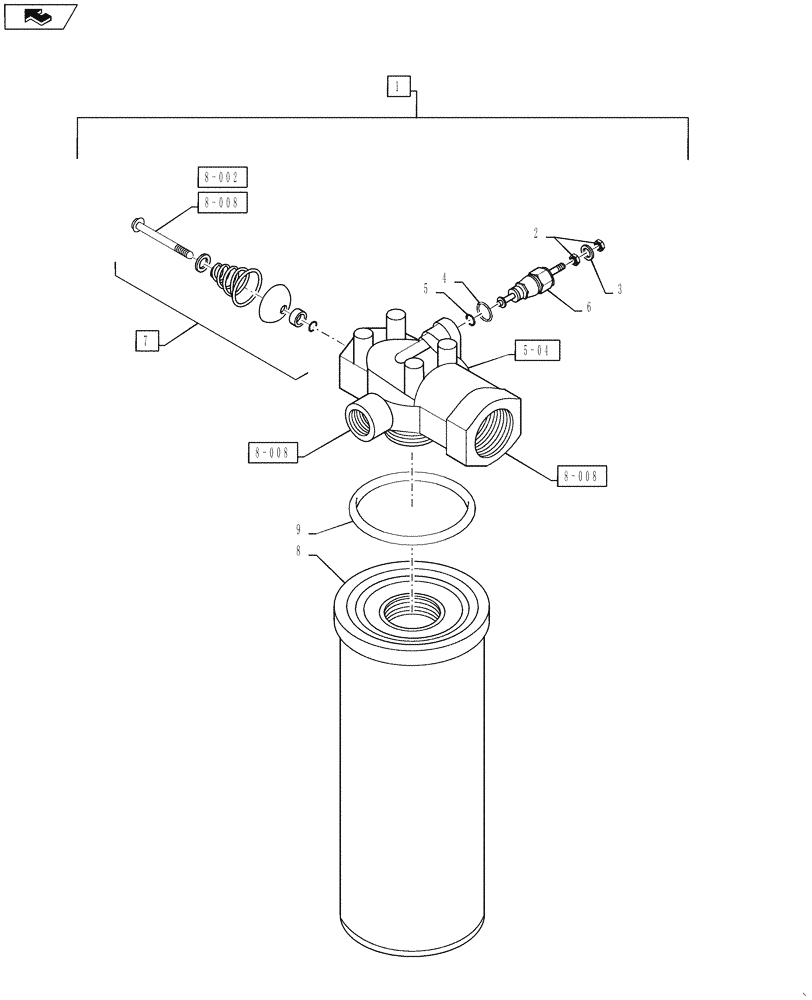

Запчасти Case 580SL (8-144) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

122536A1

HYDRAULIC OIL FILTER

hydraulic oil; Incl 1 - 9

1шт.

255162A1

FILTER ASSY

hydraulic oil, 70 psi cooler bypass, models with non-priority swing, for use on models with swing cavitation only, if used, not shown, includes all parts listed below

1шт.

255162A1-FILTER ASSEMBLY: THIS PART SHOULD BE SUPPLIED ONLY WHEN ASKED FOR, AND ONLY WHEN CUSTOMER COMPLAINS OF SWING CAVITATION. THIS FILTER ASSEMBLY SHOULD NOT BE USED FOR ANY REASON BUT TO PREVENT SWING CAVITATION. IT SHOULD ONLY BE SUPPLIED FOR UNITS WITH NON-PRIORITY SWING. 09/26/97

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N6755

PRESSURE SWITCH

restriction, electric; Incl 2 - 6

1шт.

N6941

KIT

restriction indicator repair (order Ref 2 - 5)

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Inner

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter; Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Filter to head -230, 70 Duro, 2.484" ID x .139" Thk

1шт.
