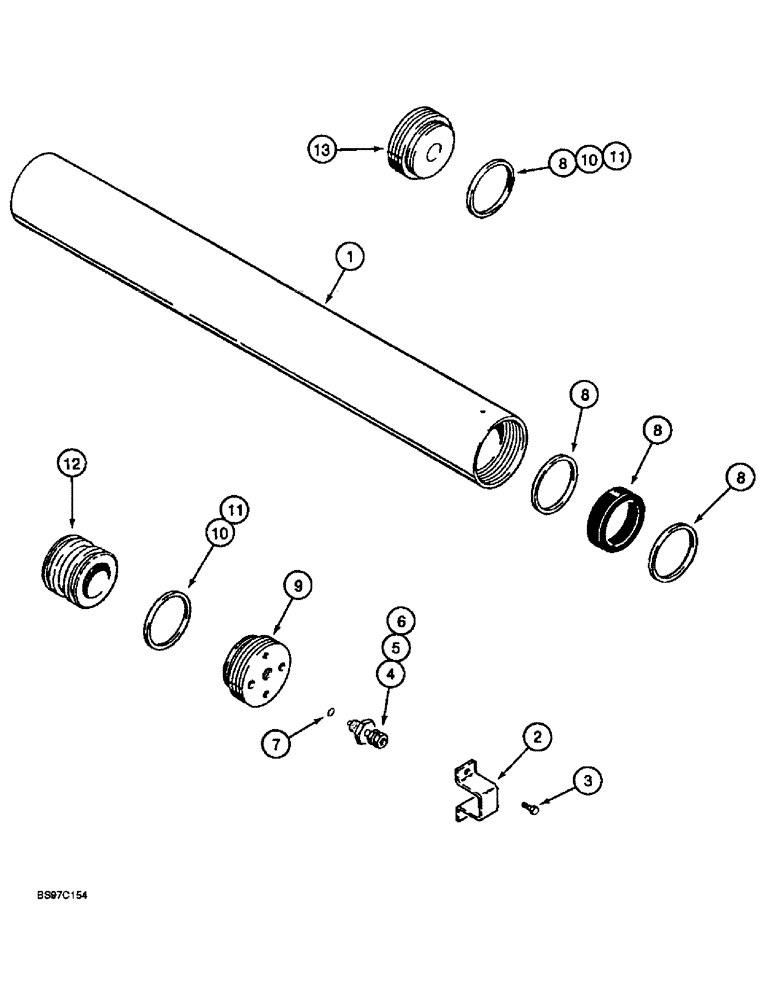

Запчасти Case 580SL (8-142) - ACCUMULATOR ASSEMBLY, RIDE CONTROL (08) - HYDRAULICS

234412A1

ACCUMULATOR,0.98L

ASSEMBLY - hydraulic, ride control, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator, tube

1шт.

2

192895A1

PROTECTOR

GUARD - valve, replaces 1978140C1 bracket

1шт.

3

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch

2шт.

1978142C1

VALVE

ASSEMBLY - charge, gas, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

1978158C1

O-RING

- valve

1шт.

8

1978141C1

SEAL KIT

KIT, SEALS, Incl (1) V-type O-ring, (2) Teflon bearing rings and (1) body end seal ring

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - gas valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - gland

2шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, if used

2шт.

12

NSS

NOT SOLD SEPARAT

PISTON - accumulator

1шт.

13

NSS

NOT SOLD SEPARAT

GLAND - end cap

1шт.

14

L129440

DECAL

- hydraulic accumulator application instructions, mounts on accumulator, not shown, see Figure 9-138 for decal

1шт.
