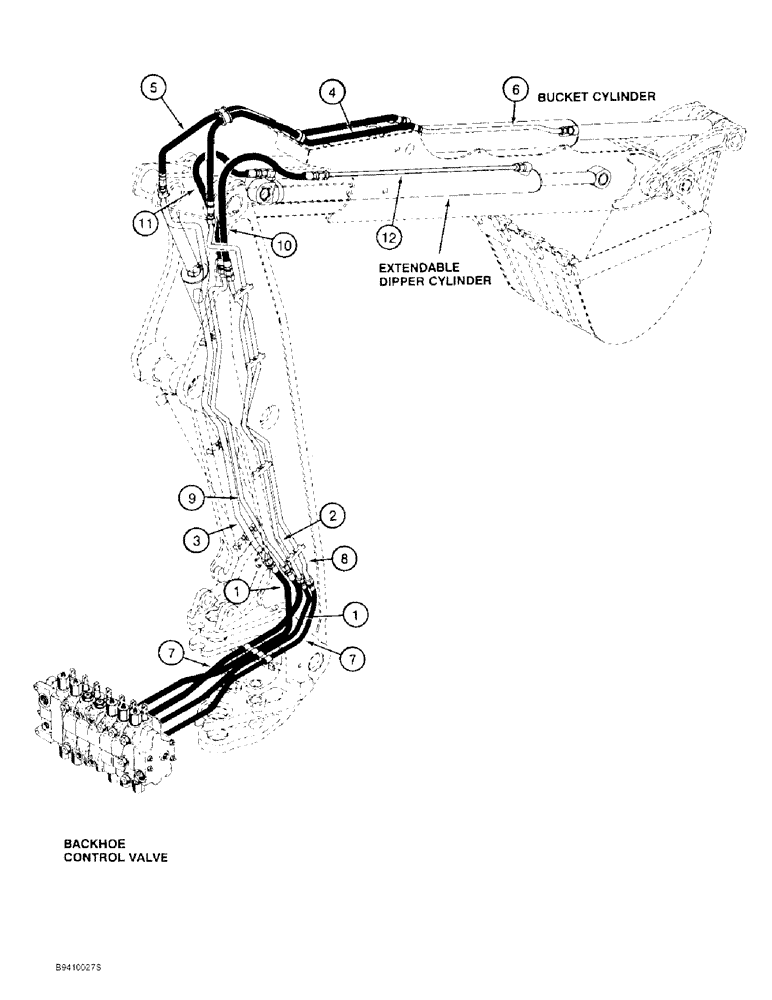

Запчасти Case 580SL (1-22) - PICTORIAL INDEX, BACKHOE HYDRAULICS, EXTENDABLE DIPPER (00) - PICTORIAL INDEX

1

Hoses at control valve through swing tower boom, PAGE 8-032

1шт.

2

Tube on right-hand side of boom to bucket cylinder rod end hose, PAGE 8-032

1шт.

3

Tube on left-hand side of boom to bucket cylinder closed end hose, PAGE 8-032

1шт.

4

Hose to bucket cylinder rod end tube, PAGE 8-032

1шт.

5

Hose to bucket cylinder closed end, PAGE 8-032

1шт.

6

Bucket cylinder rod end tube, PAGE 8-032

1шт.

7

Hoses at control valve through swing tower to boom for extendable dipper circuit, PAGE 8-036

1шт.

8

Tube on boom to extendable dipper cylinder rod end hose, PAGE 8-036

1шт.

9

Tube on boom to extendable dipper cylinder closed end hose, PAGE 8-036

1шт.

10

Hose at extendable dipper cylinder rod end tube, PAGE 8-036

1шт.

11

Hose at extendable dipper cylinder closed end, PAGE 8-036

1шт.

12

Tube at extendable dipper cylinder rod end, PAGE 8-036

1шт.
