(8-132) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION, TRACTOR P.I.N. JJG0193620 AND AFTER

Запчасти Case 580SL (8-132) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION, TRACTOR P.I.N. JJG0193620 AND AFTER (08) - HYDRAULICS

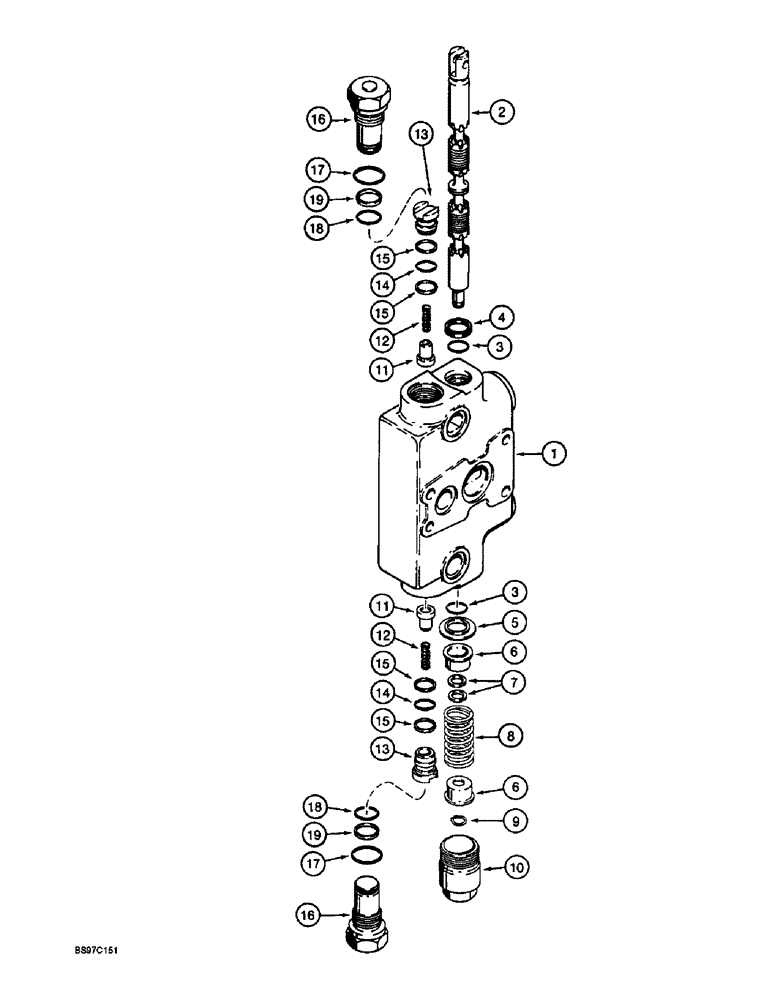

Схема запчастей Case 580SL - (8-132) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION, TRACTOR P.I.N. JJG0193620 AND AFTER (08) - HYDRAULICS
19
6
2
3
4
3
15
6
17
19
12
17
16
7
9
14
11
18
16
18
15
13
1
14
15
5
8
11
12
13
15
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

144324A4

HYD VALVE SECTION

SECTION ASSEMBLY - dipper extension, replaces 144324A2 and 144324A3 sections, if used, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - dipper extension

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - dipper extension

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

G106410

SPACER

- spool

2шт.

8

1994596C1

SPRING

- centering, purple, 2-15/16 inch free length, spool

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end (Replaces G33077) #47, Ext

1шт.

10

G33080

CAP

- centering spring, spool end

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 11 - 15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, load check

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

13

1343708C1

PLUG

- load check

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

G33122

PLUG,ORB

ASSEMBLY - relief, Includes: Ref. 16 - 19

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Plug -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

1346105C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 14, 15, 17, 18 and 19, plus additional O-rings not required for this application

1шт.
