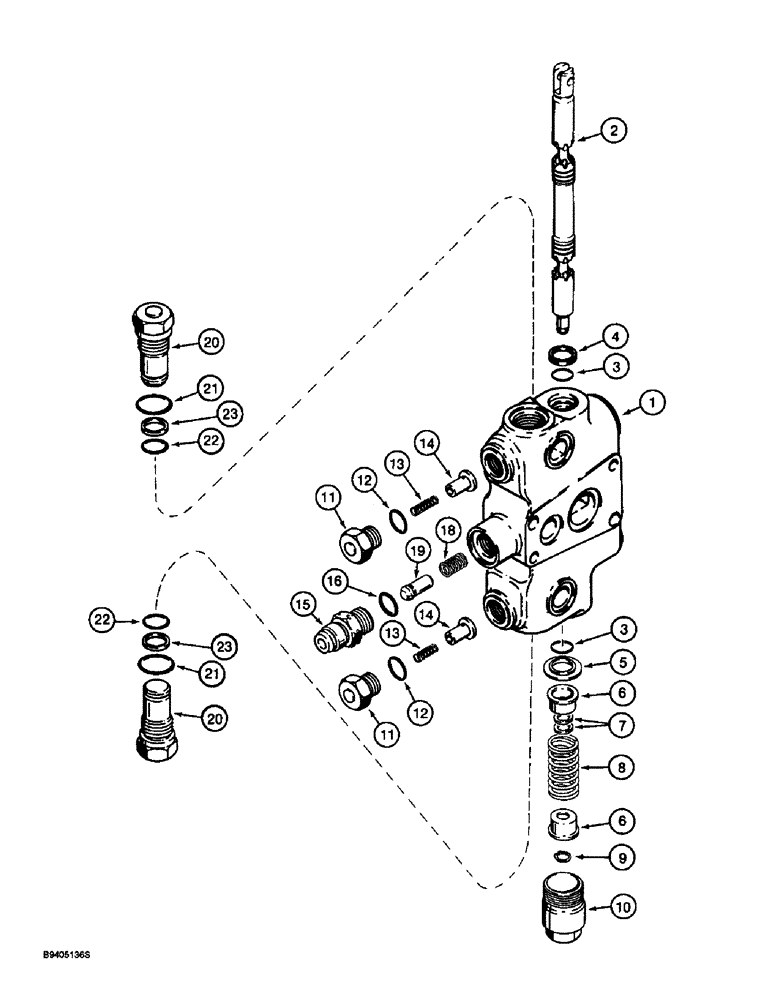

Запчасти Case 580SL (8-130) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION, PRIOR TO TRACTOR PIN JJG0193620 (08) - HYDRAULICS

121739A5

VALVE

SECTION ASSEMBLY - dipper extension, replaces 121739A2, 121739A3 and 121739A4 sections, if used, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - dipper extension

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - dipper extension

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

G106410

SPACER

- spool

2шт.

8

1994596C1

SPRING

- centering, purple, 2-15/16 inch free length, spool

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end (Replaces G33077) #47, Ext

1шт.

10

G33080

CAP

- centering spring, spool end

1шт.

1346221C1

VALVE

ASSEMBLY - anticavitation, for service order Ref. 11-14

2шт.

11

G34937

PLUG

- anticavitation valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation valve

1шт.

15

119895A3

FITTING

SEAT - valve, load check, with one identification groove around center of body, includes 237-6010 O-ring (Ref. 16), replaces 119895A2 seat which did not include O-ring, if used

1шт.

15

198578A1

SEAT

HOUSING - load check valve, with two identification grooves around center of body, does not include Ref. 16 O-ring, if used

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Housing

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

18

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- valve check

1шт.

19

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

POPPET - valve check, replaces G109645 poppet

1шт.

G33122

PLUG,ORB

ASSEMBLY - relief, Includes: Ref. 20 - 23

2шт.

20

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring

1шт.

1346105C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 12, 16, 21 and 22, plus additional O-rings not required for this application

1шт.
