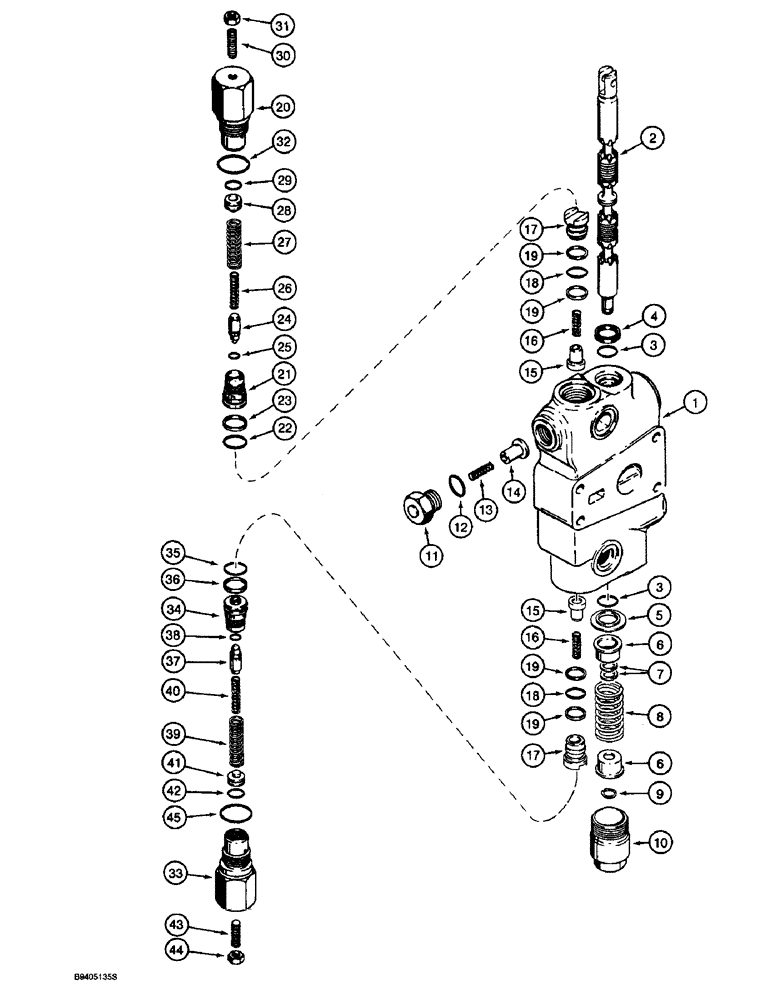

Запчасти Case 580SL (8-118) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
122853A6
HYD VALVE SECTION
SECTION ASSEMBLY - boom, with circuit relief valves and anticavitation valve, replaces 122853A3, 122853A4 and 122853A5 sections, if used, Includes: Ref. 1 - 45
1шт.
122853A6 IS USED ON MACHINES EQUIPPED WITH PRIORITY SWING, 144321A5 IS USED ON MACHINES EQUIPPED WITH NON-PRIORITY SWING.
1шт.
144321A5
HYD VALVE SECTION
SECTION ASSEMBLY - boom, with circuit relief valves and anticavitation valve, replaces 144321A4 section, if used, Includes: Ref. 1 - 45
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - boom section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - boom section
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
4
65457C1
SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk
- oil, spool
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
5
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
- O-ring
1шт.
6
G33075
RETAINER,12.2mm ID, 27.9mm OD
SEAT - centering spring
2шт.
7
G106410
SPACER
- spool
2шт.
8
1994596C1
SPRING
- centering, purple, 2-15/16 inch free length, spool
1шт.
9
100-1647
SNAP RING,#47, Ext
Ring, Snap, , Spool end (Replaces G33077) #47, Ext
1шт.
10
G33080
CAP
- centering spring, spool end
1шт.
1346221C1
VALVE
ASSEMBLY - anticavitation, for service order Ref. 11-14
1шт.
11
G34937
PLUG
- anticavitation valve
1шт.
12
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
13
G34458
SPRING,Compression, 5.08mm OD x 27.56mm L
- anticavitation valve
1шт.
14
G34938
VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L
POPPET - anticavitation valve
1шт.
1346219C2
PACKAGE
VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 15 - 19
2шт.
15
1343777C1
VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L
POPPET - hollow poppet pin with orifice, load check
1шт.
16
1346175C1
SPRING,Compression, 6.6mm OD x 21.93mm L
- load check
1шт.
17
1343708C1
PLUG
- load check
1шт.
18
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Plug -016, 90 Duro, .614" ID x .070" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
19
G103862
BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk
- backup, plug O-ring
2шт.
Part of Seal Kit, P/N 1346105C2
1шт.
G109391
VALVE
ASSEMBLY - circuit relief, 3200 psi, upper, boom section, used in production, order G109449 kit for service, Includes: Ref. 20 - 32
1шт.
The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.
1шт.
20
NSS
NOT SOLD SEPARAT
HOUSING - circuit relief valve
1шт.
21
NSS
NOT SOLD SEPARAT
SEAT - circuit relief valve
1шт.
22
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
23
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
- backup, seat O-ring
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
24
NSS
NOT SOLD SEPARAT
POPPET - circuit relief valve
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING - poppet
1шт.
26
NSS
NOT SOLD SEPARAT
SPRING - relief, outer
1шт.
27
NSS
NOT SOLD SEPARAT
SPRING - relief, inner
1шт.
28
NSS
NOT SOLD SEPARAT
PISTON - circuit relief valve
1шт.
29
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
30
484-43116
SET SCREW,Hex Soc, 5/16"-24 x 1"
SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point
1шт.
31
425-155
JAM NUT,Jam, 5/16"-24, G5
- hex, jam, 5/16 inch NF
1шт.
32
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Housing
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
1346023C1
VALVE
ASSEMBLY - circuit relief, lower, boom section, used in production, order G110077 kit for service, Includes: Ref. 33 - 45
1шт.
The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.
1шт.
33
NSS
NOT SOLD SEPARAT
HOUSING - circuit relief valve
1шт.
34
NSS
NOT SOLD SEPARAT
SEAT - circuit relief valve
1шт.
35
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
36
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
- backup, seat O-ring
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
37
NSS
NOT SOLD SEPARAT
POPPET - circuit relief valve
1шт.
38
NSS
NOT SOLD SEPARAT
O-RING - poppet
1шт.
39
NSS
NOT SOLD SEPARAT
SPRING - relief, outer
1шт.
40
NSS
NOT SOLD SEPARAT
SPRING - relief, inner
1шт.
41
NSS
NOT SOLD SEPARAT
PISTON - circuit relief valve
1шт.
42
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
43
484-43120
SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"
SCREW - set, hex socket headless, 5/16 NF x 1-1/4 inch, oval point
1шт.
44
425-155
JAM NUT,Jam, 5/16"-24, G5
- hex, jam, 5/16 inch NF
1шт.
45
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Housing
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
KIT
- service, for G109391 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve (Ref. 20-32), which is the same as G109391 except with a different pressure setting
1шт.
The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.
1шт.
G110077
KIT
- service, for 1346023C1 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve (Ref. 33-45), which is the same as 1346023C1 except with a different pressure setting
1шт.
The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.
1шт.
SEAL KIT
KIT - seal, Includes: Ref. 3, 4, 12, 18, 19, 22, 23, 32, 35, 36 and 45, plus additional O-rings not required for this application
1шт.
