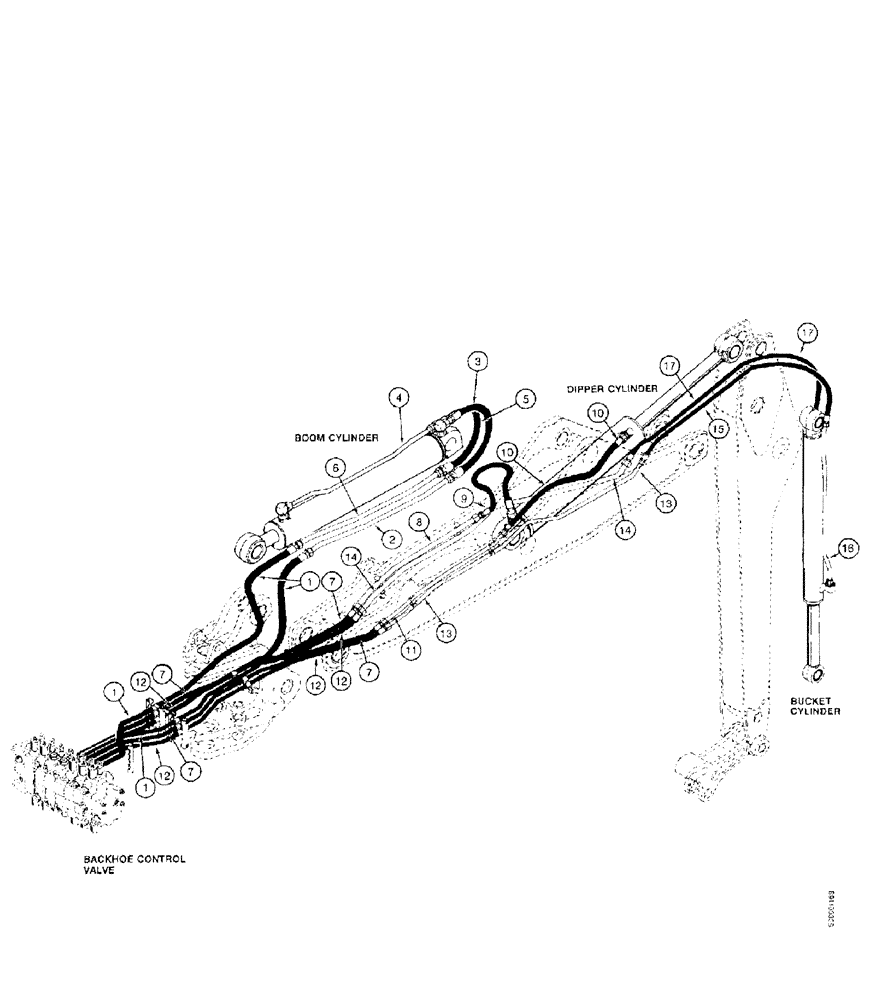

Запчасти Case 580SL (1-20) - PICTORIAL INDEX, BACKHOE HYDRAULICS, BOOM, DIPPER, AND BUCKET (00) - PICTORIAL INDEX

1

Hoses at control valve through swing tower to boom, PAGE 8-25

1шт.

2

Tube to boom cylinder closed end hose, PAGE 8-25

1шт.

3

Boom cylinder closed end hose, PAGE 8-25

1шт.

4

Boom cylinder rod end tube, PAGE 8-25

1шт.

5

Hose to boom cylinder rod end tube, PAGE 8-25

1шт.

6

Tube to boom cylinder rod end hose, PAGE 8-25

1шт.

7

Hoses at control valve through swing tower to boom for dipper, PAGE 8-27

1шт.

8

Tube to dipper cylinder closed end hose, PAGE 8-27

1шт.

9

Hose at dipper cylinder closed end, PAGE 8-27

1шт.

10

Hose at dipper cylinder rod end, PAGE 8-27

1шт.

11

Tube to dipper cylinder rod end hose, PAGE 8-27

1шт.

12

Hoses at control valve through swint tower to boom for bucket, PAGE 8-29

1шт.

13

Tube on right-hand side of boom, to bucket cylinder rod end hose, PAGE 8-29

1шт.

14

Tube on left-hand side of boom, to bucket cylinder closed end hose, PAGE 8-29

1шт.

15

Hose to bucket cylinder rod end tube, PAGE 8-29

1шт.

16

Bucket cylinder rod end tube, PAGE 8-29

1шт.

17

Hose at bucket cylinder closed end, PAGE 8-31

1шт.
