Запчасти Case 580SL (8-112) - BACKHOE CONTROL VALVE, BUCKET SECTION (08) - HYDRAULICS

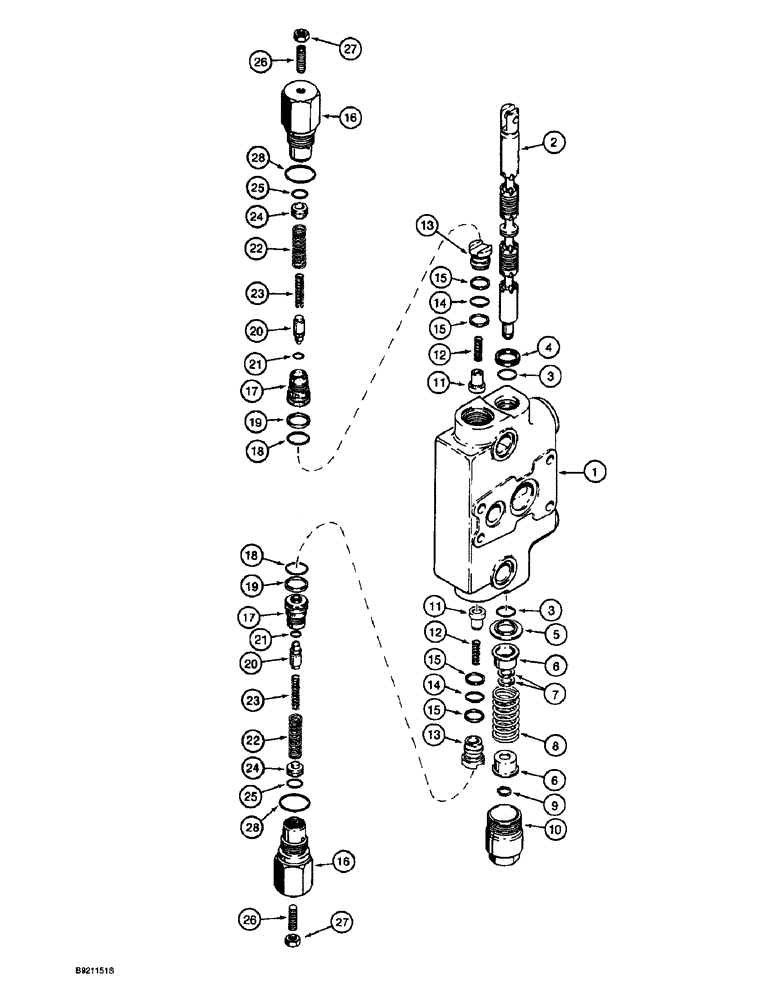

Схема запчастей Case 580SL - (8-112) - BACKHOE CONTROL VALVE, BUCKET SECTION (08) - HYDRAULICS
21
25
28
14
19
23
3
3
7
15
24
12
23
5
9
15
15
13
8
14
13
20
21
16
24
26
19
12
27
6
16
26
17
1
4
6
11
25
20
10
18
17
28
15
27
18
22
2
22
11

Артикул

Название

Примечание

Количество

129864A4

HYD VALVE SECTION

SECTION ASSEMBLY - bucket, with circuit relief valves, 6 spool valves; or 7 spool valves on tractor P.I.N. JJG0193620 and after, replaces 129864A2 and 129864A3 sections, Includes: Ref. 1 - 28

1шт.

121738A4

VALVE

SECTION ASSEMBLY - bucket, with circuit relief valves, 7 spool valves prior to tractor P.I.N. JJG0193620, replaces 121738A2 and 121738A3 sections, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

G106410

SPACER

- spool

2шт.

8

1994596C1

SPRING

- centering, purple, 2-15/16 inch free length, spool

1шт.

9

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end (Replaces G33077) #47, Ext

1шт.

10

G33080

CAP

- centering spring, spool end

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 11 - 15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, load check

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

13

1343708C1

PLUG

- load check

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

129861A1

VALVE

ASSEMBLY - circuit relief, bucket section, used in production, order G110077 kit for service, Includes: Ref. 16 - 28

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 1/2 ID x 1/16 inch wide

1шт.

26

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

27

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

1346105C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 14, 15, 18, 19, and 28, plus additional O-rings not required for this application

1шт.

G110077

KIT

- service, for 129861A1 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve (Ref. 16-28), which is the same as 129861A1 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.
