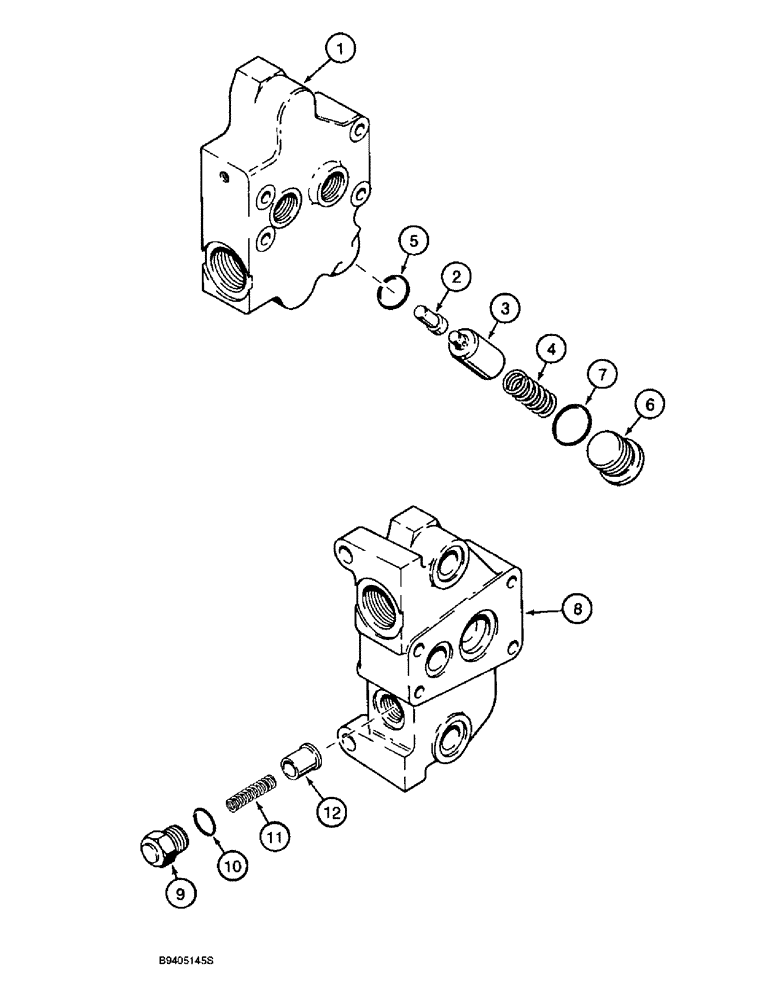

Запчасти Case 580SL (8-110) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTIONS (08) - HYDRAULICS

113248A1

ELEMENT

SECTION ASSEMBLY - outlet, 6 spool valves; or 7 spool valves on tractor P.I.N. JJG0193620 and after, Includes: Ref. 1 - 7

1шт.

122175A1

VALVE

SECTION ASSEMBLY - outlet, 7 spool valves prior to tractor P.I.N. JJG0193620, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - section body, outlet

1шт.

2

G108902

PISTON

- regeneration sensing, outlet section

1шт.

3

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration, outlet section

1шт.

4

G33112

SPRING

- regeneration spool, outlet section

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Outlet section -118, 70 Duro, .862" ID x .103" Thk

1шт.

6

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, outlet section, Includes Ref 7

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk, Outlet section

1шт.

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY - inlet, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

1346221C1

VALVE

ASSEMBLY - anticavitation, for service order Ref. 9-12

1шт.

9

G34937

PLUG

- check valve

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- check valve

1шт.

12

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - check valve

1шт.
