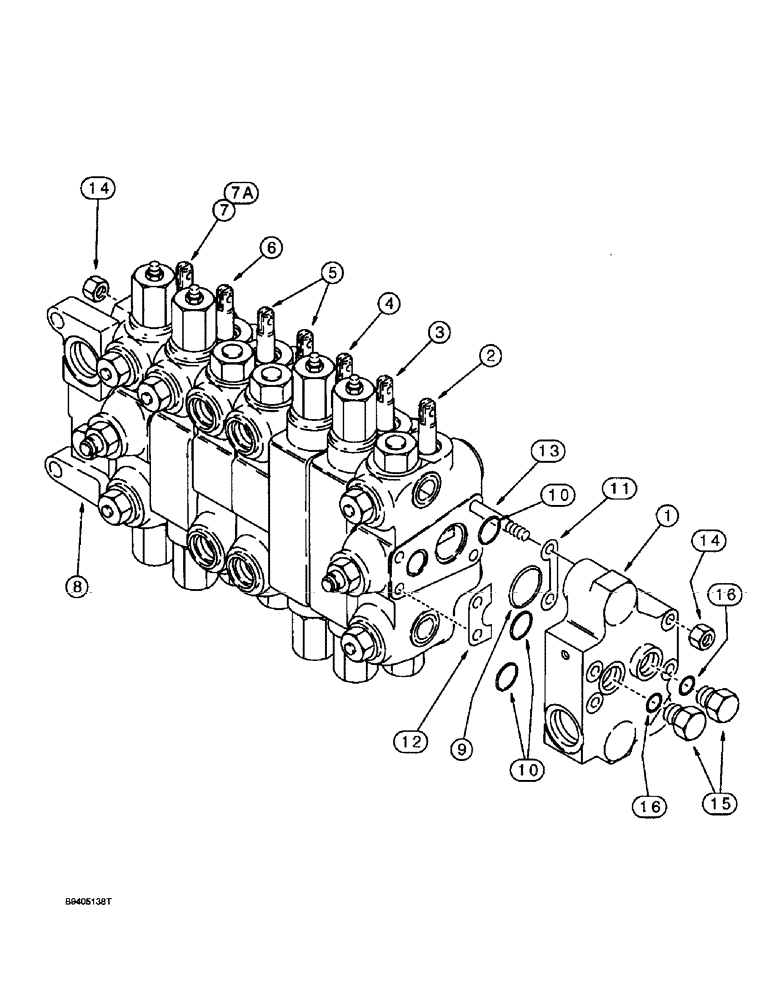

Запчасти Case 580SL (8-104) - BACKHOE CONTROL VALVES, MODELS W/EXTENDABLE DIPPER OR AUX HYD, PRIOR TO TRACTOR P.I.N. JJG0193620 (08) - HYDRAULICS

108438A3

VALVE

ASSEMBLY - backhoe control, 7 spool, foot swing, replaces 108438A2 valve, with priority flow from extendahoe priority system, Includes: Ref. 1 - 16

1шт.

121940A3

DISTRIBUTOR

VALVE ASSEMBLY - backhoe control, 7 spool, hand swing, replaces 121940A2 valve, with priority flow from extendahoe priority system, Includes: Ref. 1 - 16

1шт.

1

122175A1

VALVE

SECTION ASSEMBLY - outlet, parts list Figure 8-110

1шт.

2

121739A5

VALVE

SECTION ASSEMBLY - dipper extension, parts list Figure 8-130, replaces 121739A2, 121739A3 and 121739A4 sections

1шт.

3

121738A4

VALVE

SECTION ASSEMBLY - bucket, parts list Figure 8-112, replaces 121738A2 and 121738A3 sections

1шт.

4

136610A5

HYD VALVE SECTION

SECTION ASSEMBLY - dipper, parts list Figure 8-114, replaces 136610A2, 136610A3 and 136610A4 sections

1шт.

5

253989A2

HYD VALVE SECTION

SECTION ASSEMBLY - stabilizer, left-hand and right-hand, parts list Figure 8-116, replaces G109567 and 253989A1 sections

2шт.

6

122853A6

HYD VALVE SECTION

SECTION ASSEMBLY - boom, parts list Figure 8-118, replaces 122853A3, 122853A4 and 122853A5 sections

1шт.

7

122854A6

HYD VALVE SECTION

SECTION ASSEMBLY - swing, foot swing control valve, parts list Figure 8-122, replaces 122854A2, 122854A3, 122854A4 and 122854A5 sections

1шт.

7a

120046A6

VALVE SECTION

SECTION ASSEMBLY - swing, hand swing control valve, parts list Figure 8-122, replaces 120046A2, 120046A3, 120046A4 and 120046A5 sections (casting #116391A1)

1шт.

8

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY - inlet, parts list Figure 8-110

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

8шт.

Part of Seal Kit, P/N 1346107C2

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

24шт.

Part of Seal Kit, P/N 1346107C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section 0.051mm Thk

8шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section 0.051mm Thk

8шт.

13

G108899

ROD

- tie, 3/8 NC x 18-15/16 inch

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

1346107C2

SEAL KIT

KIT - seal, Includes: Ref. 9 and 10, plus additional O-rings not required for this application

1шт.
