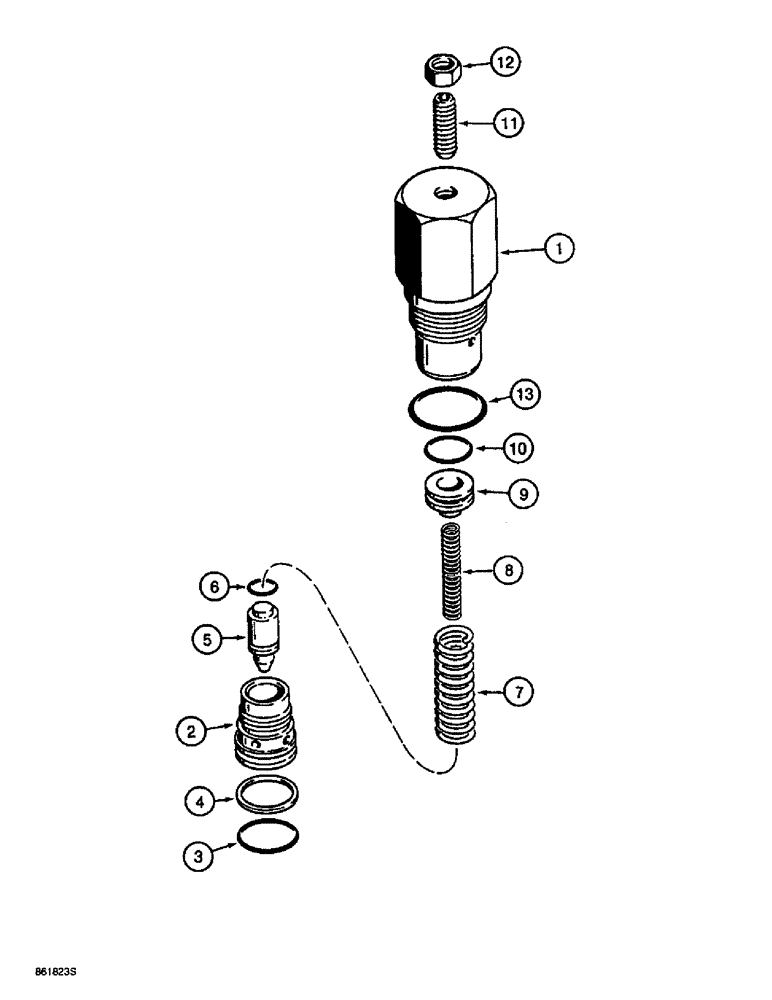

Запчасти Case 580SL (8-098) - LOADER CONTROL VALVE, BUCKET SECTION CIRCUIT RELIEF VALVE (08) - HYDRAULICS

G109391

VALVE

ASSEMBLY - circuit relief, 3200 psi, one piece cap, used in production, order G109449 kit for service, Includes: Ref. 1 - 13

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

11

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

G109449

KIT

- service, for G109391 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve (Ref.1-13) which is the same as G109391 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.
