Запчасти Case 580SL (8-092) - LOADER CONTROL VALVE, LIFT SECTION, WITH MANUAL DETENT (08) - HYDRAULICS

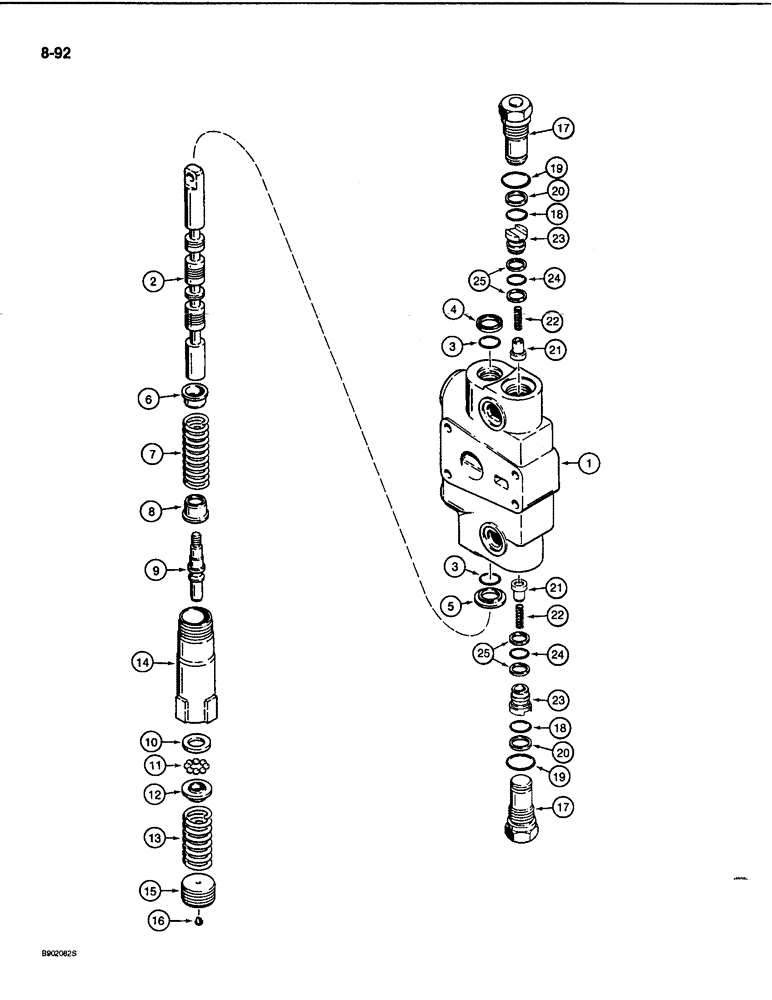

Схема запчастей Case 580SL - (8-092) - LOADER CONTROL VALVE, LIFT SECTION, WITH MANUAL DETENT (08) - HYDRAULICS
20
24
3
24
8
23
18
20
4
15
12
13
17
2
11
25
19
10
3
6
25
19
16
21
1
5
17
14
21
7
18
22
22
9
23

Артикул

Название

Примечание

Количество

113793A4

VALVE SECTION

SECTION ASSEMBLY - lift, with manual detent, replaces 113793A2 and 113793A3 sections, Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - lift section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring, upper, small

1шт.

7

1986612C1

SPRING,Compression, 28.575mm OD x 72.74mm L

- centering, spool

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

SEAT - centering spring, lower, large

1шт.

9

G106396

SHAFT,74.68mm L

- detent

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

- detent, ball retainer

1шт.

11

211-1009

BALL

- chrome alloy steel, 9/32 inch, grade 24

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

- ball stop

1шт.

13

1986568C1

SPRING,Compression, 31.24mm OD x 45.64mm L

- detent

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

- detent

1шт.

15

G109384

PLUG,3/8" - 18

- detent housing

1шт.

16

G107780

VALVE, CHECK

PLUG - check, detent plug

1шт.

G33122

PLUG,ORB

ASSEMBLY - load check valve port, Includes: Ref. 17 - 20

2шт.

17

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

20

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 21 - 25

2шт.

21

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, load check

1шт.

22

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

23

1343708C1

PLUG

- load check

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

25

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

1346105C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 18, 19, 20, 24 and 25, plus additional O-rings not required for this application

1шт.

Выбрано товаров: 36
