Запчасти Case 580SL (8-090) - LOADER CONTROL VALVE, BUCKET SECTION - WITH MAGNETIC DETENT, AND CIRCUIT RELIEF VALVE (08) - HYDRAULICS

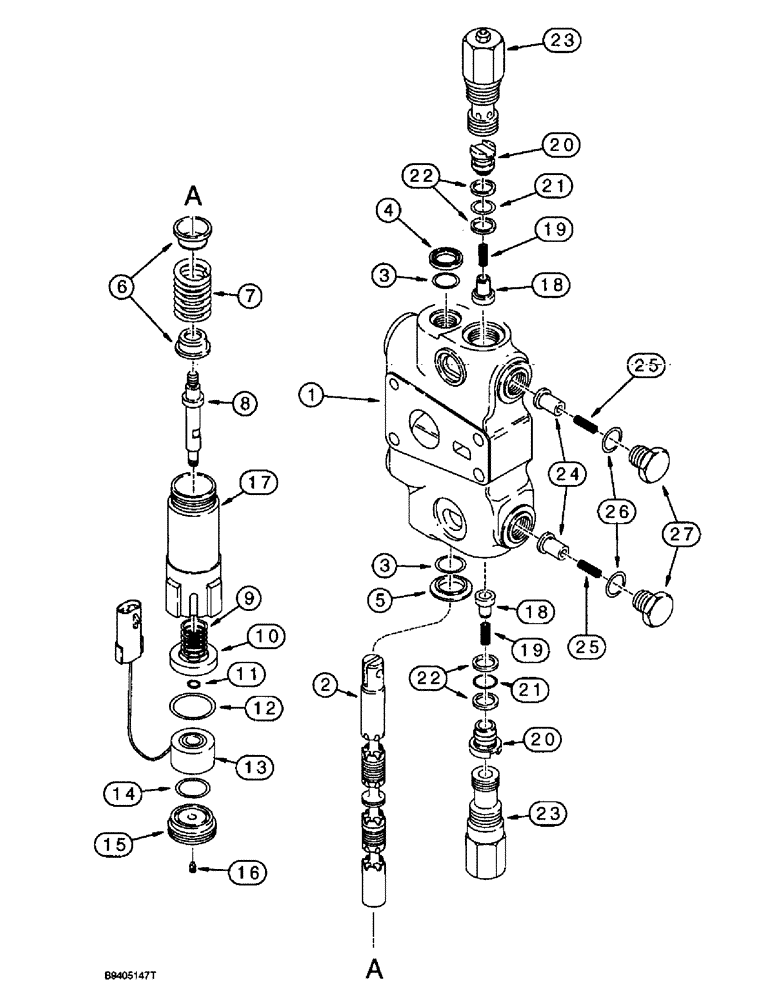

Схема запчастей Case 580SL - (8-090) - LOADER CONTROL VALVE, BUCKET SECTION - WITH MAGNETIC DETENT, AND CIRCUIT RELIEF VALVE (08) - HYDRAULICS
23
15
14
22
22
17
25
18
8
13
4
6
5
21
3
26
18
3
7
20
24
20
2
1
16
21
12
19
10
19
25
23
27
11
9

Артикул

Название

Примечание

Количество

113786A6

VALVE

SECTION ASSEMBLY - bucket, with magnetic detent and circuit relief valves, replaces 113786A3, 113786A4 and 113786A5 sections, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

1994596C1

SPRING

- centering, purple, 2-15/16 inch free length, spool, used in 113786A3 section, if used

1шт.

7

1986611C1

SPRING

- centering, white, 2-5/16 inch free length, spool, used in 113786A4, 113786A5 or 113786A6 sections

1шт.

8

118318A1

TAPPET

SHAFT - magnetic detent

1шт.

9

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

- detent washer

1шт.

10

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

- detent

1шт.

11

100-1125

SNAP RING,#25, Ext

Ring, Snap, , washer #25, Ext

1шт.

12

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

13

120148A2

MAGNET

- with connector

1шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

15

122330A1

PLUG,9/16" - 18

- magnetic detent

1шт.

16

G107780

VALVE, CHECK

PLUG - check, magnetic detent

1шт.

17

113787A3

BODY

HOUSING - magnetic detent, replaces 113787A2 housing

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 18 - 22

2шт.

18

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice

1шт.

19

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

20

1343708C1

PLUG

- load check

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1346105C2

1шт.

22

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of Seal Kit, P/N 1346105C2

1шт.

23

G109391

VALVE

ASSEMBLY - circuit relief, 3200 psi, one piece cap, used in production, parts list Figure 8-098, order G109449 circuit relief valve kit for service, see Figure 8-098 for kit

2шт.

129735A1

VALVE

ASSEMBLY - anticavitation, Includes: Ref. 24 - 27

2шт.

24

129698A1

VALVE POPPET

POPPET - anticavitation

1шт.

25

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

129699A1

PLUG

- anticavitation

1шт.

1346105C2

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 21 and 22, plus additional O-rings not required for this application

1шт.

Выбрано товаров: 36
