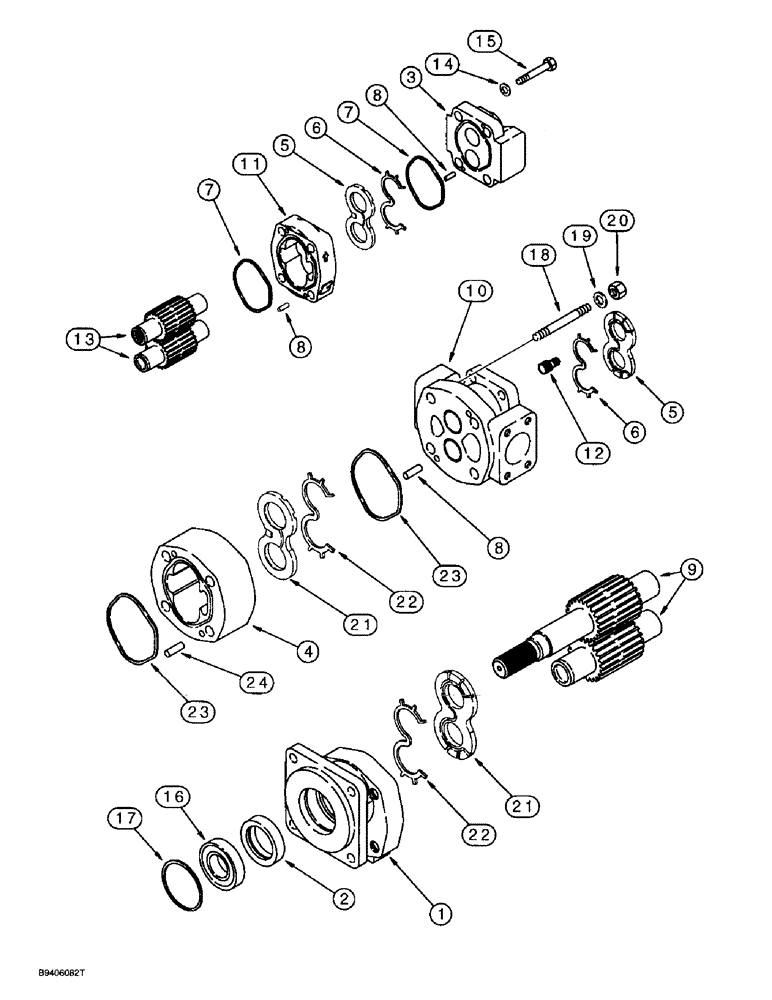

Запчасти Case 580SL (8-082) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

121124A2

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic equipment, 15 teeth shaft gear set, used with Ref 40 coupler seal on Figure 8-002 and 253541A1 flex coupling on Figure 8-002, replaces 121124A1 pump, if used, Includes: Ref. 1 - 24

1шт.

257954A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic equipment, 17 teeth shaft gear set, used with 257948A1 flex coupling on Figure 8-002, if used; No Longer Available, Order 87433897 Complete Pump, 87437920 Coupling, 87429360 Adapter Plate, Includes: Ref. 1 - 24

1шт.

NLB SB 002 2004 Before Installing, N.A. Only

1шт.

87433897R

REMAN-HYD PUMP

580SL - LOADER BACKHOE - Reman For New P/N 257954A1, See Service Bulletin

1шт.

87433897C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

2

L32318

SEAL

- shaft

1шт.

Part of Seal Kit, P/N 293924A1

1шт.

Part of Seal Kit, P/N 178847A1

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - closed end

1шт.

4

142733A1

HOUSING

- gear, shaft end

1шт.

5

111594A1

LARGE PLATE

PLATE - thrust, closed end

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

Part of Seal Kit, P/N 178847A1

1шт.

6

111595A1

SEAL

RETAINER - wear plate, closed end, 121124A1 or 121124A2 pump

2шт.

Part of Seal Kit, P/N 178847A1

1шт.

6

293926A1

SEAL

- used with 293925A1 backup seal, not shown, 257954A1 pump

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

6

293925A1

SEAL

- backup, used with 293926A1 seal, not shown, 257954A1 pump

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

7

111596A1

SEAL

- square ring, 3-1/4 ID x 3/32 inch wide, housing, closed end

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

Part of Seal Kit, P/N 178847A1

1шт.

8

111597A1

ELEC. TERMINAL PIN

PIN - dowel, 1/4 x 1/16 inch, closed end, gear housing

4шт.

9

NSS

NOT SOLD SEPARAT

SET - gear, shaft end, 15 teeth, one inch diameter shaft spline, 121124A1 or 121124A2 pump

1шт.

9

NSS

NOT SOLD SEPARAT

SET - gear, shaft end, 17 teeth, 1-1/8 inch diameter shaft spline, 257954A1 pump

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - center, with ports

1шт.

11

142735A1

HOUSING

- gear, closed end, pump

1шт.

12

111593A1

SHAFT

- connecting

1шт.

13

NSS

NOT SOLD SEPARAT

SET - gear, closed end

1шт.

14

111588A1

WASHER

- flat, special, 17/32 x 15/16 x 3/16 inch

4шт.

15

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch, grade 8

4шт.

16

S88754

BALL BEARING

BEARING - ball, sealed

1шт.

17

S88756

SNAP RING,#283, 3.009", Int, Spiral

RING - snap, retaining, spring lock

1шт.

18

142734A1

STUD

- 5/8 NC x 5 inch

4шт.

19

19-488

WASHER

- flat

4шт.

20

429-1010

NUT,5/8"-11, G8

4шт.

21

111589A1

LARGE PLATE

PLATE - thrust, shaft end

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

Part of Seal Kit, P/N 178847A1

1шт.

22

111590A1

SEAL

RETAINER - wear plate, shaft end, 121124A1 or 121124A2 pump

2шт.

Part of Seal Kit, P/N 178847A1

1шт.

22

293927A1

SEAL

- used with 293928A1 backup seal, not shown, 257954A1 pump

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

22

293928A1

SEAL

- backup, used with 293927A1 seal, not shown, 257954A1 pump

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

23

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

- square ring, 4-31/64 ID x 1/8 inch wide, shaft end

2шт.

Part of Seal Kit, P/N 293924A1

1шт.

Part of Seal Kit, P/N 178847A1

1шт.

24

W16323

DOWEL

PIN - dowel, shaft end

4шт.

178847A1

SEAL KIT

KIT - seal, Includes: Ref. 2, 5, 6 P/N111595A1, 7, 21, 22 P/N 111590A1 and 23, 121124A1 or 121124A2 pump

1шт.

293924A1

SEAL KIT

KIT - seal, Includes: Ref. 2, 5, 6 P/N 293926A1, 6 P/N 293925A1, 7, 21, 22 P/N 293927A1, 22 P/N 293928A1 and 23, 257954A1 pump

1шт.
