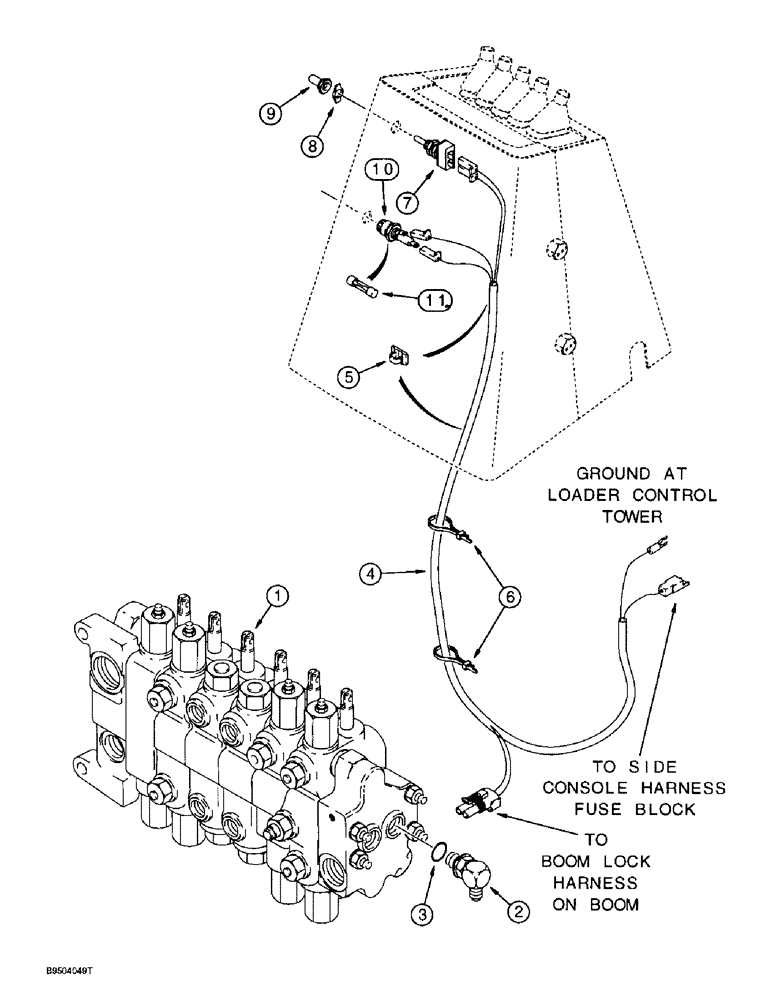

Запчасти Case 580SL (8-074) - BACKHOE BOOM LOCK HYDRAULIC, AND ELECTRICAL CIRCUIT, AT CONTROL TOWER AND BACKHOE VALVE (08) - HYDRAULICS

189111A1

KIT

- backhoe boom lock, Includes: Ref. 1 - 11, parts on Figure 8-076, L111356 decal on Figure 9-138 and an instruction sheet, order components

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figures 8-100 - 8-108, for valve mounting see Figure 8-022

1шт.

Not included in 189111A1 kit, purchase separately.

1шт.

2

189414A1

ELBOW

- 90 degree, adjustable, see Figure 8-076 for attaching hose, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

189601A1

HARNESS

- boom lock, at control tower to fuse block on side console harness

1шт.

5

L100659

CLIP

- harness

2шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

7

D67251

SWITCH

- toggle, boom lock

1шт.

8

L105735

PLATE ASSY.

PLATE - trim

1шт.

9

L101998

BOOT

- toggle switch

1шт.

10

376852R91

HOUSING

HOLDER - fuse, includes cap, at backhoe control tower

1шт.

11

223-26

FUSE,5 Amp, Type 3AG

- 3AG, 5 ampere, boom lock

1шт.
