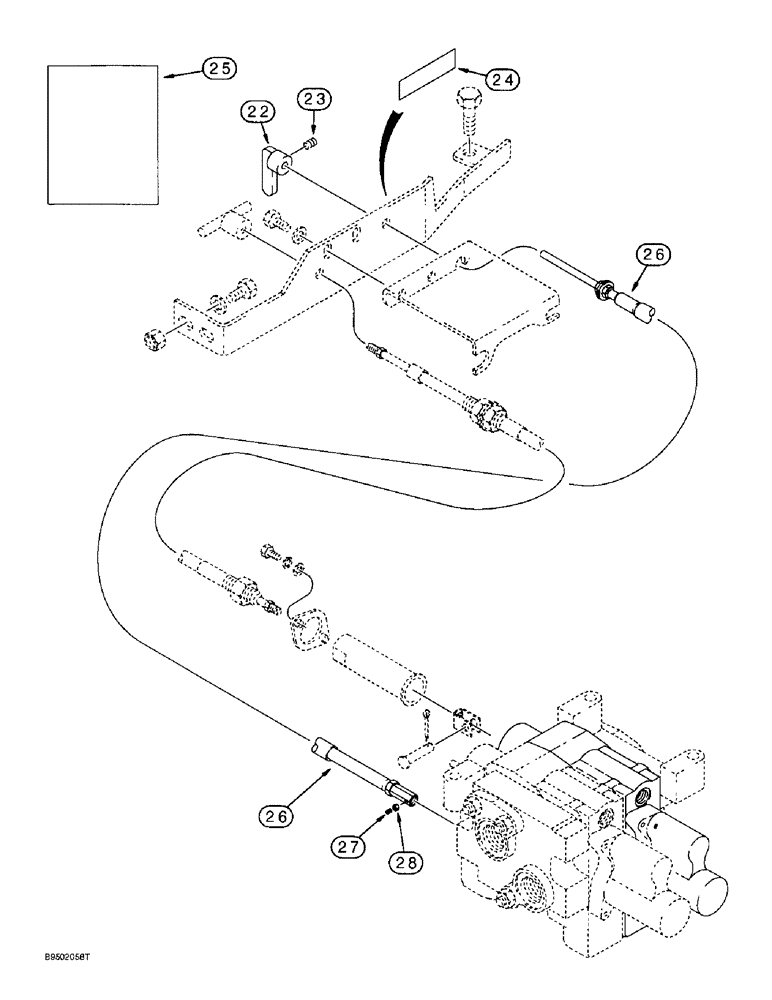

Запчасти Case 580SL (8-070) - HAND HELD AUXILIARY HYDRAULICS, CONTROL CABLES TO AUXILIARY VALVE (08) - HYDRAULICS

22

139230A1

HANDLE

KNOB - rotary, flow control

1шт.

23

83-1108

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - set, hex socket headless, No. 10 NC x 1/2 inch, cup point, flow control knob

1шт.

24

179683A1

DECAL

- hand held auxiliary hydraulics, control panel plate, see Figure 9-136 for decal

1шт.

25

192300A1

DECAL

- remote auxiliary hydraulics, inside left-hand door on side of steering wheel panel, see Figure 9-136 for decal

1шт.

26

123943A1

CABLE

- flow control, rotary, upper auxiliary valve spool

1шт.

27

84-2106

SET SCREW,Hex Soc, #10-32 x 3/8"

SCREW - set, hex socket headless, No. 10 NF x 3/8 inch, cone point

1шт.

28

225-14210

NUT,#10-32

1шт.
