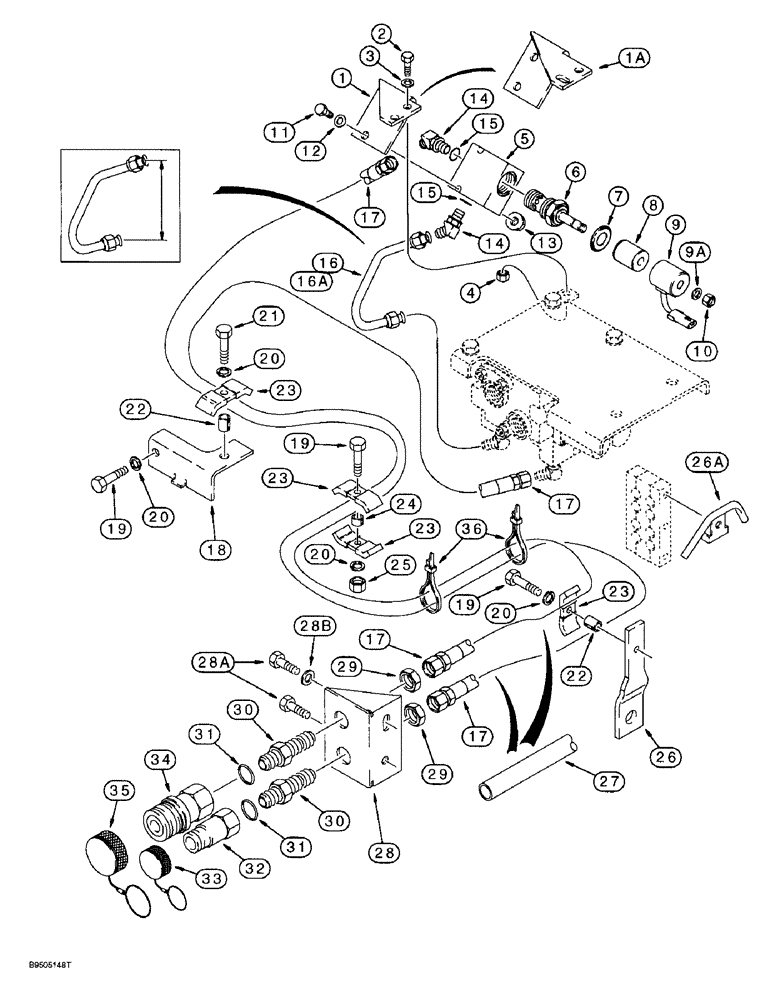

Запчасти Case 580SL (8-062) - BACKHOE AUXILIARY HYDRAULICS, AUXILIARY VALVE TO QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

1

188125A1

SUPPORT

BRACKET - solenoid valve mounting, attaches to auxiliary valve bracket, used with item 16 tube, if used

1шт.

1a

199870A1

SUPPORT

BRACKET - solenoid valve mounting, attaches to auxiliary valve bracket, used with item 16A tube, if used

1шт.

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

141475A1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

6

195679A1

VALVE

- solenoid

1шт.

7

195680A1

WASHER

PLATE - cover

1шт.

8

195681A1

COIL

- solenoid

1шт.

9

195682A1

HOUSING

- solenoid coil

1шт.

9a

NSS

NOT SOLD SEPARAT

WASHER - flat, special

1шт.

10

195683A1

JAM NUT,1/2"-20

Coil to valve 1/2"-20, Thin

1шт.

11

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

- HH, CL 8.8, M8 x 1.25 x 70

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Replaces 896-12008 hardened washer used on some models

2шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

14

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj.O-ring, Incl. Ref 15

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

16

188305A1

TUBE,15.88 mm OD, 160.82, 101.42 mm Length

- auxiliary valve to solenoid valve, 6-11/32 inch (160.82 mm) long at dimension shown in illustration box, see Figure 8-044 or 8-054 for fittings at auxiliary valve, used with Ref. 1 bracket, if used

1шт.

16a

199863A1

TUBE

- auxiliary valve to solenoid valve, 6-25/32 inch (172.44 mm) long at dimension shown in illustration box, see Figure 8-044 or 8-054 for fittings at auxiliary valve, used with Ref. 1A bracket, if used

1шт.

17

179896A1

HOSE

- 3140 mm (123-5/8 inch) long, auxiliary valve and solenoid valve to boom, see Figure 8-044 or 8-054 for fittings at auxiliary valve

2шт.

18

176852A1

SUPPORT

BRACKET - hose mounting at chassis backhoe frame

1шт.

19

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10-1.5 x 40 mm

3шт.

20

892-11010

LOCK WASHER,M10

4шт.

21

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

22

131600A1

SPACER

- clamp

2шт.

23

D42833

CLAMP

- hose at swing tower

4шт.

24

131601A1

SPACER

- clamp

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

26

139125A1

SUPPORT

BRACKET - hose mounting at swing tower

1шт.

26a

144203A1

BRACKET

- hose clamp, mounts to swing tower vertical hose clamps with existing hardware

1шт.

27

179861A1

PROTECTIVE SLEEVE

SLEEVE - hose guard

2шт.

28

144642A1

SUPPORT

BRACKET - hose and coupling support

1шт.

28a

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

- hex, 12-1.75 x 85 mm

2шт.

28b

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Upper Mounting Hole M13.5 x 24.5 x 3, HT

1шт.

29

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

30

126155A1

FITTING

CONNECTOR - straight, bulkhead

2шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

32

122178A2

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male, component parts not serviced, replaces 123536A1 and 122178A1 coupling

1шт.

33

137344A1

PLUG

CAP - male coupling, aluminum, if used

1шт.

33

193262A1

PLUG

CAP - male coupling, black rubber, if used

1шт.

34

122179A1

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female, component parts not serviced, replaces 123537A1 coupling

1шт.

35

137343A1

PLUG

CAP - female coupling, aluminum, if used

1шт.

35

193261A1

PLUG

CAP - female coupling, black rubber, if used

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.
