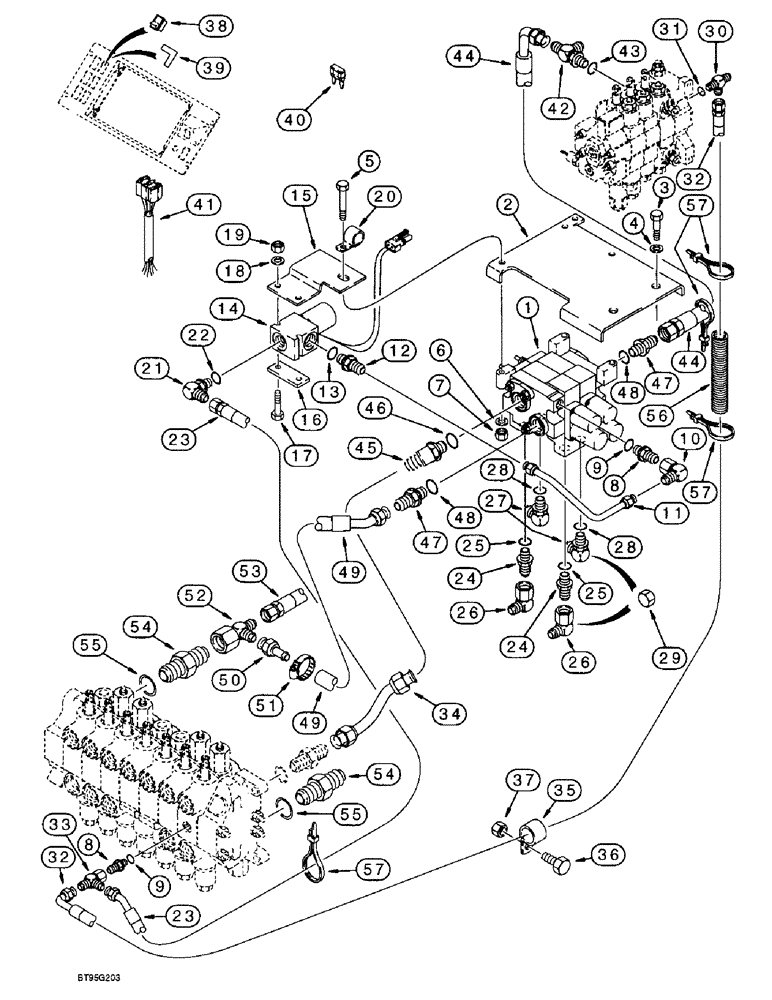

Запчасти Case 580SL (8-054) - BASIC AUXILIARY HYDRAULICS, MODELS WITH OR W/O EXTENDABLE DIPPER, TRACTOR P.I.N. JJG0193620 & AFTER (08) - HYDRAULICS

1

121740A2

VALVE, CONTROL

VALVE ASSEMBLY - auxiliary, parts list Figure 8-134

1шт.

2

224788A1

SUPPORT

BRACKET - auxiliary valve, Serial Range: mounting-chassis

1шт.

3

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10-1.5 x 70 mm

3шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

3шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 9

2шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

11

175276A1

TUBE,9.53 mm OD

- auxiliary valve to solenoid valve inlet

1шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

137012A1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, component parts are not serviced separately

1шт.

15

137713A1

SUPPORT

BRACKET - solenoid mounting

1шт.

16

136977A1

LARGE PLATE

PLATE - solenoid valve mounting

1шт.

17

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

- hex, 6 - 1.0 x 60 mm

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces 515-2379, 5/16" ID clamp 1/2", Insul, 3/8" Bolt

1шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

222676A1

HOSE

- 750 mm (29-17/32 inch) long, solenoid valve outlet to tee at swing signal port

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, backhoe section of auxiliary valve, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel, backhoe section of auxiliary valve, see backhoe auxiliary hydraulics Figure 8-062 for attaching hoses

2шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, hand held section of auxiliary valve, see hand held hydraulics on Figure 8-068 for attaching hoses, Incl. Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

218-756

CAP,37 Degree, 7/8"-14

If used, not required when hydraulic hoses for hand held or backhoe auxiliary hydraulics are attached to fittings 37º, 7/8"-14

2-4шт.

30

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, loader valve inlet section, see Figure 5-04 for attaching steering hose, Includes: Ref. 31

1шт.

32

221553A1

HOSE

- 1860 mm (73-1/4 inch) long, signal, backhoe valve swing section to loader control valve inlet section

1шт.

33

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel, backhoe control valve swing signal port

1шт.

34

225835A1

TUBE,15.88 mm OD

- fitting at swing inlet port to auxiliary valve inlet port

1шт.

35

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

P-type, If used 5/8", Insul, 1/2" Bolt

1шт.

36

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used Hex, M10 x 25, 8.8, Full Thd

1шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

If Used M10, Cl 10

1шт.

38

191532A1

SWITCH

- rocker, includes green lens, auxiliary hydraulics

1шт.

39

192299A1

DECAL

- auxiliary hydraulics, switch on instrument panel, see Figure 9-136 for decal

1шт.

40

121413A1

FUSE,15A, Mini, Blue

1шт.

41

187013A1

HARNESS

- auxiliary hydraulics, attaches to foot switch, solenoid valves and cab harness

1шт.

42

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

- 3/4-16 fl branch x 1-1/16-12 fl x 7/8-14 inch adj O-ring, at loader valve inlet section lower port, see Figure 5-04 for attaching steering hose, Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

243338A1

HOSE

- 910 mm (35-7/8 inch) long, loader valve inlet section lower port to auxiliary valve port, replaces 221377A1 910 mm long hose

1шт.

45

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, auxiliary valve inlet, Incl. Ref 46

1шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

47

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, outlet port at auxiliary valve, Incl. Ref. 48

2шт.

48

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

49

221378A1

HOSE ASSY.

HOSE - 400 mm (15-3/4 inch) long, auxiliary valve outlet port to tee at backhoe control valve outlet section port

1шт.

50

221379A1

TUBE,19.05 mm OD

- at backhoe valve outlet section tee

1шт.

51

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Tube to hose #16, 0.81/1.50 Type F Worm

1шт.

52

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

- 1-1/16-12 flare branch x 1-5/16-12 inch flare x swivel, at backhoe valve outlet section, between hose to hydraulic oil filter and 218-5069 adapter, see Figure 8-008 for hose and fittings to hydraulic oil filter

1шт.

53

144229A1

HOSE

- 775 mm (30-1/2 inch) long, return, backhoe control valve to filter, see Figure 8-008 for adapter

1шт.

54

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 55

2шт.

55

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

56

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE - hose guard

1шт.

57

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
