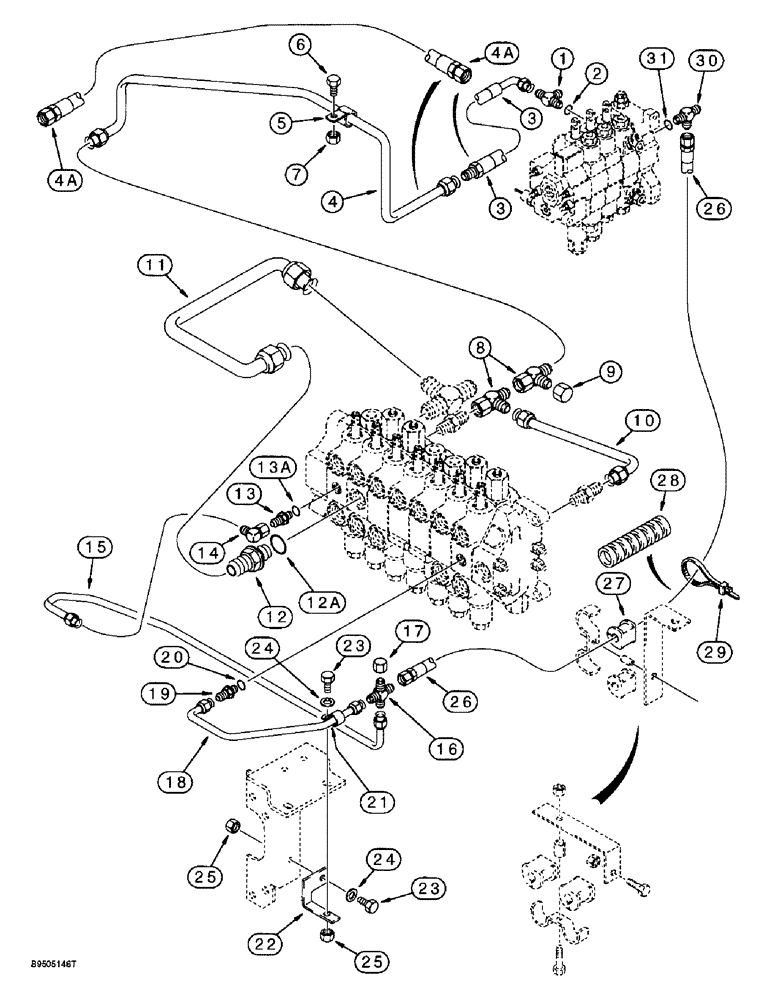

Запчасти Case 580SL (8-040) - LOADER VALVE TO BACKHOE VALVE HYDRAULIC CIRCUIT, MODELS W/EXTENDABLE DIPPER W/O AUXILIARY HYDRAULICS (08) - HYDRAULICS

1

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, inlet section lower port, for 45 degree elbow used with this tee on models with ride control, see Figure 8-078, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

144238A1

HOSE

- 560 mm (22 inch) long, swing supply, loader valve inlet section lower port, no longer available, for service replace item 3 hose and item 4 tube with 188126A1 hose, item 4A

1шт.

If the hose and tube (Refs. 3 and 4) combination is on models with auxiliary hydraulics, be sure to replace them with Ref. 4A hose.

1шт.

4

136013A1

TUBE,496, 438 mm Length

- swing supply, from hose at loader valve lower inlet port to tee at inlet port of backhoe valve extendahoe section, no longer used, for service replace item 3 hose and item 4 tube with 188126A1 hose, item 4A

1шт.

If the hose and tube (Refs. 3 and 4) combination is on models with auxiliary hydraulics, be sure to replace them with Ref. 4A hose.

1шт.

4a

188126A1

HOSE

- 1650 mm (65 inch) long, swing supply, loader valve inlet section lower port to tee at inlet port of backhoe valve extendahoe section, replaces the hose and tube (items 3 and 4) combination

1шт.

If the hose and tube (Refs. 3 and 4) combination is on models with auxiliary hydraulics, be sure to replace them with Ref. 4A hose.

1шт.

5

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type, Mounts to oil filter mounting bracket 1 1/8", Insul, 3/8" Bolt

1шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

8

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel, attaches to extendahoe section inlet port load check valve, Ref. 15 on Figure 8-130

2шт.

9

218-756

CAP,37 Degree, 7/8"-14

1шт.

10

136015A1

TUBE,15.88 mm OD, 268, 77 mm Length

- swing connection, attaches to swing section inlet port load check valve, Ref. 15 on Figure 8-122

1шт.

11

188975A1

TUBE

- bucket return, outlet port to bucket section, see Figure 8-008, Ref. 7A for tee at outlet port, replaces 123685A1 tube

1шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 12A

1шт.

12a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

13

179189A1

VALVE POPPET

VALVE - check, at extendahoe section center port, Includes: Ref. 13A

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

15

181334A1

TUBE

- pilot, extendahoe section center port to signal hose cross

1шт.

16

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - hydraulic, 9/16-18 flare, four-way

1шт.

17

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

1шт.

18

136023A1

TUBE,9.53 mm OD, 252, 194 mm Length

- pilot, backhoe valve swing section center port to signal hose cross

1шт.

19

179189A1

VALVE POPPET

VALVE - check, at swing section center port, Includes: Ref. 20

1шт.

21

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

22

137839A1

SUPPORT

BRACKET - mounting, attaches to left-hand control valve mounting bracket

1шт.

23

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm, If used

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

26

192693A1

HOSE

- 1490 mm (58-11/16 inch) long, signal, backhoe control valve swing section to loader control valve inlet section

1шт.

27

D143797

SHOCK ABSORBER

INSULATOR - 5/8 inch, tube, signal hose, see Figure 8-006, Ref. 17, 19, 20A, 25-27, and 29 for tube clamping used on models with extendable dipper and alternate mounting configuration

1шт.

28

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE - hose guard

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

30

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, loader valve inlet section, Includes: Ref. 31

1шт.

32

D42833

CLAMP

- hose

2шт.

33

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10-1.5 x 40 mm

1шт.

34

131601A1

SPACER

- clamp

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
