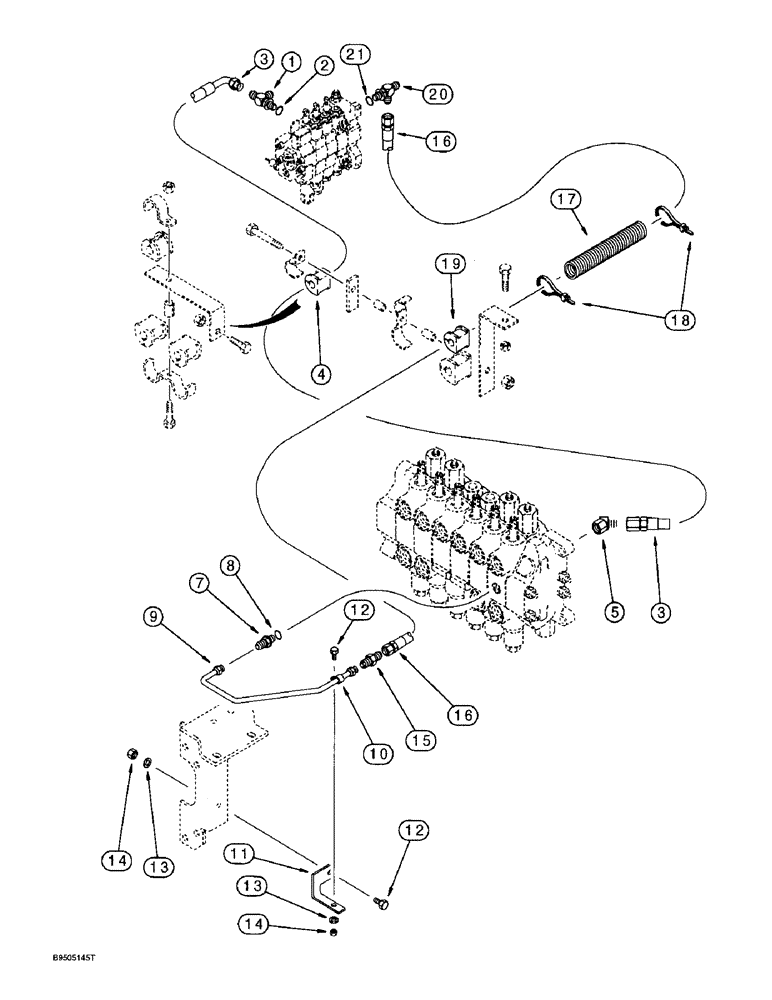

Запчасти Case 580SL (8-038) - LOADER VALVE TO BACKHOE VALVE HYDRAULIC CIRCUIT, MODELS W/O EXTENDABLE DIPPER W/O AUXILIARY HYD. (08) - HYDRAULICS

1

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, inlet section lower port, for 45 degree elbow used with this tee on models with ride control, see Figure 8-078, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

144236A1

HOSE

- 1180 mm (46-1/2 inch) long, swing supply, loader valve inlet section lower port to backhoe valve swing section

1шт.

4

D67297

BLOCK

INSULATOR - rubber, hose, see Figure 8-006, Ref. 17-29, for mounting hardware and alternate mounting configuration

1шт.

5

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree, 7/8-14 inch flare x swivel, at backhoe valve swing section

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 8

1шт.

9

136023A1

TUBE,9.53 mm OD, 252, 194 mm Length

- pilot, backhoe valve swing section center port to loader control valve inlet section

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

11

137839A1

SUPPORT

BRACKET - mounting, attaches to left-hand control valve mounting bracket

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm, If used

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

15

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, 9/16-18 inch flare, see Ref. 18 tee on Figure 8-050 or 8-052 for fitting used on models with auxiliary hydraulics

1шт.

16

192693A1

HOSE

- 1490 mm (58-11/16 inch) long, signal, backhoe control valve swing section to loader control valve inlet section

1шт.

17

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE - hose guard

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

19

D143797

SHOCK ABSORBER

INSULATOR - 5/8 inch, hose, see Figure 8-006, Ref. 17-29, for power beyond hose and mounting hardware and alternate mounting configuration

1шт.

20

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, loader valve inlet section and steering pilot hose, see Figure 5-04 for steering hose, Includes: Ref. 21

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
