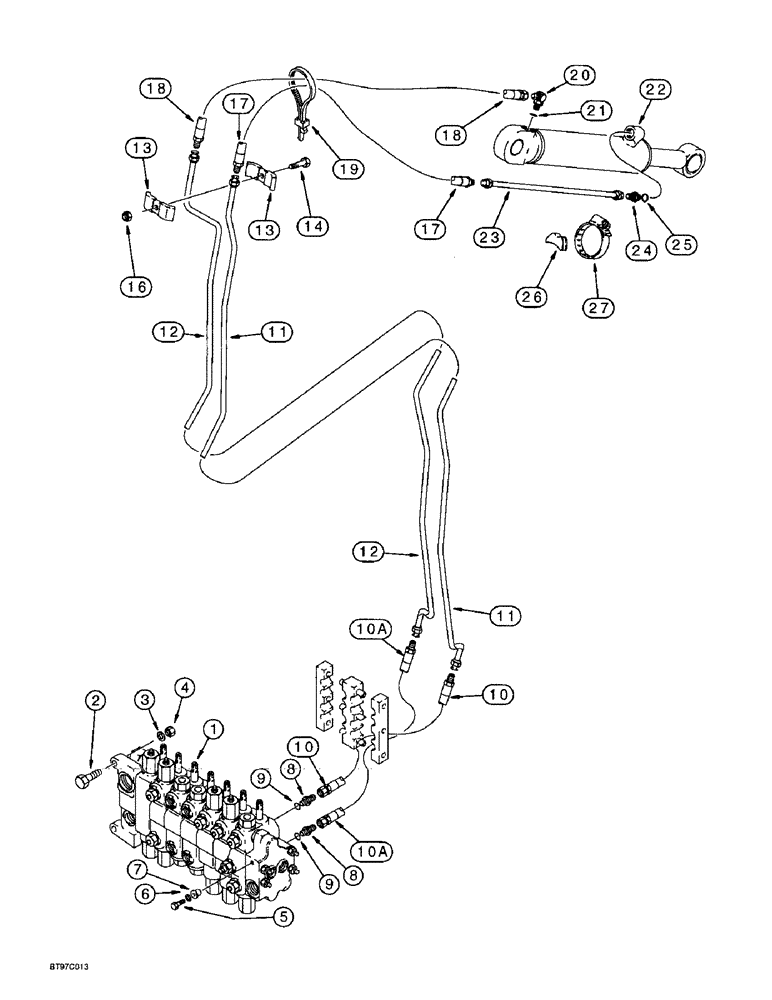

Запчасти Case 580SL (8-036) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figure 8-104 - 8-108

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12-1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, extendable dipper section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

193499A1

HOSE,15.88mm ID x 1295mm L

- 1295 mm (51 inch) long, includes hose guard and clamp, upper port control valve through swing tower to boom, see Figure 8-032, Ref. 11-19 for hose clamping

1шт.

10a

193117A1

HOSE,15.88mm ID x 1295mm L

- 1295 mm (51 inch) long, includes hose guard and clamp, lower port control valve through swing tower to boom, see Figure 8-032, Ref. 11-19 for hose clamping

1шт.

11

141809A1

TUBE,19.05 mm OD, 1657, 141 mm Length

HOSE, FLEXIBLE (Tube) - on boom, to extendable dipper cylinder rod end

1шт.

12

141811A1

TUBE,19.05 mm OD, 1642, 82 mm Length

HOSE, FLEXIBLE (Tube) - on boom, to extendable dipper cylinder closed end

1шт.

13

D40236

CLAMP

- tube, on boom, replaces D143846 clamp

2шт.

14

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

17

184617A1

HYDRAULIC HOSE,12.7mm ID x 850mm L

HOSE, HYDRAULIC, 850 mm (33-1/2") long, Incl hose guard and clamp, Extendable dipper cylinder rod end

1шт.

18

184616A1

HYDRAULIC HOSE,12.7mm ID x 700mm L

HOSE, HYDRAULIC - 700 mm (27-9/16") long, Incl hose guard and clamp, Extendable dipper cylinder closed end

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, extendable dipper cylinder closed end, Incl. Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

Assy, 76 (3) ID x 1068 mm (42 inch) stroke, Extendable dipper, Parts list Figure 8-170

1шт.

22

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

22

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

23

D140706

PIPE

TUBE - at extendable dipper cylinder rod end, replaces 136442A1 tube

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, extendable dipper cylinder rod end, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D38648

BLOCK

SPACER - rubber

1шт.

27

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

1шт.
