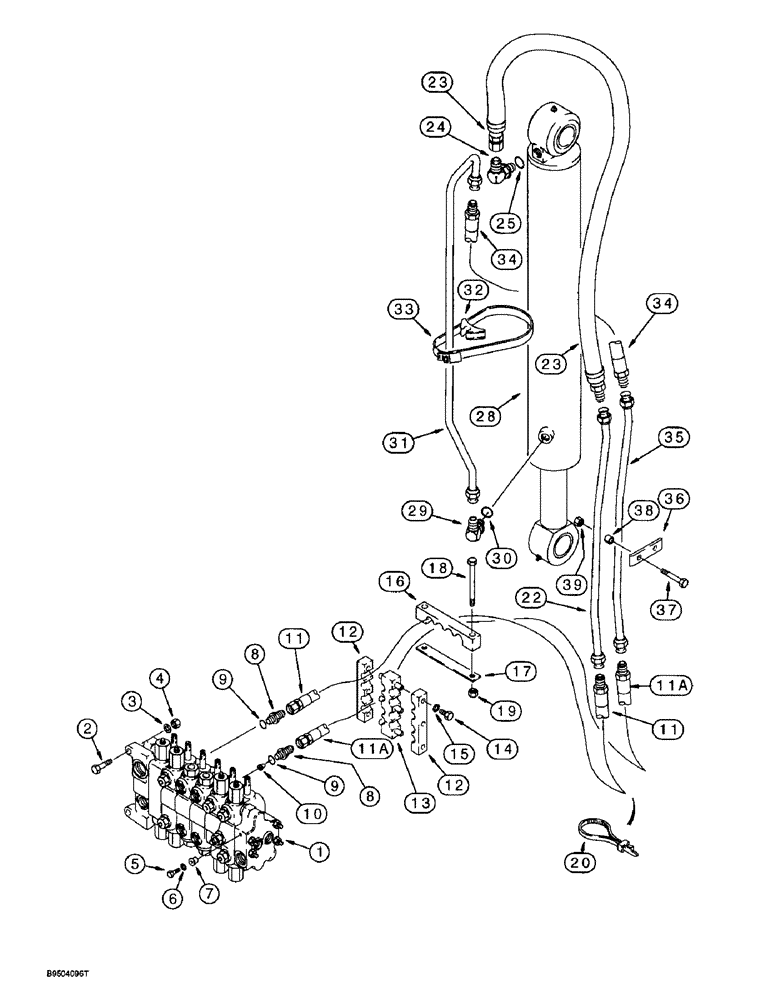

Запчасти Case 580SL (8-024) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figure 8-100 - 8-108

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12-1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, boom section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

D77182

FITTING

RESTRICTOR - check, boom section lower port, remove restrictor if equipped with boom lock valve circuit

1шт.

11

193499A1

HOSE,15.88mm ID x 1295mm L

- 1295 mm (51 inch) long, includes hose guard and clamp, upper port control valve through swing, Serial Range: tower-boom

1шт.

11a

193117A1

HOSE,15.88mm ID x 1295mm L

- 1295 mm (51 inch) long, includes hose guard and clamp, lower port control valve through swing, Serial Range: tower-boom

1шт.

12

143439A1

CLAMP

- Hose, outer

2шт.

13

176226A1

CLAMP

- Hose, Center

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8-1.25 x 25 mm

6шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

16

143882A1

FIXING BRACKET

CLAMP - hose, at swing tower

1шт.

17

132212A1

PLATE

- Hose clamp, at swing tower

1шт.

18

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

142120A1

HYD TUBE,19.05 mm OD, 726, 35 mm Length

TUBE - to boom cylinder closed end hose

1шт.

23

187845A1

HOSE,15.88mm ID x 1000mm L

- 1000 mm (39-3/8 inch) long, includes sleeve and banded clamps, boom cylinder closed end

1шт.

24

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, boom cylinder closed end, for models with boom lock valve, see Figure 8-076, Incl. Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

28

144200A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 842 mm (33-5/32 inch) stroke, boom, parts list Figure 8-160

1шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss, boom cylinder rod end, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

142815A1

HYD TUBE,19.05 mm OD, 881, 157 mm Length

HOSE, FLEXIBLE (Tube) - boom cylinder rod end

1шт.

32

D142787

SPACER

INSULATOR - rubber

1шт.

33

214-14104

HOSE CLAMP,155.45mm - 177.8mm

CLAMP, HOSE, , Adj., Tube to cylinder #104, 6.12/7.00 Type F Worm

1шт.

34

177634A1

HOSE,15.88mm ID x 440mm L

- 440 mm (17-3/8 inch) long, to boom cylinder rod end tube

1шт.

35

142122A1

HYD TUBE,19.05 mm OD, 775 mm Length

HOSE, FLEXIBLE (Tube) - to boom cylinder rod end hose

1шт.

36

133605A1

CLAMP

Boom cylinder tubes to inner LH side of boom

2шт.

37

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

38

132930A1

SPACER

- split

4шт.

39

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

4шт.
