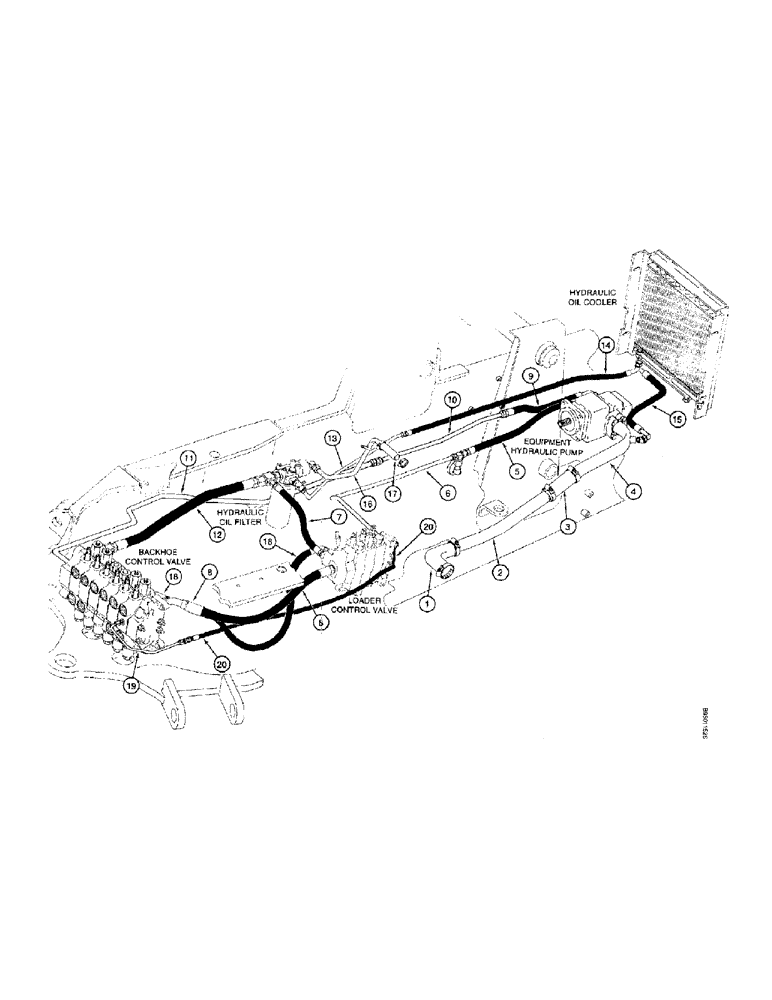

Запчасти Case 580SL (1-12) - PICTORIAL INDEX, EQUIPMENT HYDRAULICS, HYDRAULIC PUMP TO OIL FILTER, CONTROL VALVES & RETURN TO TANK (00) - PICTORIAL INDEX

1

Suction hose at hydraulic tank, PAGE 8-3

1шт.

2

Suction tube at hydraulic tank, PAGE 8-3

1шт.

3

Coupler hose, PAGE 8-3

1шт.

4

Suction tube at hydraulic equipment pump, PAGE 8-3

1шт.

5

Hose at large pump section port, PAGE 8-3

1шт.

6

Tube at tee to loader control valve inlet, PAGE 8-3

1шт.

7

Loader valve to filter hose, PAGE 8-5

1шт.

8

Hose at loader valve power beyond port to backhoe control valve inlet, PAGE 8-7

1шт.

9

Hose at small pump section outlet port, PAGE 8-7

1шт.

10

Tube between small pump section hose to tube at backhoe valve outlet section, PAGE 8-7

1шт.

11

Tube to inlet port on backhoe control valve outlet section, PAGE 8-7

1шт.

12

Return hose at backhoe control valve to filter, PAGE 8-9

1шт.

13

Oil filter to oil cooler tube, PAGE 8-9

1шт.

14

Hose at oil cooler, PAGE 8-9

1шт.

15

Oil cooler return hose, PAGE 8-9

1шт.

16

Return to tank tube, PAGE 8-9

1шт.

17

Return to tank hose, PAGE 8-9

1шт.

18

Swing supply hose at loader valve inlet section lower port to backhoe valve swing section, PAGE 8-39

1шт.

See Figures 8-40 through 8-43A for loader valve to backhoe valve tubes and hoses used on models with extendable dipper.

1шт.

19

Pilot tube at backhoe valve swing section center port to loader control valve inlet section, PAGE 8-39

1шт.

See Figures 8-40 through 8-43A for loader valve to backhoe valve tubes and hoses used on models with extendable dipper.

1шт.

20

Signal hose at backhoe control valve swing section to loader control valve inlet section, PAGE 8-39

1шт.

See Figures 8-40 through 8-43A for loader valve to backhoe valve tubes and hoses used on models with extendable dipper.

1шт.
