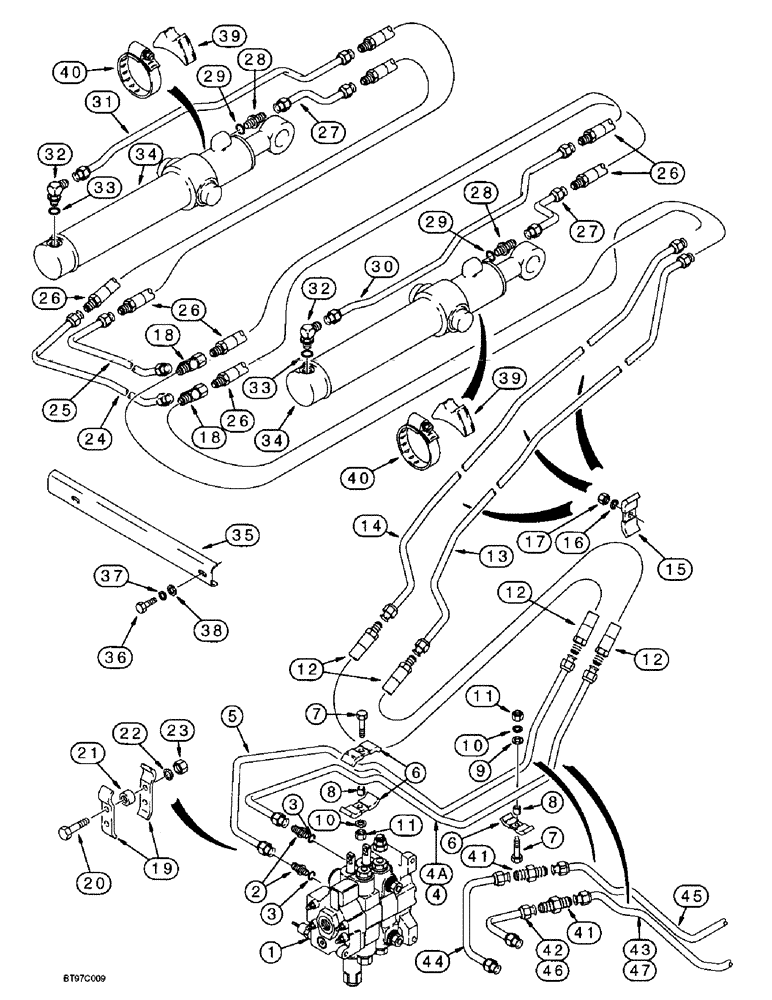

Запчасти Case 580SL (8-012) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figure 8-084 or 8-086, for mounting see Figure 9-002

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

220174A1

TUBE

- bucket section upper port, used in production, replaces 192138A1 production tube (for service order 221139A1 and 221141A1 tubes and 218-435 connector, Ref 41-43), Serial Range: -JJG0198504

1шт.

4a

232447A1

TUBE

- bucket section upper port, used in production (for service order 232934A1 and 232936A1 tubes and 218-435 connector, Ref 41, 46 and 47), Start Serial: JJG0198504

1шт.

5

220169A1

TUBE

- bucket section lower port, used in production, replaces 192136A1 production tube (for service order 221143A1 and 221146A1 tubes and 218-435 connector, Ref 41, 44 and 45)

1шт.

6

D138055

CLAMP

- tube

3шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10-1.5 x 40 mm

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- tube

2шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

138467A1

HOSE,12.7mm ID x 680mm L

- 680 mm (26-3/4 inch) long, at loader arm pivot

2шт.

13

192142A1

TUBE,15.88 mm OD

- lower, on right-hand lift arm, from bucket section upper port to closed end of bucket cylinders, Serial Range: -JJG0191027

1шт.

13

196817A1

TUBE

- lower, on right-hand lift arm, from bucket section upper port to closed end of bucket cyinders, Start Serial: JJG0191027

1шт.

14

192140A1

TUBE,15.88 mm OD

- upper, on right-hand lift arm, from bucket section lower port to bucket cylinder rod end, Serial Range: -JJG0191027

1шт.

14

196819A1

TUBE

- upper, on right-hand lift arm, from bucket section lower port to bucket cyinder rod end, Start Serial: JJG0191027

1шт.

15

D138055

CLAMP

- tube

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel, at upper lift frame crossover tube

2шт.

19

221733A1

SHIN

CLAMP - tube, attaches to Ref. 5 tube above and Ref. 27 tube on Figure 8-002

2шт.

20

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10-1.5 x 40 mm

2шт.

21

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- tube

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

192144A1

TUBE

- crossover, rear, upper lift frame tube to rod end of bucket cylinder, Serial Range: -JJG0191027

1шт.

24

196815A1

TUBE

(Tube), Crossover, Rear, Upper lift frame tube to rod end of bucket cylinder, Start Serial: JJG0191027

1шт.

25

192150A1

TUBE

- crossover, front, lower lift frame tube to bucket cylinder closed end, Serial Range: -JJG0191027

1шт.

25

196813A1

TUBE

(Tube), Crossover, Front, Lower lift frame tube to bucket cylinder closed end, Start Serial: JJG0191027

1шт.

26

136226A1

HOSE

- 840 mm (33 inch) long, at bucket cylinders

4шт.

27

192152A1

HYD TUBE,15.88 mm OD

TUBE - bucket cylinder rod end

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

192156A1

TUBE,15.88 mm OD

- right-hand bucket cylinder closed end

1шт.

31

192154A1

HYD TUBE,15.88 mm OD

TUBE - left-hand bucket cylinder closed end

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

CYLINDER ASSEMBLY - 76 (3) ID x 522 mm (20-9/16 inch) stroke, loader bucket, parts list Figure 8-148

2шт.

34

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

34

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

35

250648A1

PROTECTOR

GUARD - crossover tube, 3 mm thick, replaces 132724A1 4 mm thick guard

1шт.

36

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10-1.5 x 40 mm

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

39

L79937

SADDLE

SPACER - rubber, tube

2шт.

40

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

41

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, large hex, 7/8-14 inch flare

1-2шт.

42

221139A1

TUBE

- bucket section upper port at valve, Serial Range: -JJG0198504

1шт.

43

221141A1

TUBE

- bucket section upper port tube to hose, Serial Range: -JJG0198504

1шт.

44

221143A1

TUBE

- bucket section lower port at valve

1шт.

45

221146A1

TUBE

- bucket section lower port, Serial Range: tube-hose

1шт.

46

232934A1

TUBE,15.88 mm OD

- bucket section upper port at valve, Start Serial: JJG0198504

1шт.

47

232936A1

TUBE

- bucket section upper port tube to hose, Start Serial: JJG0198504

1шт.
