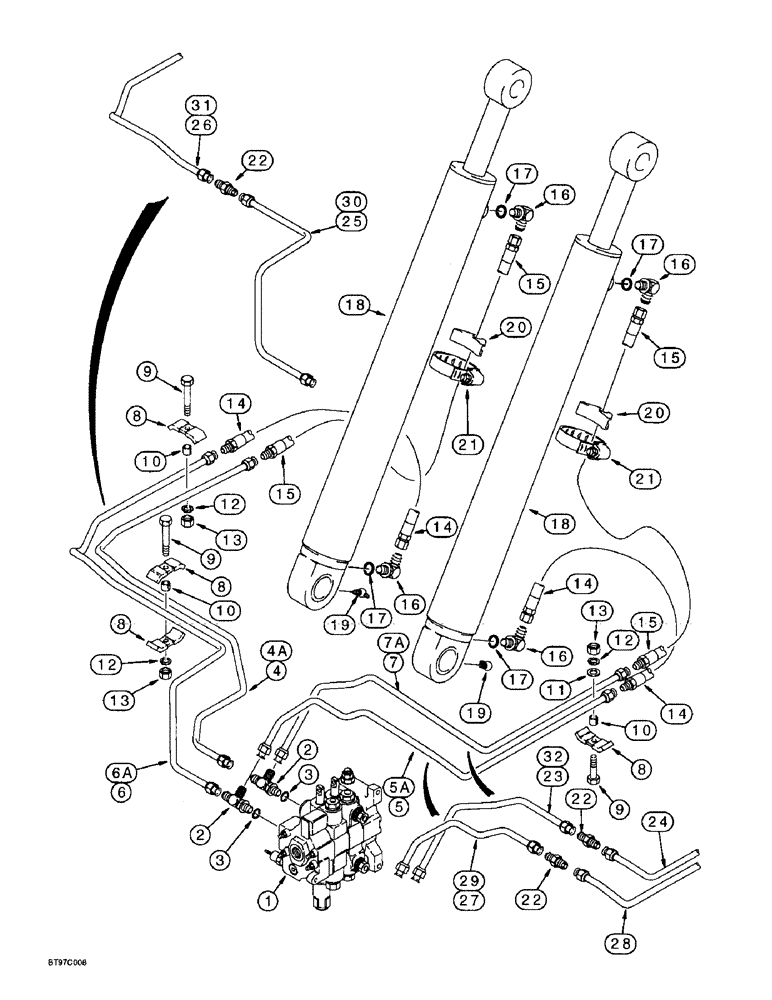

Запчасти Case 580SL (8-010) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figure 8-084 or 8-086

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

192134A1

TUBE,15.88 mm OD

- upper lift port to left-hand loader lift cylinder rod end, used in production (services itself, for service order 192134A1 tube, Ref. 4), models without ride control, see Figure 8-078 for parts used on models with ride control, Serial Range: -JJG0198504

1шт.

4a

225330A1

TUBE

- upper lift port to left-hand loader lift cylinder rod end, used in production (services itself, for service order 225330A1 tube, Ref. 4A), models without ride control, see Figure 8-078 for parts used on models with ride control JJG0198504 to

1шт.

5

192132A1

TUBE

- lower lift port to right-hand loader lift cylinder closed end, used in production (for service order 221156A1 and 221158A1 tubes and 218-435 connector, Ref. 22, 27 and 28), Serial Range: -JJG0198504

1шт.

5a

231984A1

TUBE

- lower lift port to right-hand loader lift cylinder closed end, used in production (for service order 221158A1 and 232929A1 tubes and 218-435 connector, Ref. 22, 28 and 29) JJG0198504 to

1шт.

6

192130A1

TUBE

- lower lift port to left-hand loader lift cylinder closed end, used in production (for service order 221152A1 & 221154A1 tubes & 218-435 connector, Ref 22, 25 and 26), models w/o ride control, see Figure 8-078 for parts used on models w/ride control, Serial Range: -JJG0198504

1шт.

6a

225332A1

TUBE

- lower lift port to left-hand loader lift cylinder closed end, used in production (for service order 232939A1 & 232941A1 tubes & 218-435 connector, Ref. 22, 30 & 31), models w/o ride control, see Figure 8-078 for parts used on models w/ride control JJG0198504 to

1шт.

7

192286A1

TUBE

- upper lift port to right-hand loader lift cylinder rod end, used in production (for service order 221160A1 and 221162A1 tubes and 218-435 connector, Ref 22-24), Serial Range: -JJG0198504

1шт.

7a

231982A1

TUBE

- upper lift port to right-hand loader lift cylinder rod end, used in production (for service order 221162A1 and 232931A1 tubes and 218-435 connector, Ref. 22, 24 and 32), Start Serial: JJG0198504

1шт.

8

D138055

CLAMP

- tube

4шт.

9

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10-1.5 x 40 mm

3шт.

10

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- tube

3шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

12

892-11010

LOCK WASHER,M10

3шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

14

187535A1

HOSE,12.7mm ID x 720mm L

- 720 mm (28-11/32 inch) long, lift cylinder closed end

2шт.

15

187536A1

HOSE,12.7mm ID x 1090mm L

- 1090 mm (43 inch) long, upper port of control valve to lift cylinder rod end

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 17

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

112366A2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 766 mm (30-1/8 inch) stroke, loader lift, parts list Figure 8-146

2шт.

18

384240A1R

REMAN-HYD CYLINDER

Reman for New PN 112366A2

2шт.

18

384240A1C

CORE-HYD CYLINDER

Return Number

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

20

D142787

SPACER

INSULATOR - rubber

2шт.

21

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

2шт.

22

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, large hex, 7/8-14 inch flare

1-3шт.

23

221160A1

TUBE

- upper lift port to right-hand loader lift cylinder, Serial Range: -JJG0198504

1шт.

24

221162A1

TUBE

- right-hand loader lift cylinder rod end, Serial Range: -JJG0198504

1шт.

25

221152A1

TUBE

- lower lift port to left-hand loader lift cylinder, models without ride control, see Figure 8-078 for parts used on models with ride control, Serial Range: -JJG0198504

1шт.

26

221154A1

TUBE

- left-hand loader lift cylinder closed end, models without ride control, see Figure 8-078 for parts used on models with ride control, Serial Range: -JJG0198504

1шт.

27

221156A1

TUBE

- lower lift port to right-hand loader lift cylinder, Serial Range: -JJG0198504

1шт.

28

221158A1

TUBE

- right-hand loader lift cylinder closed end, Serial Range: -JJG0198504

1шт.

29

232929A1

HYD TUBE

TUBE - lower lift port to right-hand loader lift cylinder, Start Serial: JJG0198504

1шт.

30

232939A1

TUBE

- lower lift port to left-hand loader lift cylinder, models without ride control, see Figure 8-078 for parts used on models with ride control, Start Serial: JJG0198504

1шт.

31

232941A1

TUBE

- left-hand loader lift cylinder closed end, models without ride control, see Figure 8-078 for parts used on models with ride control, Start Serial: JJG0198504

1шт.

32

232931A1

HYD TUBE

TUBE - upper lift port to right-hand loader lift cylinder, Start Serial: JJG0198504

1шт.
