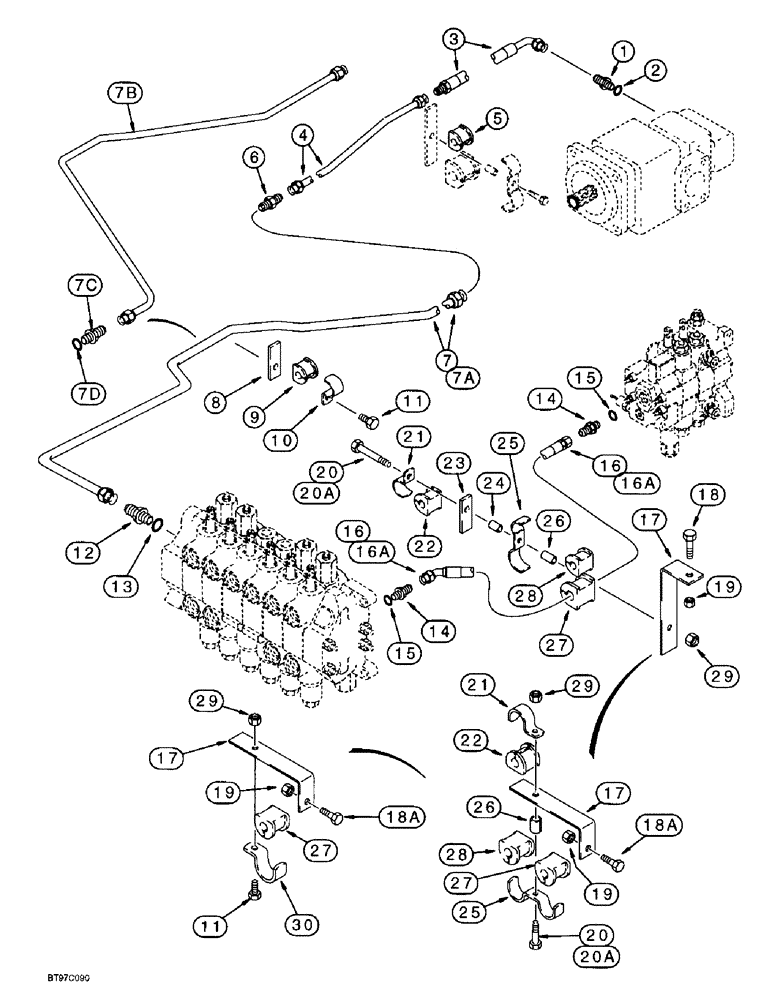

Запчасти Case 580SL (8-006) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP AND LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, small pump section outlet port, Includes: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

144216A1

HOSE,12.7mm ID x 800mm L

- 800 mm (31-1/2 inch) long, small pump section outlet port

1шт.

4

122127A1

TUBE,15.88 mm OD, 843, 52 mm Length

- small pump section hose to backhoe

1шт.

5

D143797

SHOCK ABSORBER

INSULATOR - 5/8 inch, small pump section tube, see Figure 8-002 Ref. 28-33 for hardware

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

1шт.

7

189861A1

TUBE

- to inlet port on backhoe control valve outlet section, models without extendable dipper, models with priority swing, if used

1шт.

7a

189863A1

TUBE

- to inlet port on backhoe control valve outlet section, models with extendable dipper, models with priority swing, if used

1шт.

7b

243790A1

TUBE,15.88 mm OD, OAL 1707.6MM

- swing supply, small pump tube to swing section inlet, models with non-priority swing, if used

1шт.

7c

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, used with 7B tube, Includes: Ref. 7D

1шт.

7d

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

115633A1

SUPPORT

PLATE - mounting

1шт.

9

D143797

SHOCK ABSORBER

INSULATOR - 5/8 inch, tube mounting

1шт.

10

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

- P-type, 3/4 inch ID, tube

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1-2шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

16

144240A1

HOSE,3/4" ID, 1028mm L

- 1028 mm (40-1/2 inch) long, loader valve power beyond port to backhoe control valve inlet, models with two spool loader control valve

1шт.

16a

144241A1

HOSE,19.05mm ID x 977mm L

- 977 mm (38-15/32 inch) long, loader valve power beyond port to backhoe control valve inlet, models with three spool loader control valve

1шт.

17

136008A1

SUPPORT

BRACKET - mounting, hose

1шт.

18

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12-1.75 x 45 mm, if used

1шт.

18a

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, if used

1шт.

19

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

20

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

- hex, 10-1.5 x 80 mm, if used

1шт.

20a

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

If used Hex, M10 x 50, 8.8

1шт.

21

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

- tube, if used

1шт.

22

144477A1

ISOLATOR

Rubber, Tube, if used

1шт.

23

115633A1

SUPPORT

PLATE - mounting, models without extendable dipper, if used

1шт.

24

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- split, models without extendable dipper, if used

1шт.

25

D143422

SHIN

CLAMP - double tube

1шт.

26

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- split, 22 mm (7/8 inch) long

1шт.

27

144477A1

ISOLATOR

Rubber, Power beyond hose

1шт.

28

D143797

SHOCK ABSORBER

INSULATOR - 5/8 inch, tube, swing signal hose, see Figure 8-038 - 8-043A for hose on models without auxiliary hydraulics and Figure 8-044 or 8-054 on models with auxiliary hydraulics

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

30

144479A1

CLAMP

- isolation, if used

1шт.
