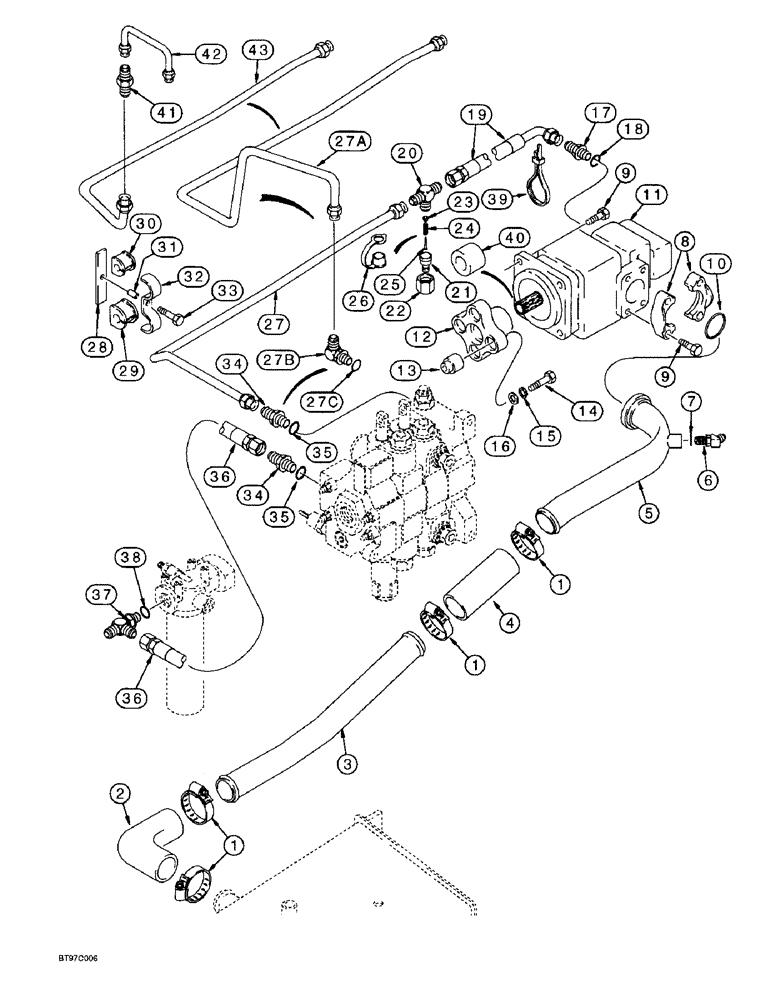

Запчасти Case 580SL (8-002) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO LOADER CONTROL VALVE & LOADER VALVE TO FILTER (08) - HYDRAULICS

1

259044A1

CLAMP

- tube, replaces 214-1436 clamp used on some models

4шт.

2

282497A1

HYDRAULIC HOSE,51.00 mm ID x 102.00 mm, SAE 30R7

- Suction, at hydraulic tank, Replaces 175273A1 hose 51.00 mm ID x 102.00 mm, SAE 30R7

1шт.

3

131586A1

TUBE

- suction

1шт.

4

282496A1

HOSE,51.00 mm ID x 152.40 mm, SAE 30R6

- Coupler, Replaces 135556A1 hose 51.00 mm ID x 152.40 mm, SAE 30R6

1шт.

5

121817A1

HYD TUBE

TUBE - suction, at hydraulic equipment pump

1шт.

6

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, to cooler return hose

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

A14141

FLANGE

- split, 2 inch

2шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

121124A2

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic equipment, with 15 teeth shaft gear set, parts list Figure 8-082, replaces 121124A1 pump, 121124A2 pump used with 253541A1 flex coupling and Ref. 40 coupler seal, if used

1шт.

11

257954A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic equipment, with 17 teeth shaft gear set, parts list Figure 8-082, used with 257948A1 flex coupling, if used; No Longer Available, Order 87433897 Pump, 87437920 Coupling, 87429360 Adapter Plate

1шт.

NLB SB 002 2004 Before Installing, N.A. Only

1шт.

11

87433897R

REMAN-HYD PUMP

580SL - LOADER BACKHOE - Reman For New P/N 257954A1,See Service Bulletin

1шт.

11

87433897C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

253541A1

COUPLING,15 Teeth

- flex, 15 teeth, with steel plug, replaces D136083 coupling, used with 121124A1 or 121124A2 pump, if used, Includes: Ref. 12 and 13

1шт.

12

257948A1

FLEXIBLE COUPLING,Flex, 17T

- flex, 17 teeth, with steel plug, used with 257954A1 pump, if used, Includes: Ref. 12 and 13

1шт.

13

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

- coupling

4шт.

14

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- special, hardened

4шт.

17

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss, Incl. Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

19

144215A1

HOSE,19.05mm ID x 576mm L

- 576 mm (22-11/16 inch) long, large pump section port

1шт.

20

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

- 1-1/16-12 flare branch x 1-5/16-12 inch flare x flare, pump outlet hose to loader valve inlet tube

1шт.

21

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect, Includes Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - coupling

1шт.

Per note in GPS: FEMALE COUPLING FOR RUNNING CHECK, ORDER FROM SERVICE TOOL #213165. (Mates to the quick disconnect coupling Item 21). DJS - TSG 5/2/00.

1шт.

22

425-1120

NUT,1 1/4"-12, G5

- hex, 1-1/4 inch NF

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - coupling

1шт.

25

NSS

NOT SOLD SEPARAT

POPPET - coupling

1шт.

26

H434163

DUST CAP

CAP - dust, coupler

1шт.

27

122125A1

TUBE

- tee to loader control valve inlet, see Figure 8-012 Ref. 19-23 for tube clamps near loader valve, used with Ref 34 adapter, if used

1шт.

27a

229341A1

TUBE

- tee to loader control valve inlet, see Figure 8-012 Ref.19-23 for tube clamps near loader valve, used w/ Ref. 27B elbow, used in production (for service order 218-739 connector, 232913A1 tube and 232916A1 tube, Ref. 41-43)

1шт.

229341A1 tube is now serviceable, if used

1шт.

27b

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, if used, Incl. Ref. 27 C

1шт.

27c

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

28

115507A1

SUPPORT

PLATE - mounting

1шт.

29

D67297

BLOCK

INSULATOR - rubber, tube

1шт.

30

REF

INSTRUCTION

INSULATOR - tube, small pump section tube to backhoe valve, see Figure 8-006, Ref. 4 and 5, for tube and insulator

1шт.

31

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- split, 22 mm (7/8 inch) long

1шт.

32

D143422

SHIN

CLAMP - double tube

1шт.

33

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

34

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, at loader valve inlet and outlet ports, Incl. Ref. 35

1-2шт.

35

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

36

144227A1

HOSE

- 520 mm (20-15/32 inch) long, loader valve to filter, models without ride control, see Figure 8-078 for parts used on models with ride control

1шт.

37

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 1-5/16-12 inch flare branch x flare x adj O-ring boss, loader valve to hydraulic oil filter and filter to backhoe control valve, Includes: Ref. 38

1шт.

38

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, if used

1шт.

40

236842A1

SEAL

- coupler, used with 121124A2 pump only, if used

1шт.

41

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR - straight, 1-5/16-12 inch flare, if used

1шт.

42

232913A1

TUBE,25.4 mm OD

- at loader valve, used with Ref 27B at loader valve, if used

1шт.

43

232916A1

TUBE

- pump to loader valve, if used

1шт.
