(7-03A) - 114367A4 OR 114367A5 REAR DRIVE AXLE, DIFFERENTIAL BRAKE

Запчасти Case 580SL (7-03A) - 114367A4 OR 114367A5 REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES

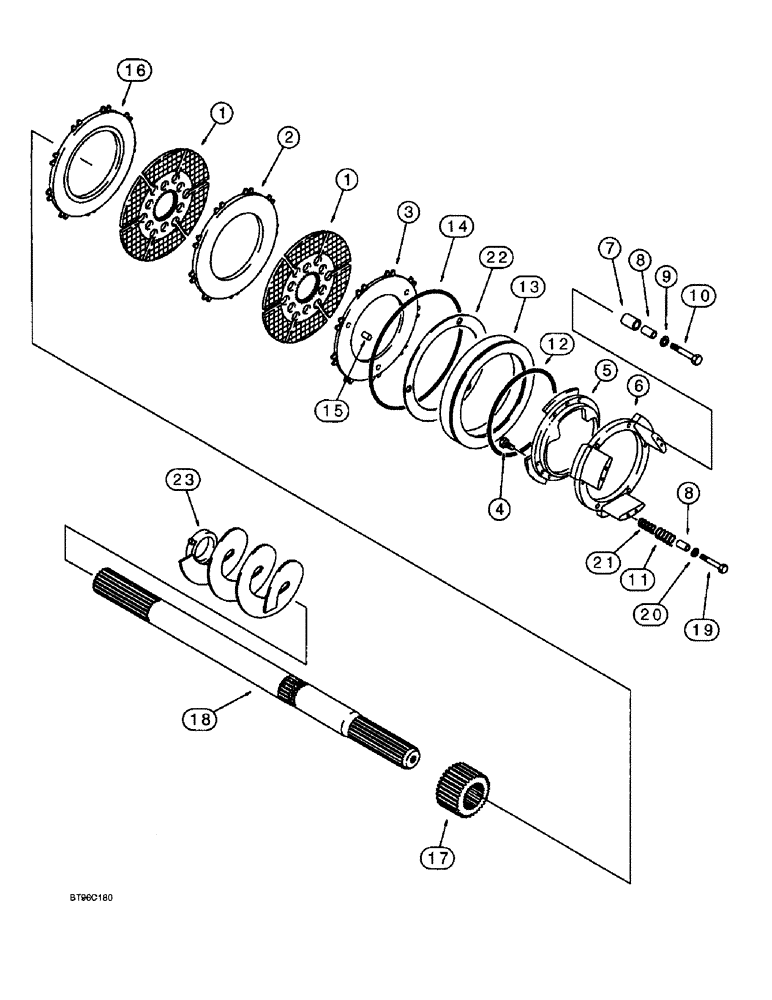

Схема запчастей Case 580SL - (7-03A) - 114367A4 OR 114367A5 REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES
4
8
3
19
22
1
11
14
16
12
7
21
10
20
8
13
1
17
6
9
23
5
15
2
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

114367A4

AXLE, REAR

AXLE ASSEMBLY - rear drive, Includes: Ref. 1 - 25 and parts in Figures 6-53A - 6-60, 7-03A and 7-04, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 114367A5 axle

1шт.

See Figure 7-02 for 114367A2 or 114367A3 rear drive axle differential brake.

1шт.

114367A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, Includes: Ref. 1 - 25 and parts in Figures 6-53A - 6-60, 7-03A and 7-05A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50

1шт.

See Figure 7-02 for 114367A2 or 114367A3 rear drive axle differential brake.

1шт.

1

237021A1

LARGE PLATE

DISC - brake

4шт.

2

237022A1

LARGE PLATE

PLATE - friction, inner

2шт.

3

237023A1

LARGE PLATE

PLATE - piston

2шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 16, 8.8

18шт.

5

190461A1

FLANGE

- inner

2шт.

6

190460A1

FLANGE

- outer

2шт.

7

190449A1

SPLIT PIN

SPACER - split, 18 x 20 mm, no longer sold separately

6шт.

Part of Brake Self-Adjuster Kit, P/N 248071A1

1шт.

8

190496A1

BUSHING

- spacer, no longer sold separately

12шт.

Part of Brake Self-Adjuster Kit, P/N 248071A1

1шт.

9

190450A1

WASHER

- flat, special

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

- outer

6шт.

12

190492A1

O-RING,6.984" ID x 7.262" OD x 0.139"

- small

2шт.

13

190502A1

PISTON

- brake

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

- large

2шт.

15

190447A1

SPLIT PIN

PIN - split, 6 x 14 mm

6шт.

16

237024A1

LARGE PLATE

PLATE - friction, outer

2шт.

17

190453A1

SLEEVE

- splined

2шт.

18

190470A1

SHAFT

- splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT - hex socket, 6-1.0 x 35 mm

6шт.

20

190500A1

COVER

- spring

6шт.

21

237025A1

SPRING

- inner

6шт.

22

190504A1

SHIM

GASKET - piston

2шт.

23

192424A1

AUGER

- oil, right-hand, includes weld-on clamp and bolt, Includes: Ref. 25

1шт.

24

192549A1

AUGER

- oil, left-hand, includes weld-on clamp and bolt, not shown, Includes: Ref. 25

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 20 mm, class 12.9, not shown, right-hand or left-hand auger

2шт.

248071A1

SERVICE KIT

KIT - brake self-adjuster, Includes: Ref. 7 and 8, spacer and bushing, plus an instruction sheet

1шт.
