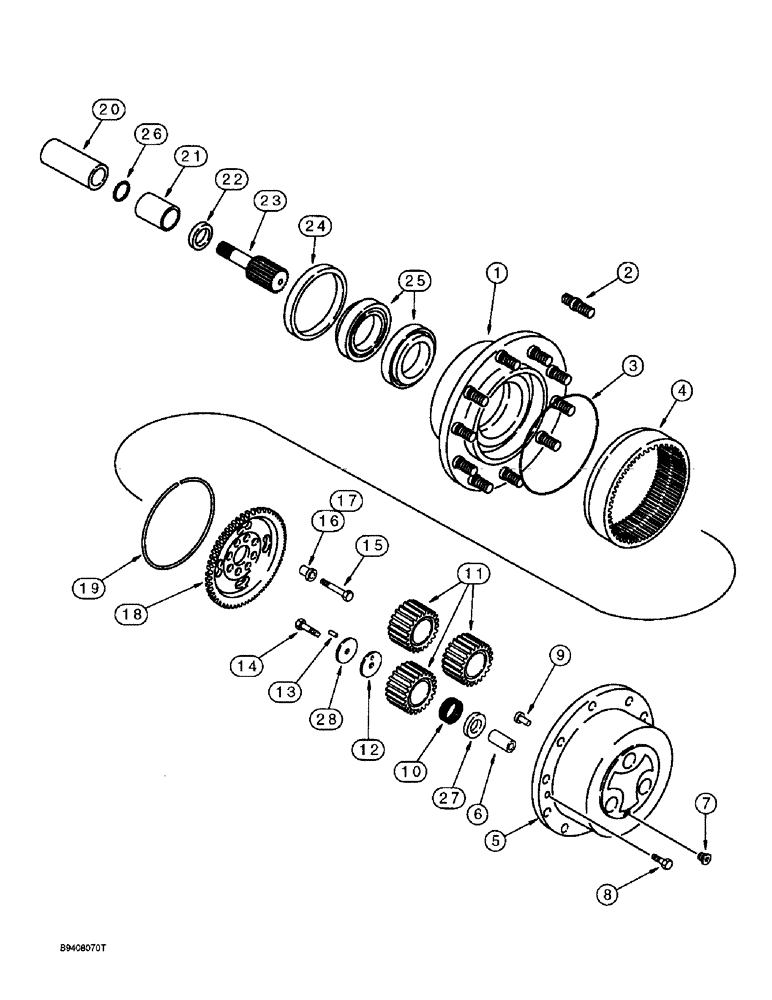

Запчасти Case 580SL (6-60) - REAR DRIVE AXLE, PLANETARY (06) - POWER TRAIN

114367A2

AXLE, REAR

AXLE ASSEMBLY - rear drive, Carraro No. 132884, Includes: Ref. 1 - 28 and parts in Figure 6-52, 6-54 - 6-58, 7-02 and 7-04, no longer available, order 114367A5 axle

1шт.

114367A3

AXLE, REAR

AXLE ASSEMBLY - rear drive, Carraro No. 134170, Includes: Ref. 1 - 28 and parts in Figures 6-53A - 6-58, 7-02 and 7-04, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 114367A5 axle

1шт.

114367A4

AXLE, REAR

AXLE ASSEMBLY - rear drive, Includes: Ref. 1 - 28 and parts in Figures 6-53A - 6-58, 7-03A and 7-04, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 114367A5 axle

1шт.

114367A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, Includes: Ref. 1 - 28 and parts in Figures 6-53A - 6-58, 7-03A and 7-5A, also includes 187562A2 bracket, Ref.18 on Figure 6-50

1шт.

1

175974A1

HUB

ASSEMBLY - wheel attaching, Includes: Ref. 2

2шт.

2

D142986

STUD,88mm L

- special, without flanged collar

20шт.

REF: #2 - STUD - IF LOOKING FOR A STUD WITH A COLLAR THE PART NUMBER IS 196090A1 (PER CARRARO TECH).

1шт.

3

P2930467

SEAL,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

O-RING - sealing

2шт.

4

175976A1

PINION

GEAR - ring, planetary

2шт.

5

175977A1

CARRIER

ASSEMBLY - planetary, Includes: Ref. 6

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pinion gear

6шт.

7

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain; Includes 238-6121 O-Ring

2шт.

8

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Planetary cover plate Hex Soc Flat Hd, M8 x 20, 10.9

4шт.

9

K395093

HEADED PIN,12mm OD x 15mm L

PIN - locking, planetary carrier

2шт.

10

175978A1

NEEDLE BEARING

BEARING - needle (package of 10 needles) (168 needles required) planetary gear

17шт.

11

175979A1

SUN GEAR

GEAR - pinion, planetary

6шт.

12

175980A1

THRUST WASHER

WASHER - thrust, pinion gear

6шт.

13

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

PIN, Package Of 10, Used As Pins, 6 Required; Replaces (6) 175981A1 Pin

1шт.

14

175982A1

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 10.9

BOLT - hex, self-locking, special, 10-1.25 x 50 mm, class 10.9

6шт.

15

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special, Self-locking Hex, M14 x 65, Cl 10.9

16шт.

16

107072A1

CENTERING RING

BUSHING - centering, 24 mm OD; If Used

2шт.

17

107071A1

BUSHING

- Centering, 20 mm OD

14-16шт.

18

175983A1

CROWN WHEEL

HUB - ring gear; Uses (2) 24 mm OD Bushings, Ref 16 and (14) 20 mm OD Bushings, Ref 17; Used With 222691A1 & 175953A1 Axle Trumphet Housings On Figure 6-53A

2шт.

18

295580A1

PINION CARRIER

Ring Gear; With 4 Threaded Puller Holes; Uses (16) 20 mm OD Bushings, Ref 17; No Longer Available, Order 310492A1

2шт.

18

310492A1

PINION CARRIER

Ring Gear; With 2 Threaded Puller Holes; Uses (16) 20 mm OD Bushings, Ref 17; No Longer Available, Order 85817684

2шт.

18

85817684

GEAR

Ring Gear; Uses (16) 20 mm OD Bushings, Ref 17

2шт.

19

175984A1

RING, LOCKING

RING - lock

2шт.

20

175985A1

COUPLING

- drive

2шт.

21

100532A1

BUSHING

- drive

2шт.

22

175987A1

OIL SEAL

- oil

2шт.

23

175986A1

SHAFT

- drive

2шт.

24

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

Oil, 149 x 176 x 16

2шт.

25

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

26

175988A1

CIRCLIP

RING - lock

2шт.

27

175989A1

THRUST WASHER

WASHER - thrust, pinion gear, outer

6шт.

28

175990A1

THRUST WASHER

WASHER - thrust, pinion gear, inner

6шт.
