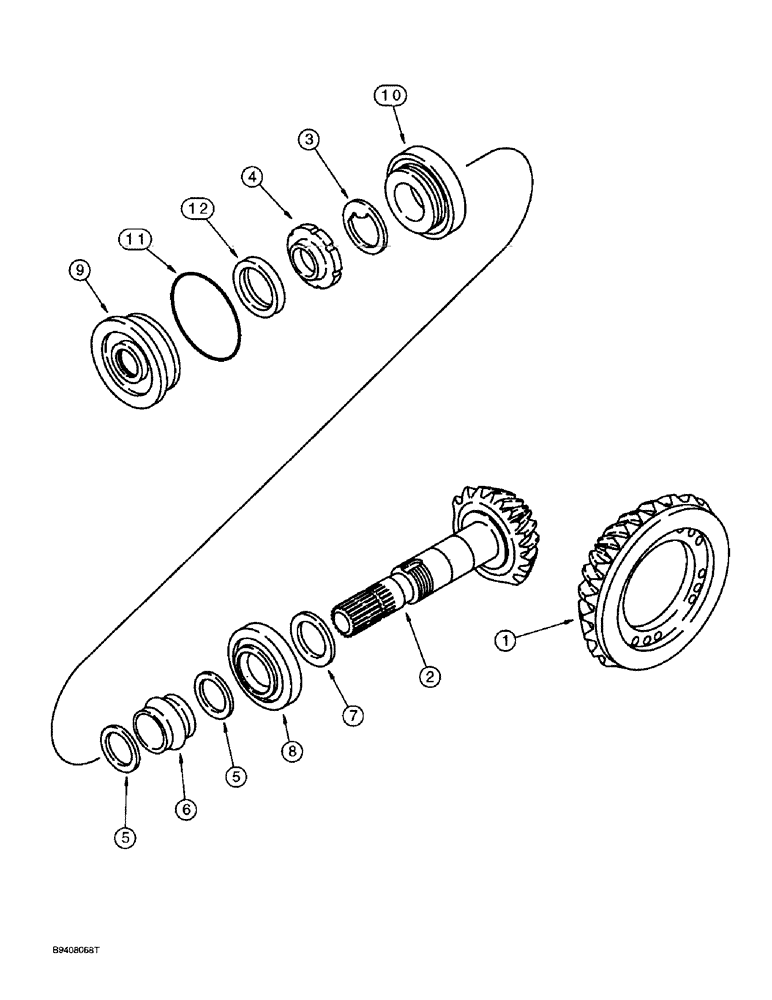

Запчасти Case 580SL (6-56) - REAR DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

114367A2

AXLE, REAR

AXLE ASSEMBLY - rear drive, Carraro No. 132884, Includes: Ref. 1 - 12 and parts in Figures 6-52, 6-54, 6-58, 6-60, 7-02 and 7-04, no longer available, order 114367A5 axle

1шт.

114367A3

AXLE, REAR

AXLE ASSEMBLY - rear drive, Carraro No. 134170, Includes: Ref. 1 - 12 and parts in Figures 6-53A, 6-54, 6-58, 6-60, 7-02 and 7-04, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 114367A5 axle

1шт.

114367A4

AXLE, REAR

AXLE ASSEMBLY - rear drive, Includes: Ref. 1 - 12 and parts in Figures 6-53A, 6-54, 6-58, 6-60, 7-03A and 7-04, also includes 187562A2 bracket, Ref.18 on Figure 6-50, no longer available, order 114367A5 axle

1шт.

114367A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, Includes: Ref. 1 - 12 and parts in Figures 6-53A, 6-54, 6-58, 6-60, 7-03A and 7-05A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50

1шт.

175956A1

GEAR-SET

GEAR - set, ring and pinion, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

K261065

LOCK WASHER

- special

1шт.

4

K261014

RING NUT,M40 x 1.5

RING - nut, pinion gear

1шт.

5

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

- spacer

2шт.

6

175957A1

SPACER

- collapsible

1шт.

7

190506A1

SHIM,2.5mm Thk

(0.098") 2.5mm Thk

1шт.

7

190508A1

SHIM,2.6mm Thk

(0.102") 2.6mm Thk

1шт.

7

190509A1

SHIM,2.7mm Thk

(0.106") 2.7mm Thk

1шт.

7

190510A1

SHIM,2.8mm Thk

(0.110") 2.8mm Thk

1шт.

7

190511A1

SHIM,2.9mm Thk

(0.114") 2.9mm Thk

1шт.

7

190512A1

SHIM,3.0mm Thk

(0.118") 3.0mm Thk

1шт.

7

190513A1

SHIM,3.1mm Thk

(0.122") 3.1mm Thk

1шт.

7

190514A1

SHIM,3.2mm Thk

(0.125") 3.2mm Thk

1шт.

7

190515A1

SHIM,3.3mm Thk

(0.129") 3.3mm Thk

1шт.

7

190516A1

SHIM,3.4mm Thk

(0.133") 3.4mm Thk

1шт.

8

P1139855

BEARING

- pinion gear, Timken

1шт.

Ref. item 8, P1139855 bearing, should be Timken. If it is NTN, the set up tool may not fit the I.D. by TSG bb 3/19/98

1шт.

9

128570A1

FLANGE

COVER - differential

1шт.

10

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

1шт.

11

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

Cover -152, 70 Duro, 3.237" ID x .103" Thk

1шт.

12

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil

1шт.
