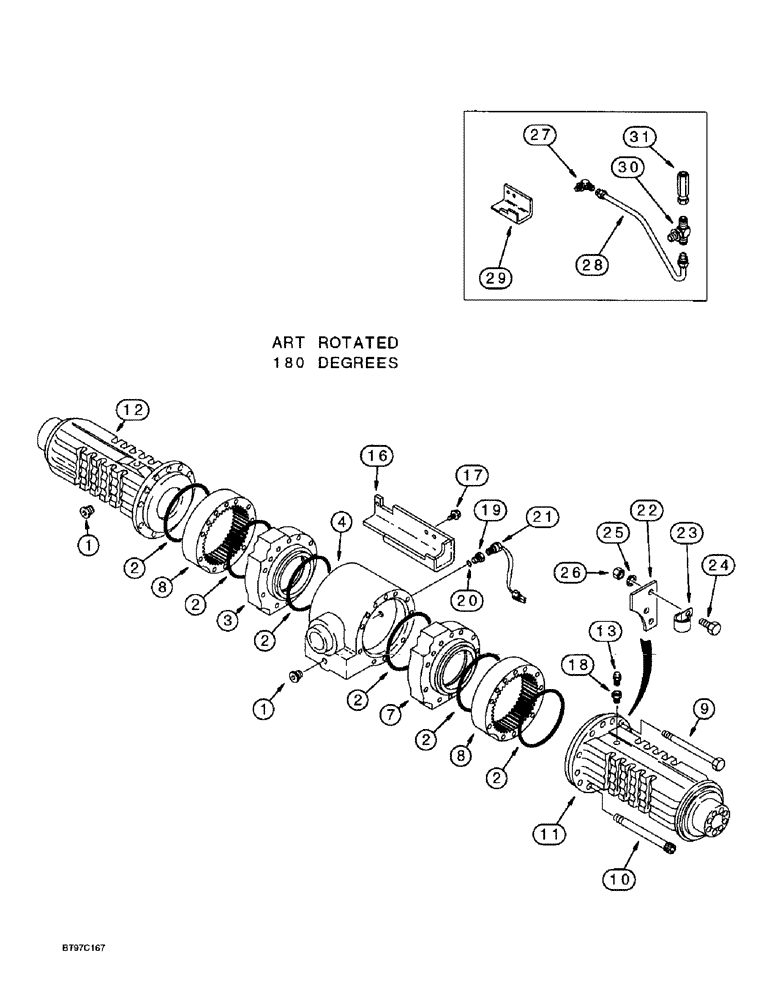

Запчасти Case 580SL (6-52) - 114367A2 REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

114367A2

AXLE, REAR

AXLE ASSEMBLY - rear drive, Carraro No. 132884, Includes: Ref. 1 - 26 and parts in Figures 6-54 - 6-60, 7-02 and 7-04, no longer available, order 114367A5 rear drive axle on Figure 6-53A

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

PLUG drain, uses 238-6121 O-ring

2шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

6шт.

3

190457A1

HOUSING

CYLINDER - brake, right hand

1шт.

4

175951A1

HOUSING

- center, axle

1шт.

7

190458A1

HOUSING

CYLINDER - brake, left hand, uses a D142898 plug w/loctite, under the breather

1шт.

8

190459A1

FLANGE

SLEEVE - gear housing

2шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

BOLT - hex socket, 12-1.75 x 130 mm

4шт.

11

175952A1

HOUSING

- axle, left-hand side

1шт.

12

175953A1

HOUSING

- axle, right-hand side

1шт.

13

1966149C1

BREATHER

- axle housing

1шт.

16

190497A1

GUARD

BRACKET - center axle housing

1шт.

17

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

Replaces 190446A1 bolt, if used Hex, M14 x 30, 8.8, Full Thd

2шт.

17

30237R1

BOLT,Hex, M18 x 2.5 x 40mm, Class 8.8

- special, 18 x 40 mm, if used

2шт.

18

E135750

AXLE PIN

EXTENSION - breather

1шт.

19

193044A1

ADAPTER

- oil temperature switch to center housing

1шт.

20

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Adapter to center housing -119, 70 Duro, .924" ID x .103" Thk

1шт.

21

192481A1

SENSOR

SWITCH - oil temperature, may have one or two wires

1шт.

22

193285A1

BRACKET

- J-clamp mounting, mounts to left-hand axle housing with existing hardware

1шт.

23

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

- J-type, 5/8 inch ID, oil temperature switch, replaces D147383 clamp

1шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

J-clamp to bracket Hex, M10 x 20, 8.8, Full Thd

1шт.

25

892-11010

LOCK WASHER,M10

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

259050A1

SET OF PARTS

KIT - lube tube, center axle housing, if used, Includes: Ref. 27 - 31

1шт.

27

115229A1

ELBOW

- 90 degree, special, lube tube kit

1шт.

28

190491A1

TUBE

- axle lube kit

1шт.

29

190497A1

GUARD

BRACKET - center axle housing, if stock is exhausted, may order 196064A1 bracket, lube tube kit

1шт.

30

259049A1

FITTING

TEE - special, lube tube kit

1шт.

31

278986A1

NUT

- swivel, special, oil temperature switch, lube tube kit

1шт.
